System Diagrams

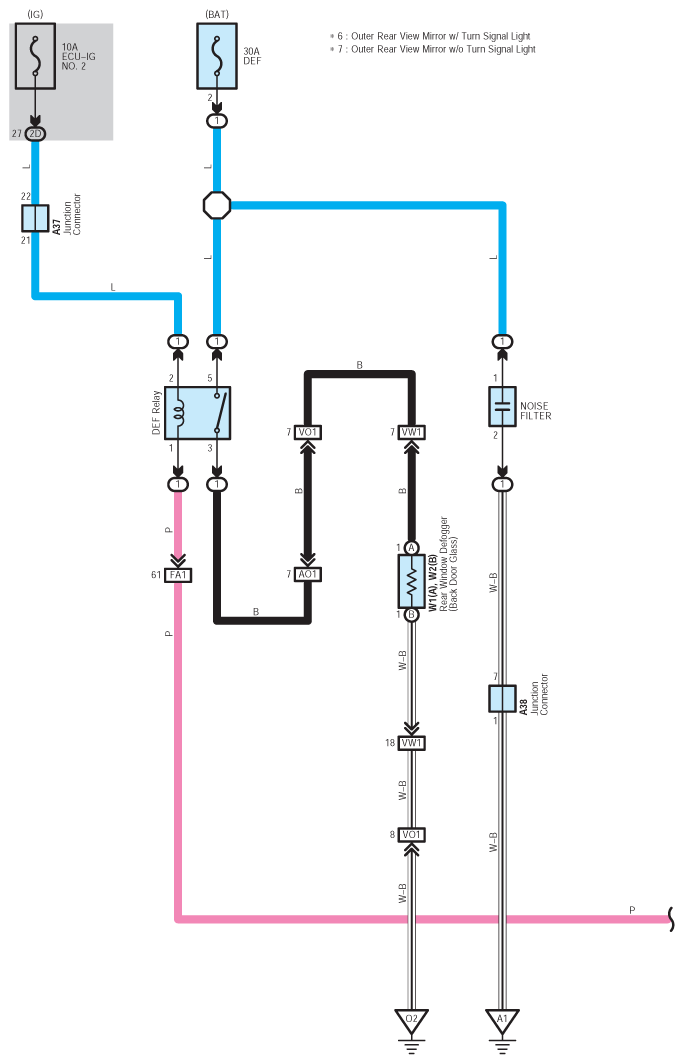

Fig 1: Mirror Heater, Rear Window Defogger (1 Of 5)
G12198573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

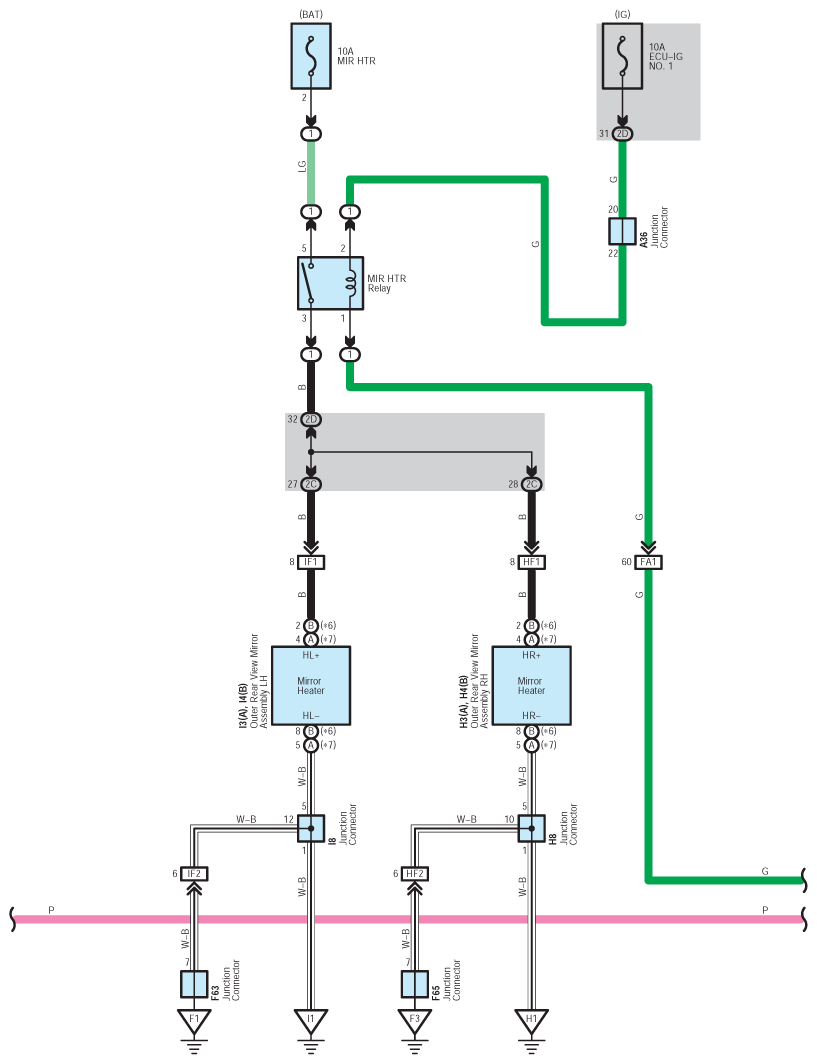

Fig 2: Mirror Heater, Rear Window Defogger (2 Of 5)
G12198574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

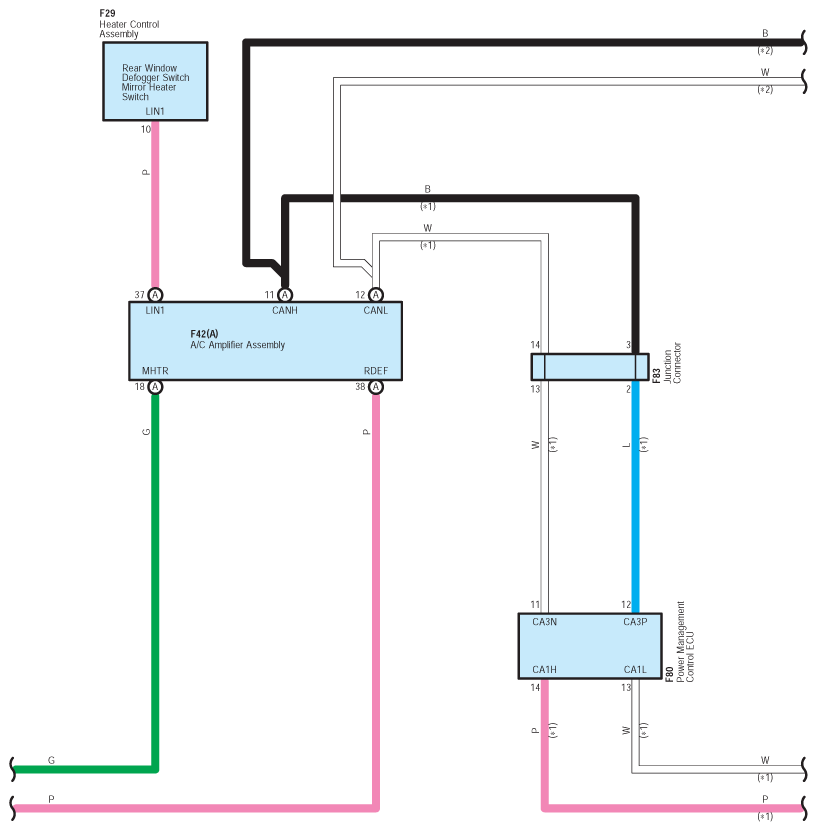

Fig 3: Mirror Heater, Rear Window Defogger (3 Of 5)
G12198575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

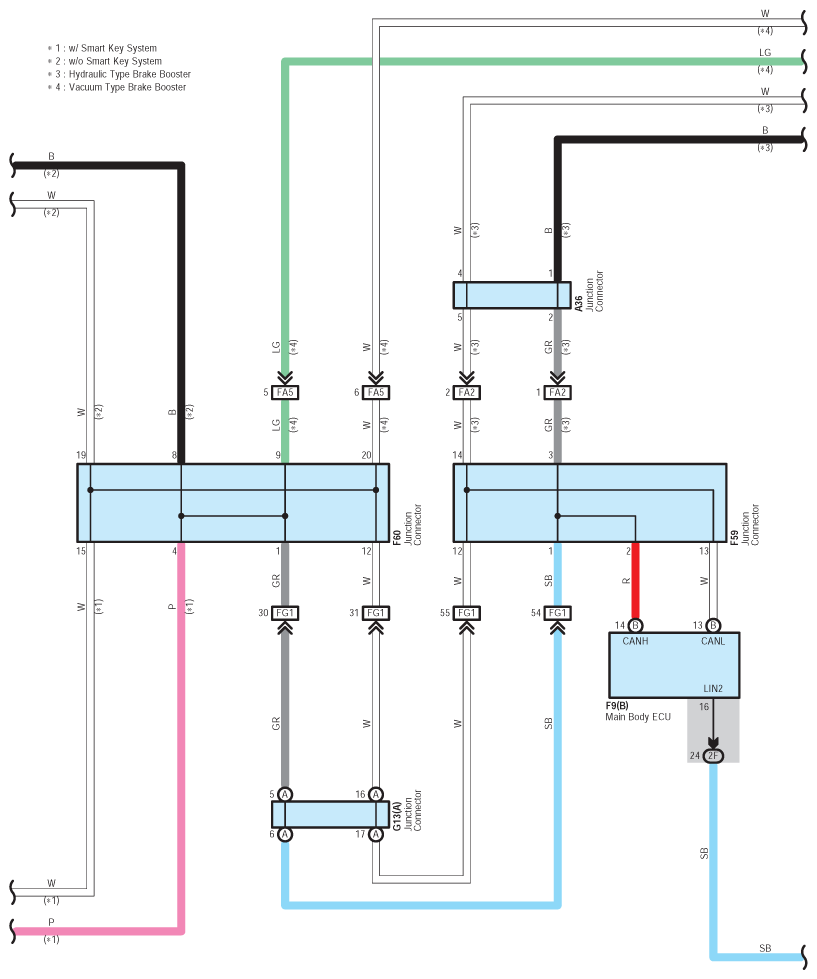

Fig 4: Mirror Heater, Rear Window Defogger (4 Of 5)
G12198576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

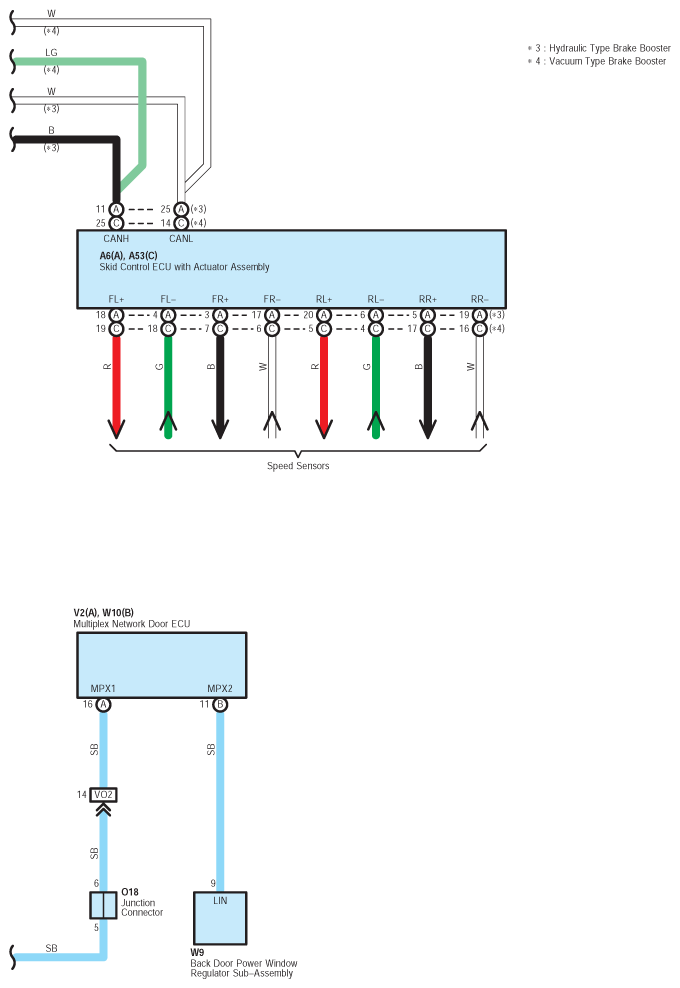

Fig 5: Mirror Heater, Rear Window Defogger (5 Of 5)
G12198577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
