System Diagrams

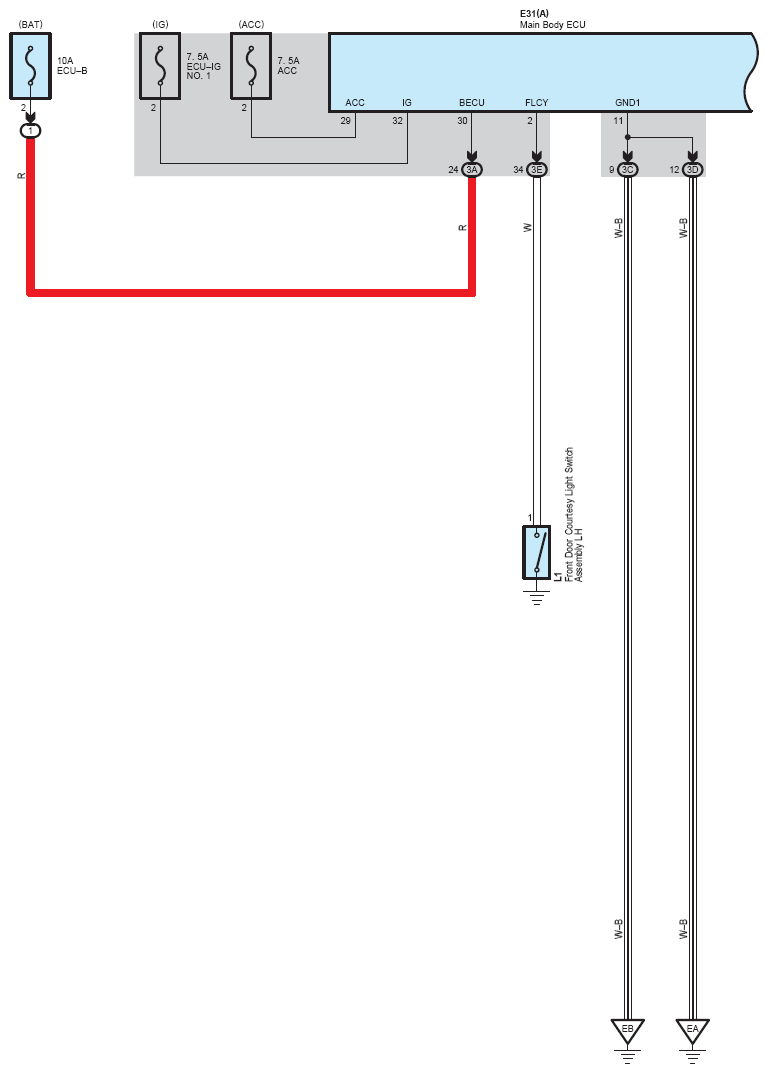

Fig 1: Key Reminder (W/O Smart Key System) (1 Of 3)
G12199600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Key Reminder (W/O Smart Key System) (2 Of 3)
G12199601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

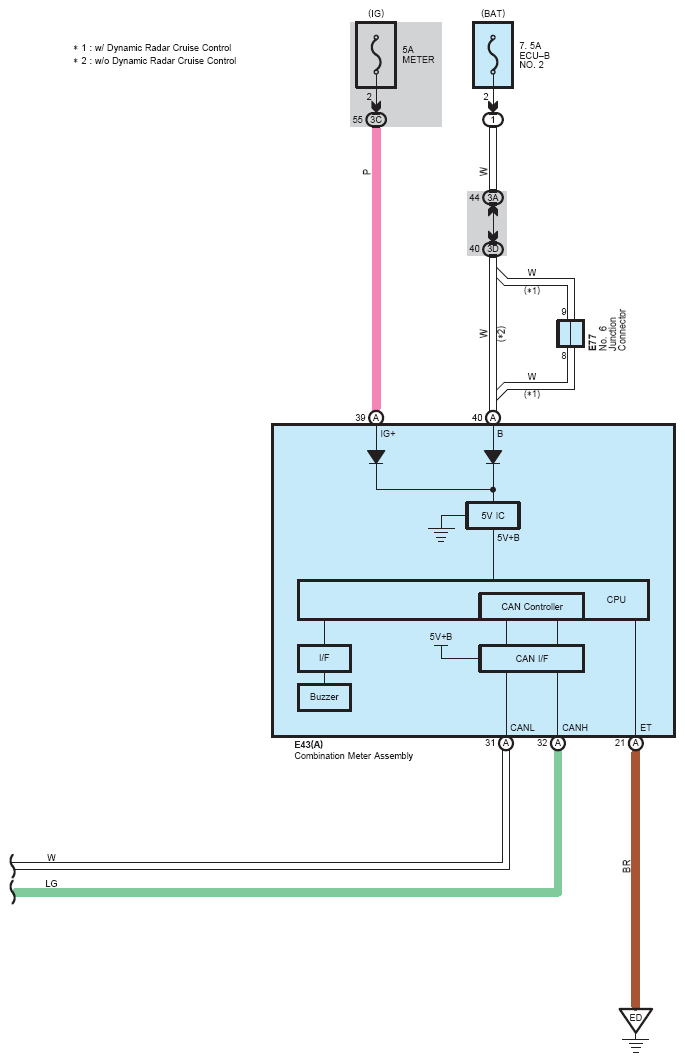

Fig 3: Key Reminder (W/O Smart Key System) (3 Of 3)
G12199602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
