System Diagrams

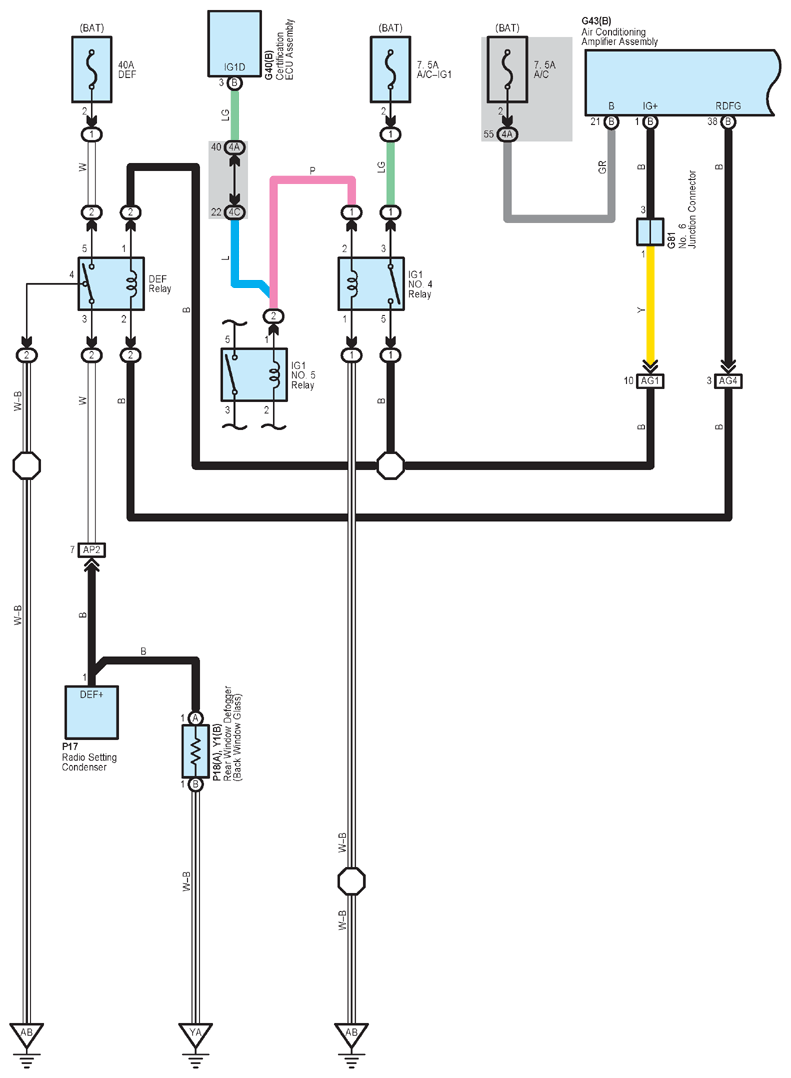

Fig 1: Mirror Heater, Rear Window Defogger (1 Of 5)
G12204432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

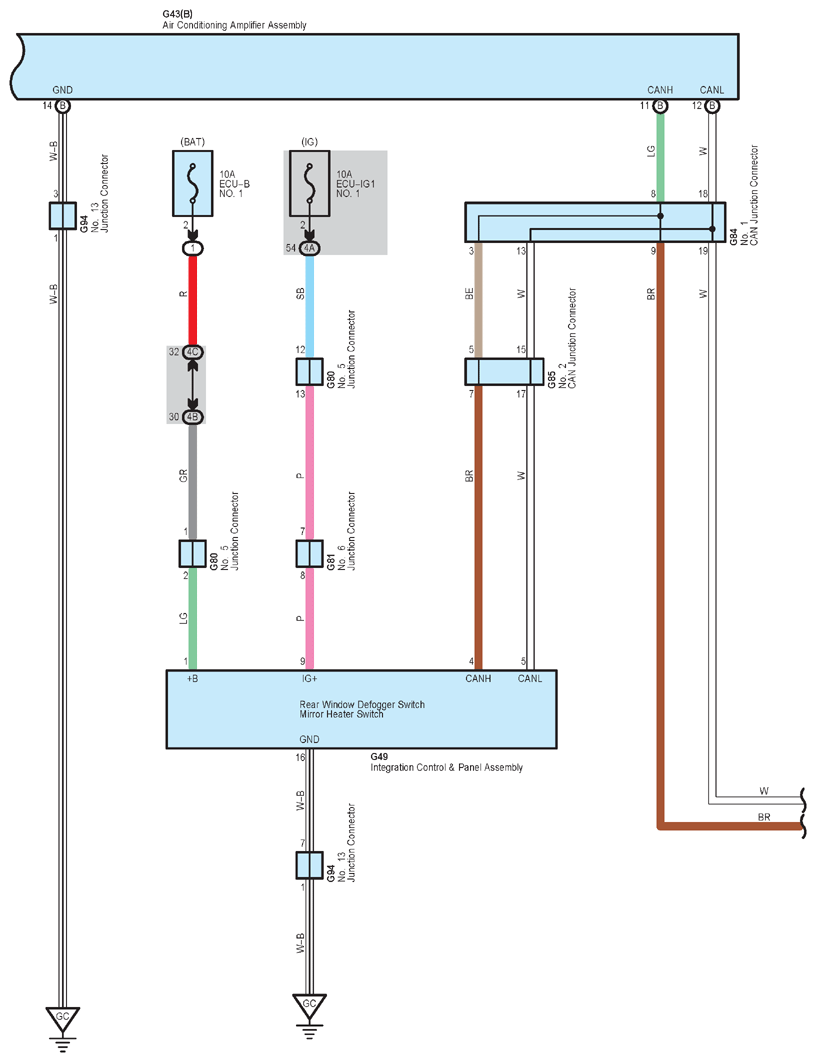

Fig 2: Mirror Heater, Rear Window Defogger (2 Of 5)
G12204433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

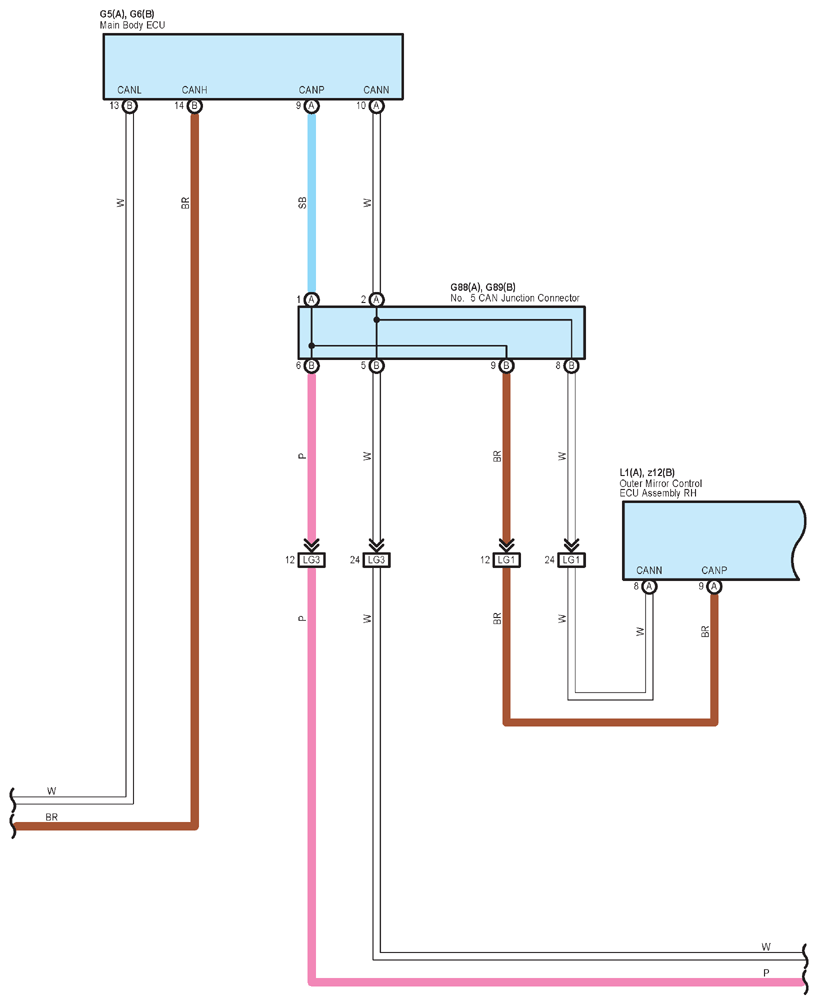

Fig 3: Mirror Heater, Rear Window Defogger (3 Of 5)
G12204434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

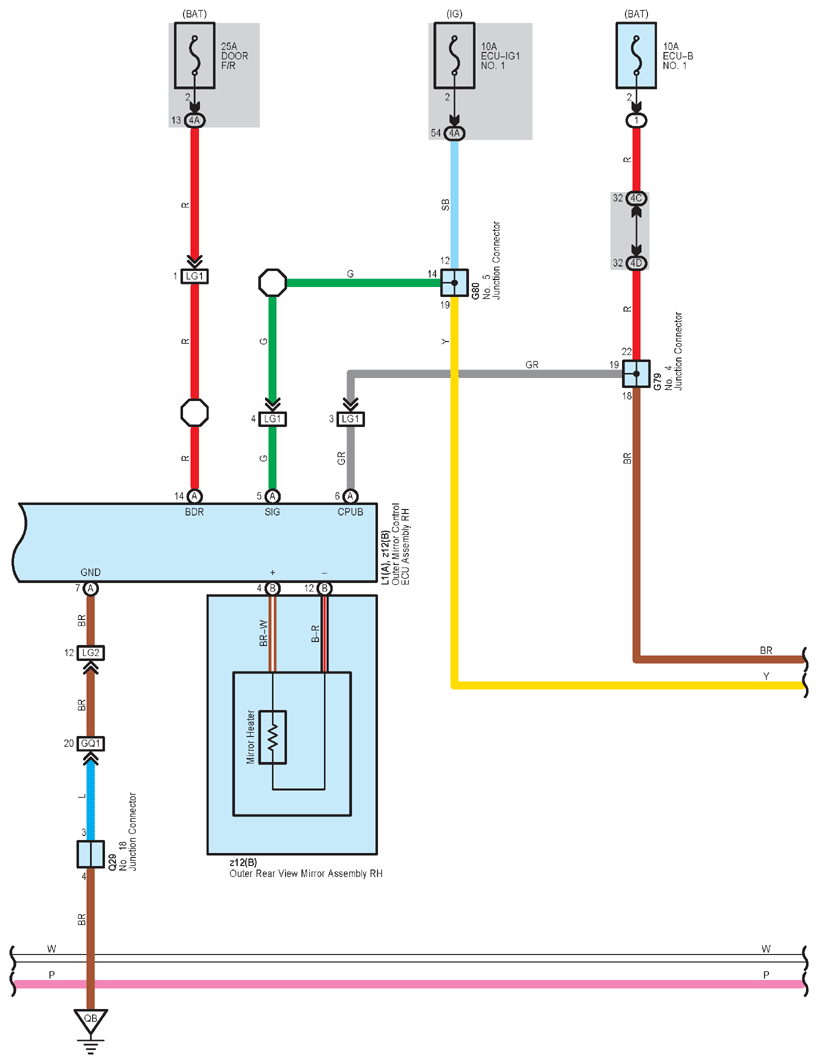

Fig 4: Mirror Heater, Rear Window Defogger (4 Of 5)
G12204435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

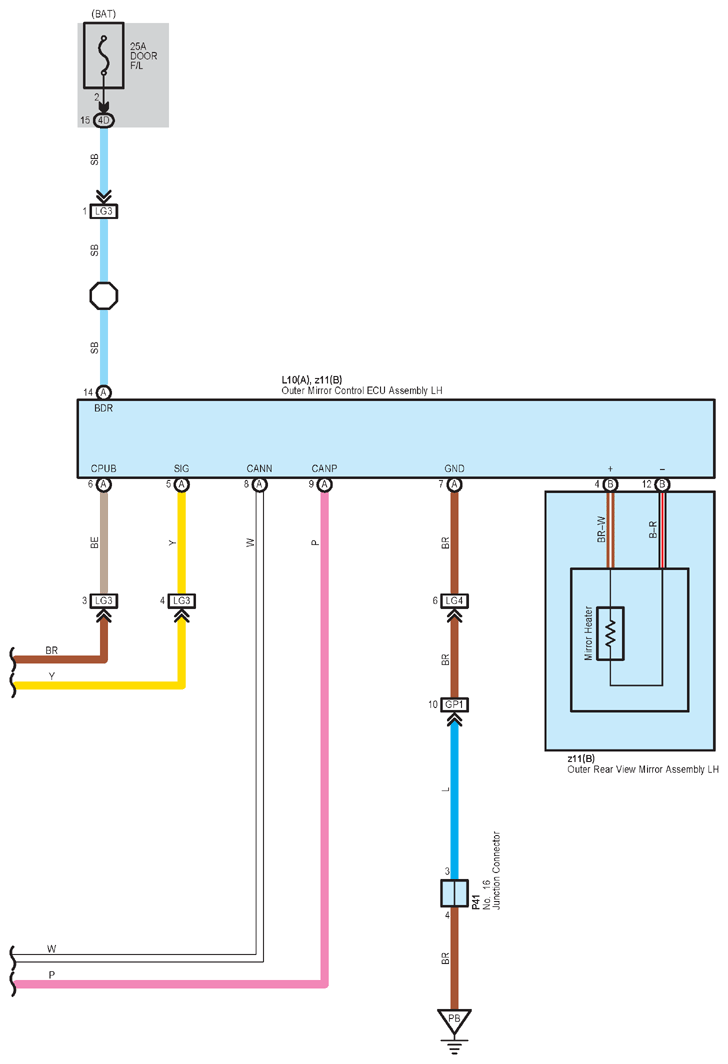

Fig 5: Mirror Heater, Rear Window Defogger (5 Of 5)
G12204436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
