Mirai
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Wiper And Washer
›
System Diagrams
System Diagrams

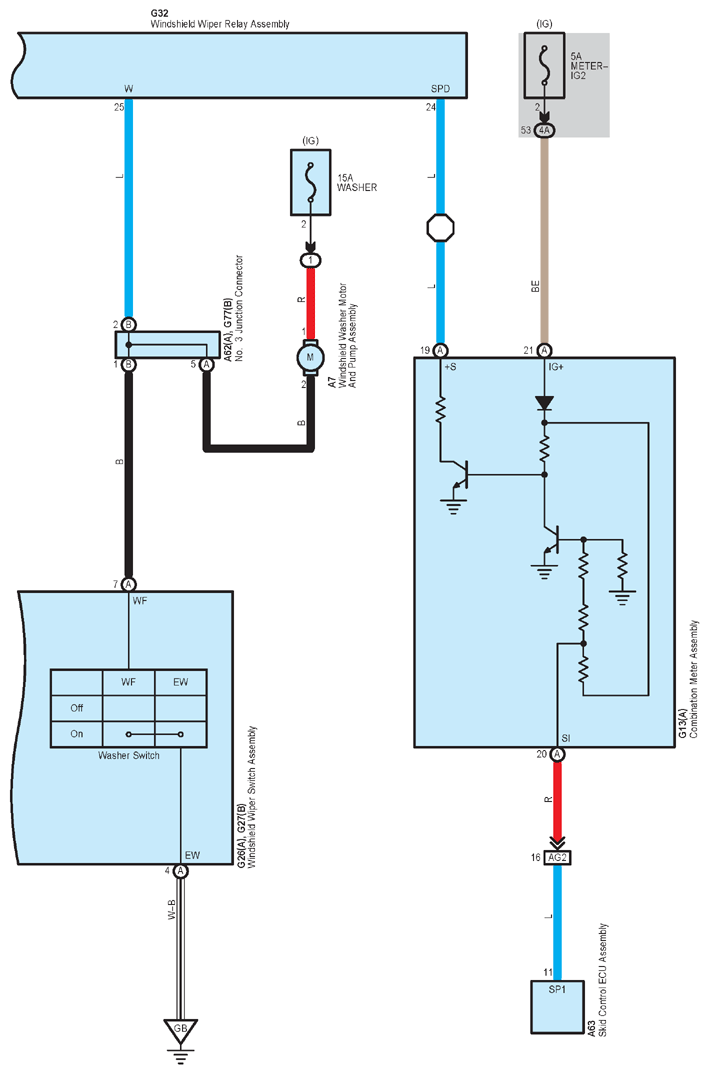

Fig 1: Wiper And Washer (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

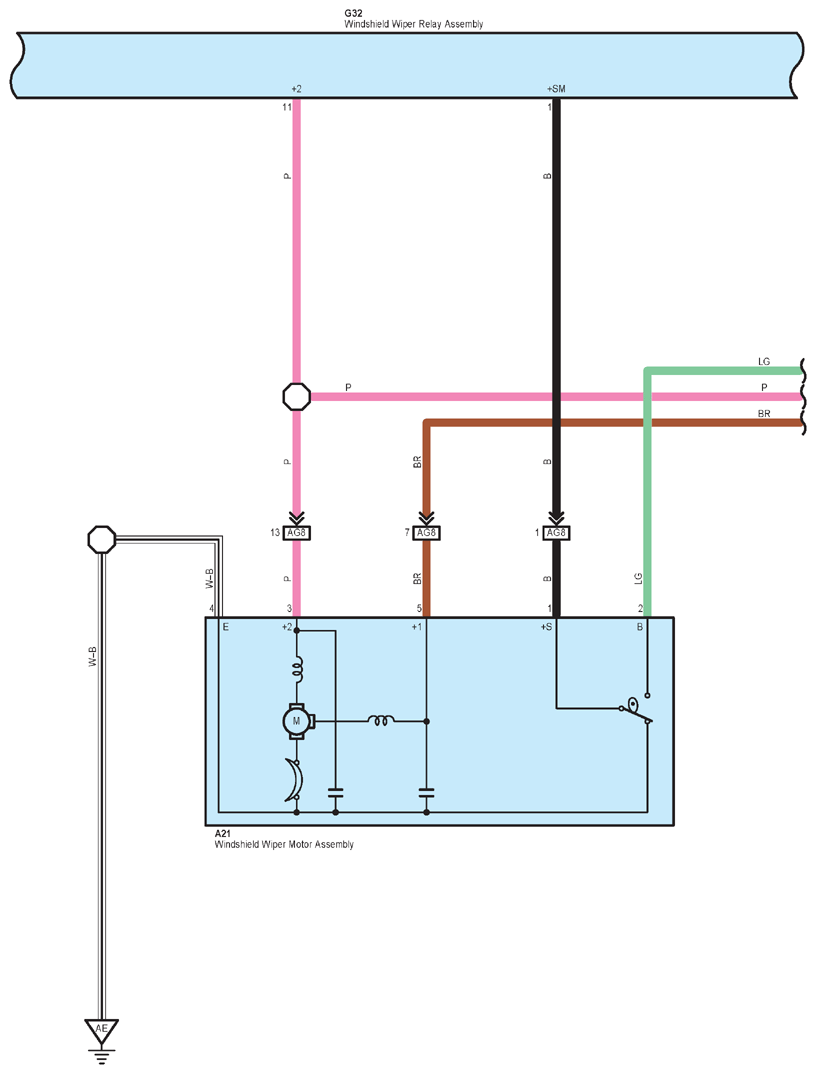

Fig 2: Wiper And Washer (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

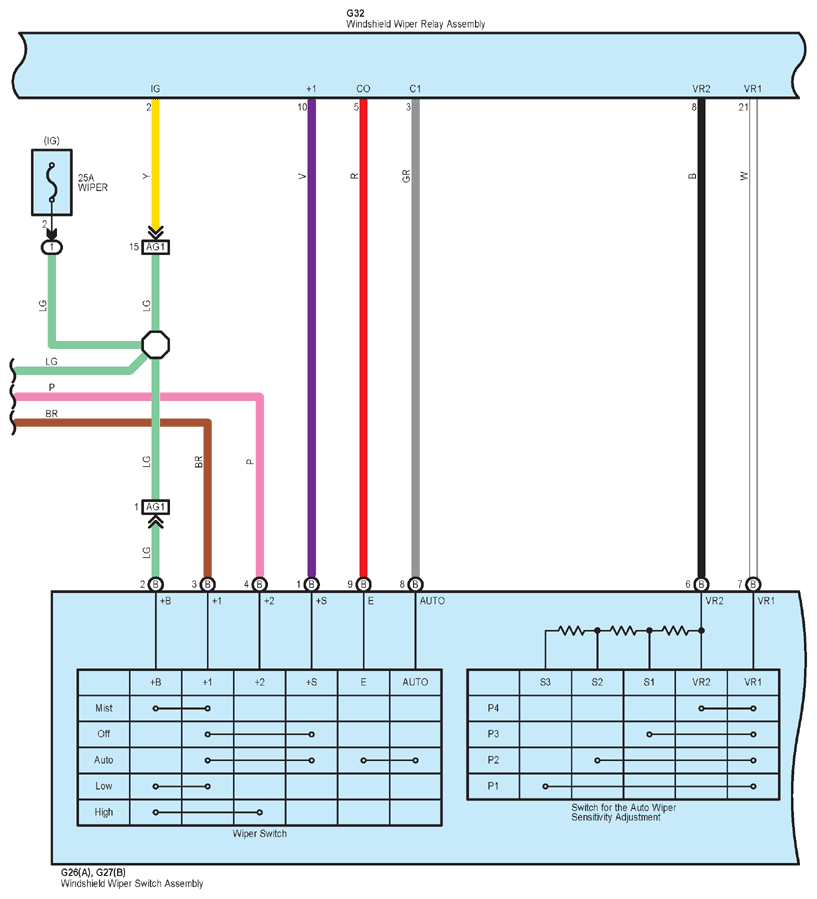

Fig 3: Wiper And Washer (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

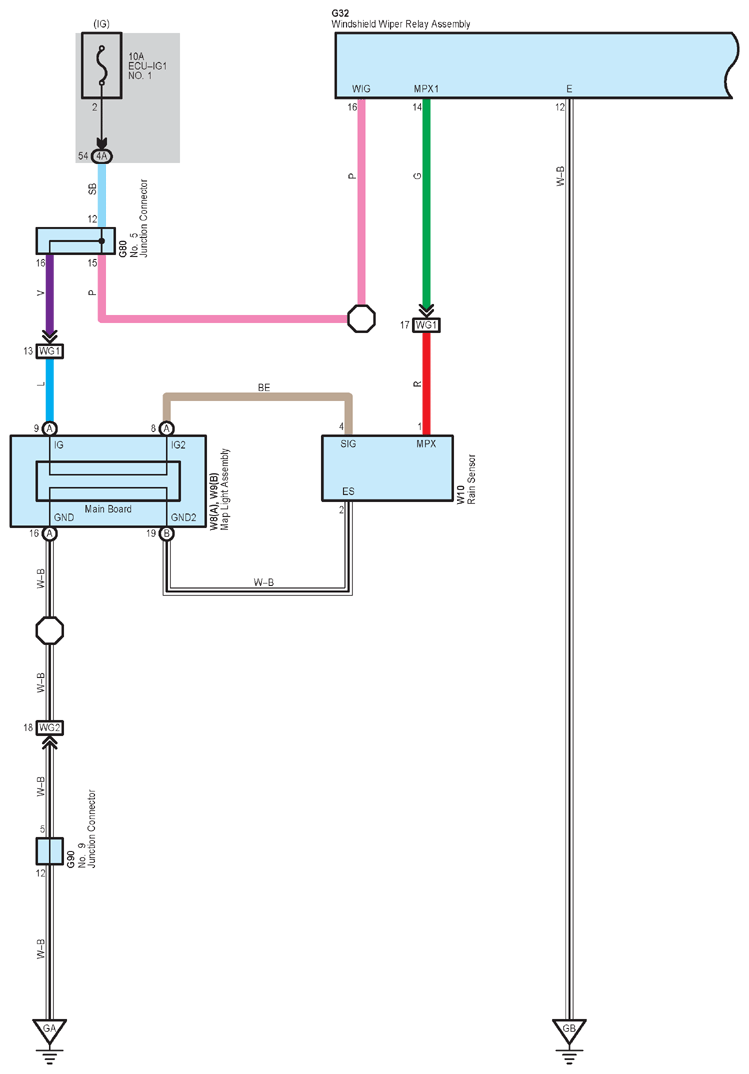

Fig 4: Wiper And Washer (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
