System Diagrams

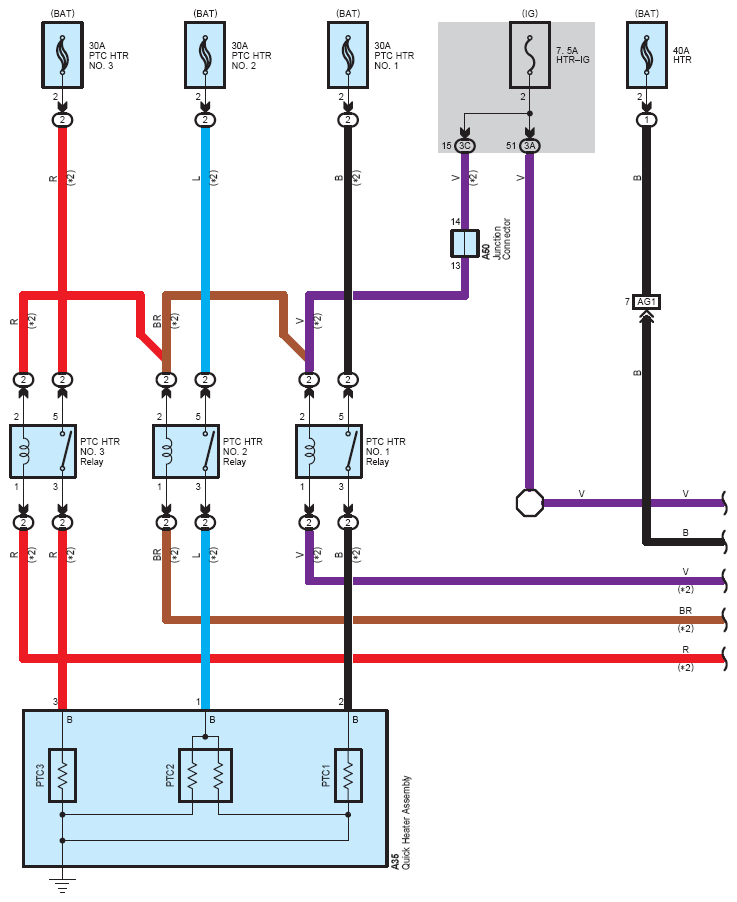

Fig 1: Air Conditioning (1 Of 10)

G12211152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

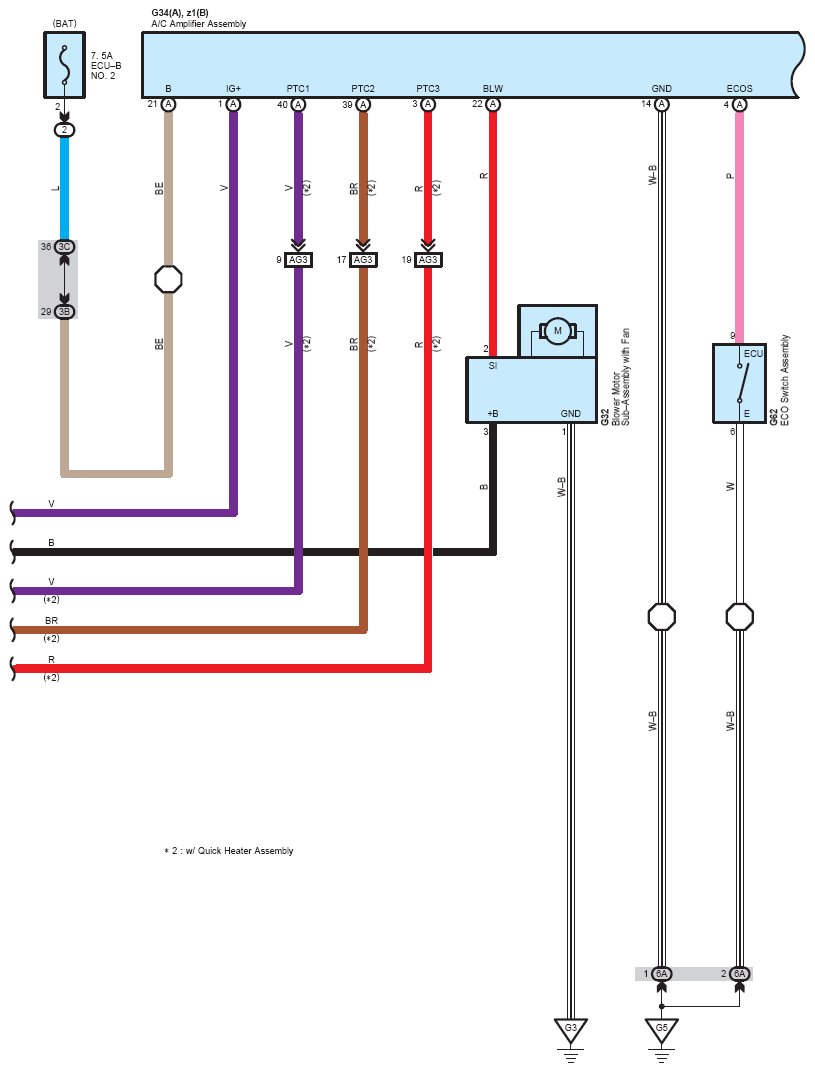

Fig 2: Air Conditioning (2 Of 10)

G12211153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

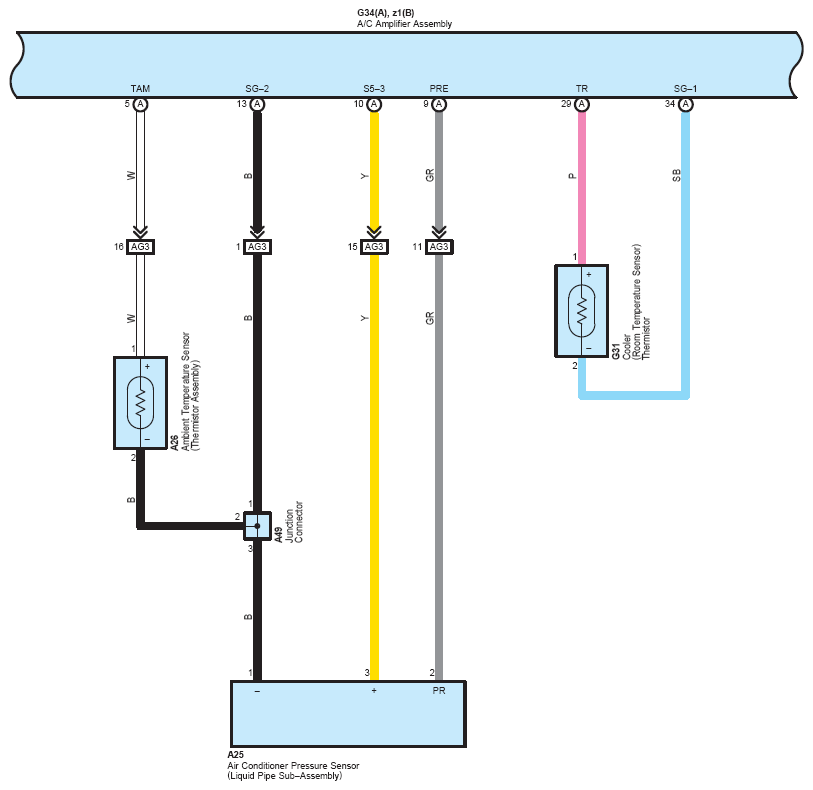

Fig 3: Air Conditioning (3 Of 10)

G12211154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

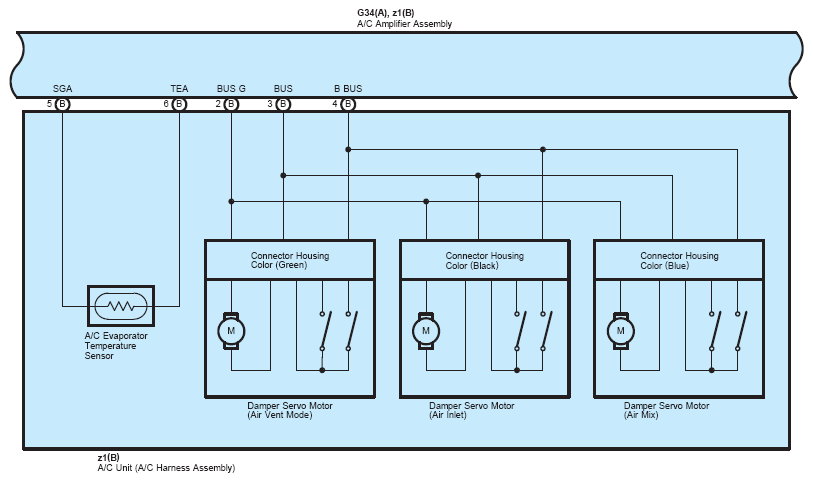

Fig 4: Air Conditioning (4 Of 10)

G12211155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

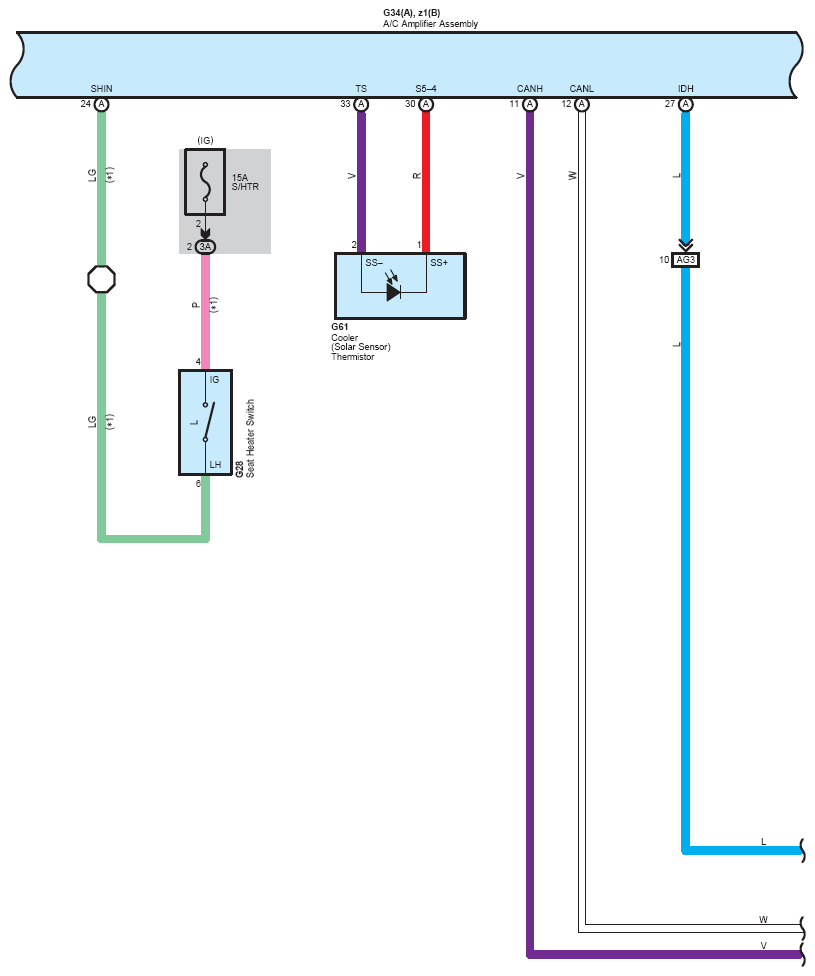

Fig 5: Air Conditioning (5 Of 10)

G12211156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

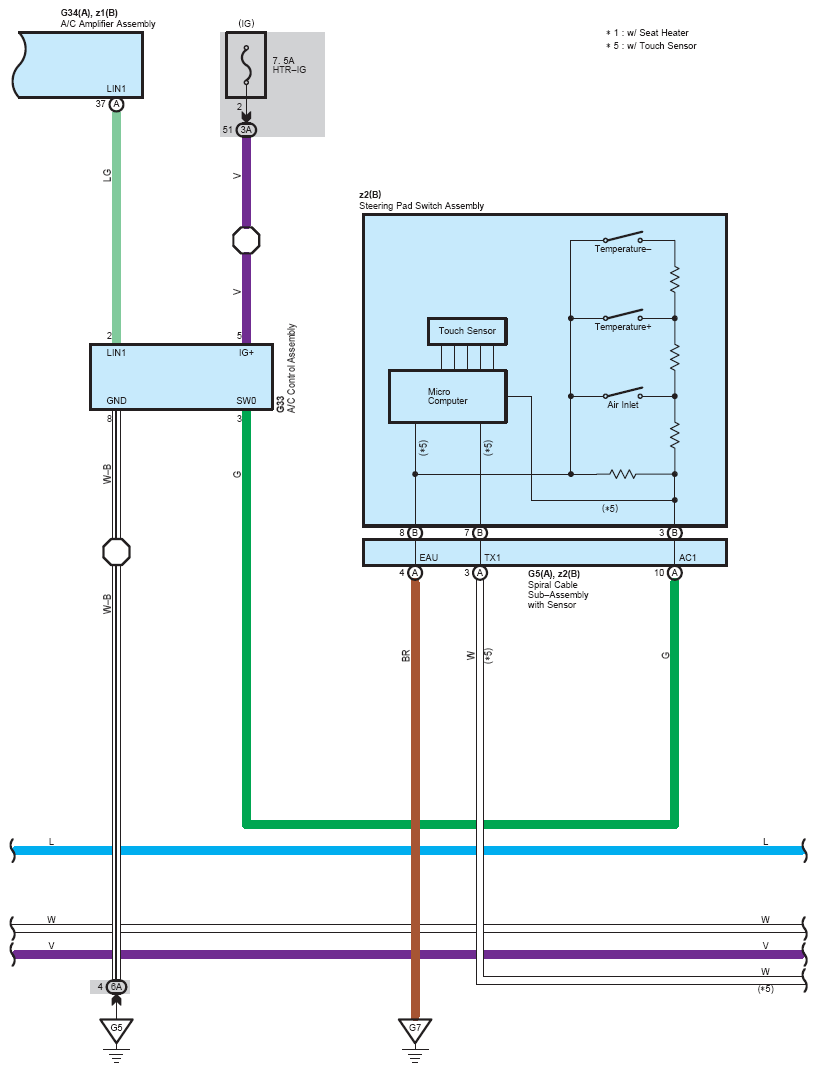

Fig 6: Air Conditioning (6 Of 10)

G12211157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

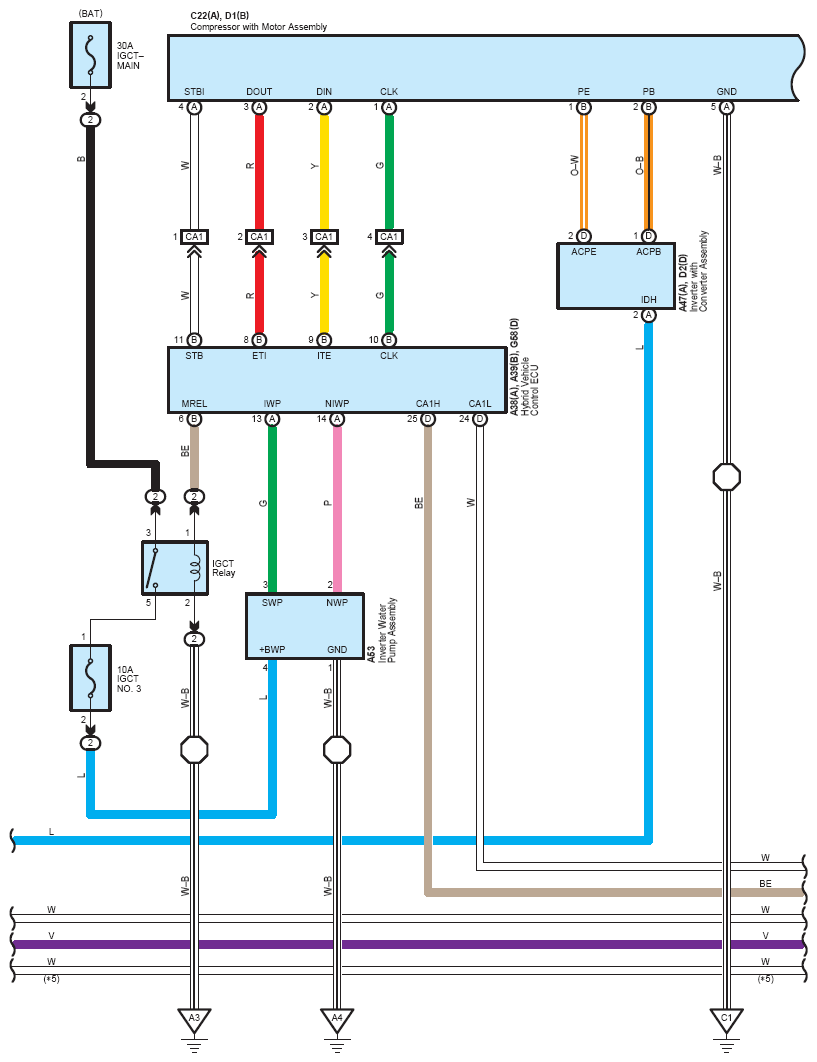

Fig 7: Air Conditioning (7 Of 10)

G12211158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

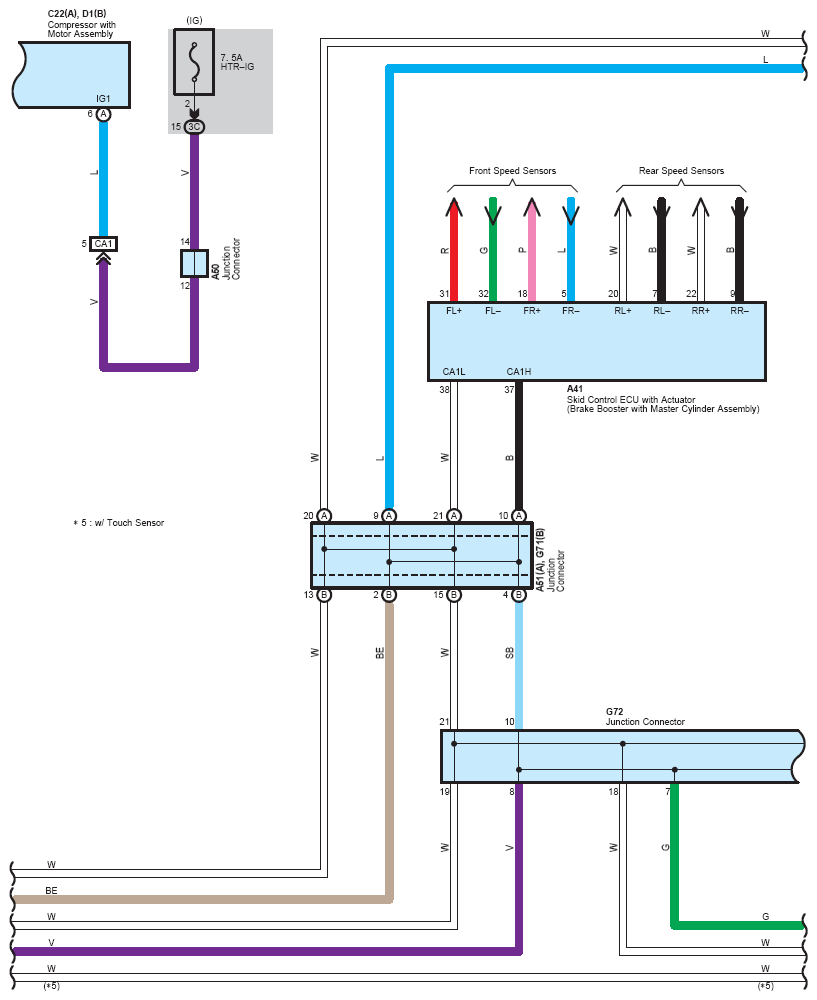

Fig 8: Air Conditioning (8 Of 10)

G12211159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

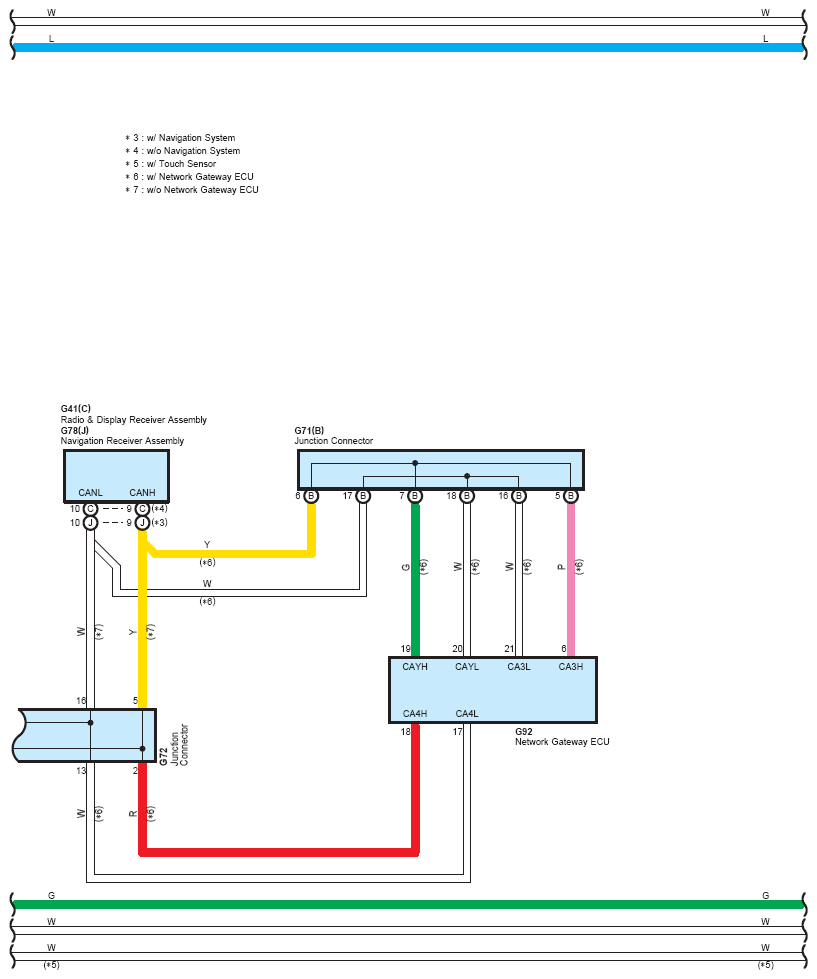

Fig 9: Air Conditioning (9 Of 10)

G12211160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

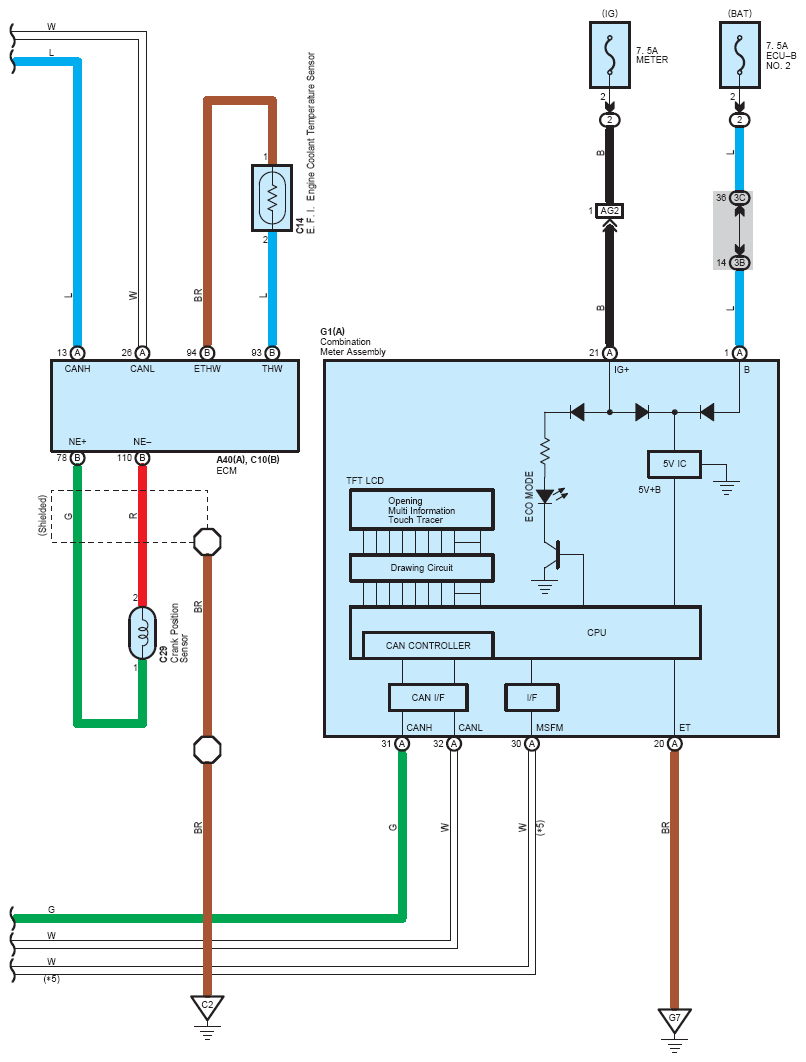

Fig 10: Air Conditioning (10 Of 10)

G12211161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
