Removal [11/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).

  2. DISABLE BRAKE CONTROL

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR WHEEL
  4. DISCONNECT SKID CONTROL SENSOR WIRE

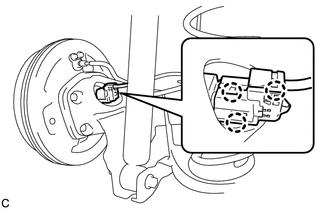

    1. Disengage the 3 claws and remove the connector cover.
      GTY329535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Disconnect the skid control sensor wire connector from the rear axle hub and bearing assembly.
      GTY329633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  5. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
    1. Remove the rear axle hub and bearing assembly (Refer to PROCEDURE - Step 6 ).

      HINT:

      • The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor malfunctions, replace the rear axle hub and bearing assembly.
      • If the sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
