Vehicle Proximity Notification System
›
System Diagrams
System Diagrams

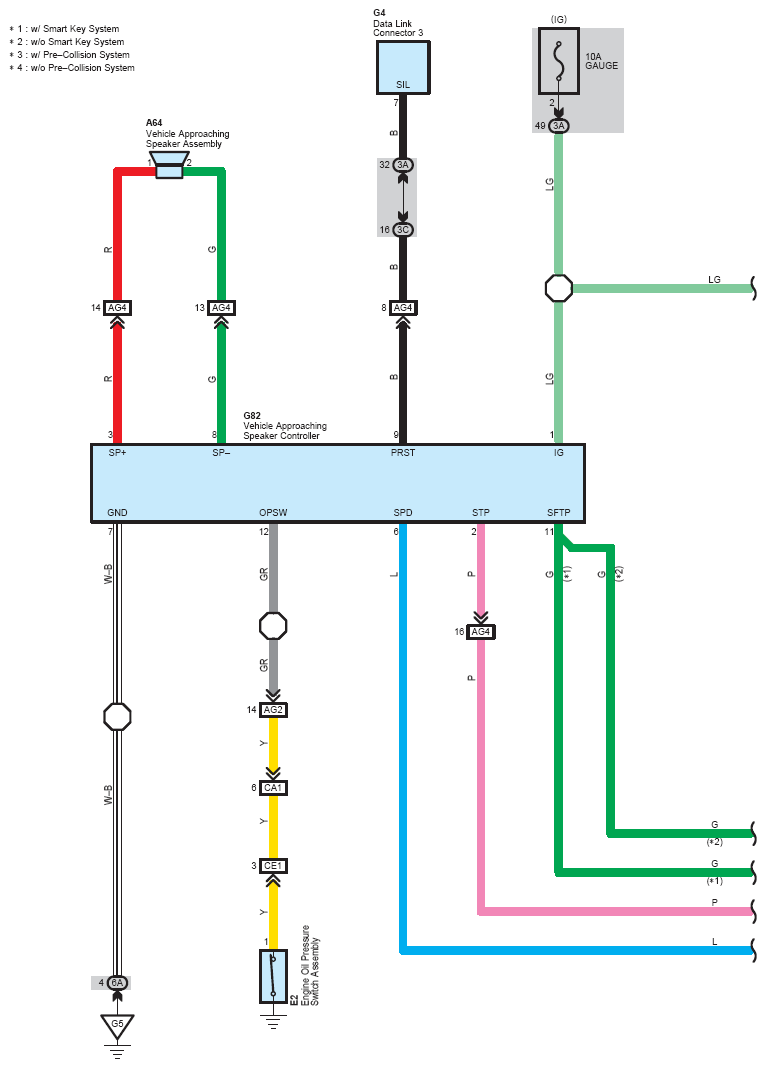

Fig 1: Vehicle Proximity Notification System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

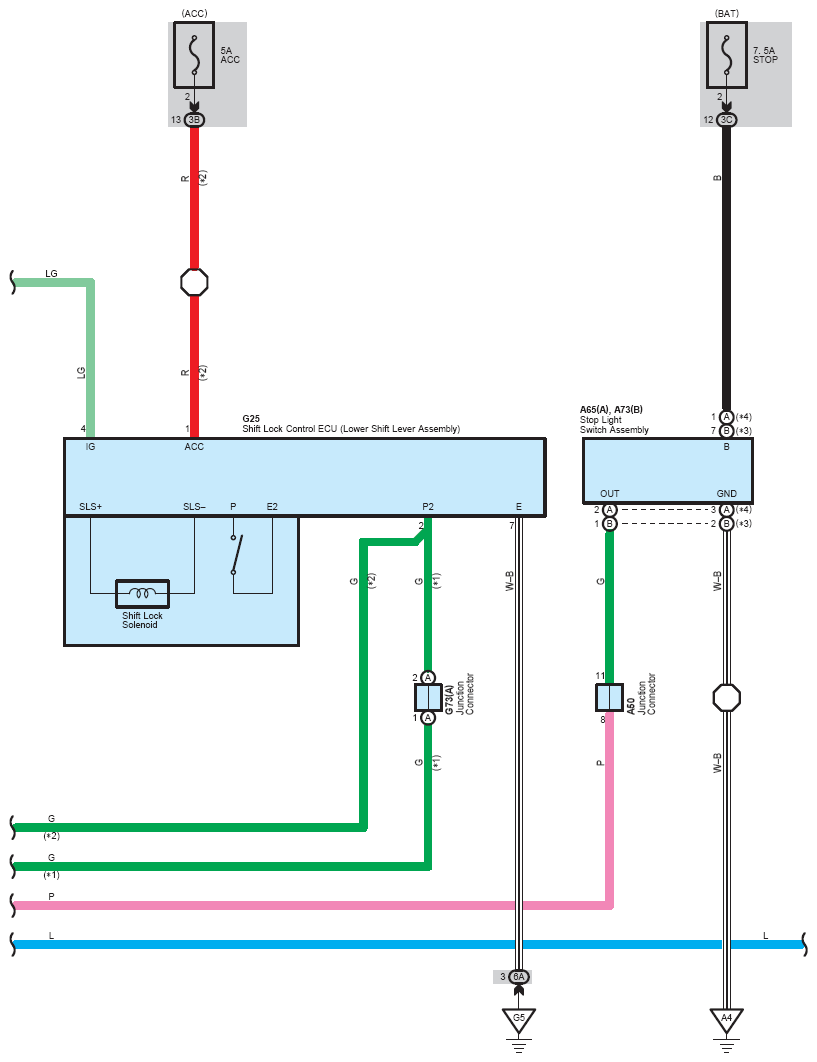

Fig 2: Vehicle Proximity Notification System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

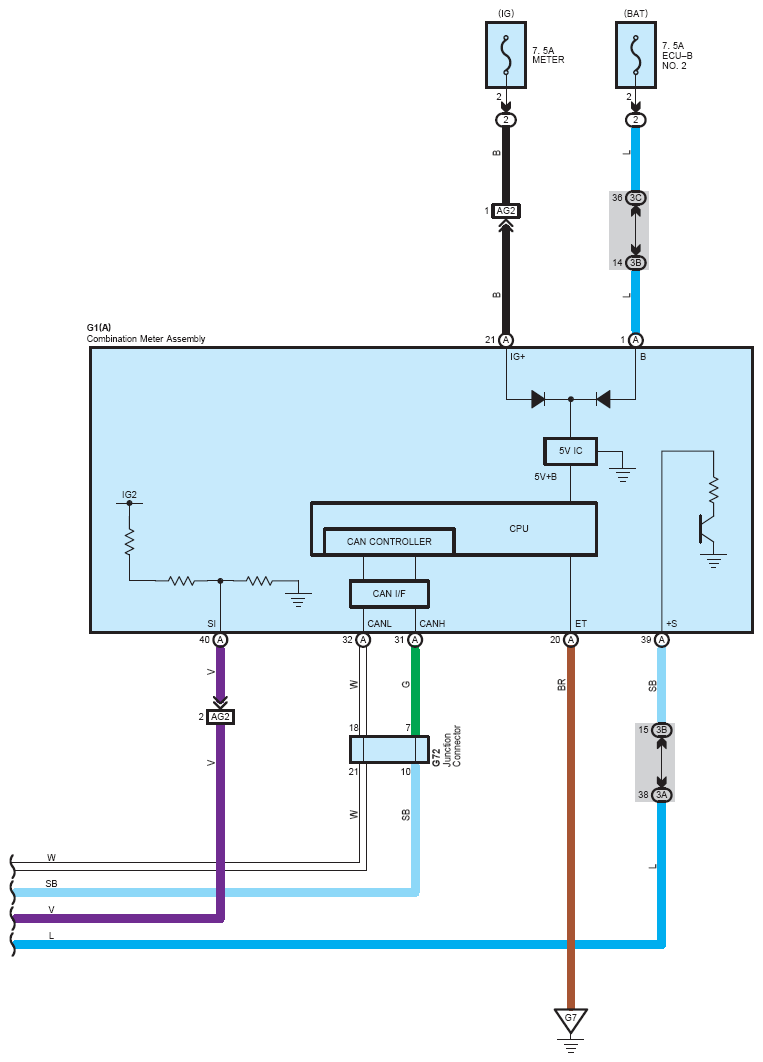

Fig 3: Vehicle Proximity Notification System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Vehicle Proximity Notification System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
