Adjustment [06/2017 - ]: Procedure

  1. PRECAUTION

    Standard values indicated by *A in the specification tables are for vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH.

    GTY760453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Colored identification mark on the bottom of the rear coil spring
  2. INSPECT TIRES

    Refer to PROCEDURE - Step 1

  3. MEASURE VEHICLE HEIGHT
    NOTE:
    • Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
    • Be sure to perform measurement on a level surface.
    • If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
    • Inspect while the vehicle is unloaded.
    • The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.
    1. Bounce the vehicle up and down at the corners to stabilize the suspension.

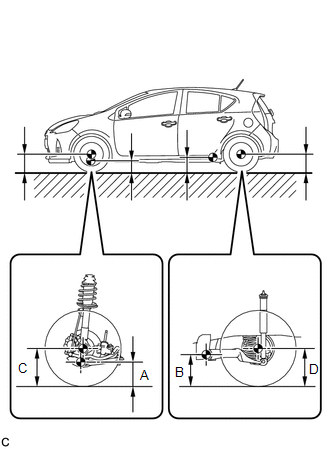

    2. Measure the vehicle height.
      GTY769212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Measurement points:

      1. A: Ground clearance of front lower No. 1 suspension arm bushing set bolt center
      1. B: Ground clearance of rear axle beam bushing set bolt center
      1. C: Ground clearance of front wheel center
      1. D: Ground clearance of rear wheel center

      Vehicle Height (Unloaded Vehicle)

      Tire Size Front C - A Rear D - B
      175/65R15 98 mm (3.86 in.)
      94 mm (3.70 in.) *A      		 34 mm (1.34 in.)
      30 mm (1.18 in.) *A
      195/50R16 99 mm (3.90 in.) 35 mm (1.38 in.)
      185/60R15 69 mm (2.72 in.) 4 mm (0.157 in.)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

  4. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.
      GTY754475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turning Radius Gauge
      *b Camber-caster-kingpin Gauge
    2. Inspect the camber, caster and steering axis inclination.

      Camber (Unloaded Vehicle)

      Tire Size Camber Inclination Right-left Difference
      175/65R15 -0°16' +/- 0°45' (-0.27° +/- 0.75°)
      -0°14' +/- 0°45' (-0.23° +/- 0.75°) *A      		 0°30' (0.50°) or less
      195/50R16 -0°16' +/- 0°45' (-0.27° +/- 0.75°)
      185/60R15 0°05' +/- 0°45' (0.08° +/- 0.75°)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

      Caster (Unloaded Vehicle)

      Tire Size Caster Inclination Right-left Difference
      175/65R15 4°57' +/- 0°45' (4.95° +/- 0.75°)
      4°53' +/- 0°45' (4.88° +/- 0.75°) *A      		 0°30' (0.50°) or less
      195/50R16 4°59' +/- 0°45' (4.98° +/- 0.75°)
      185/60R15 4°32' +/- 0°45' (4.53° +/- 0.75°)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

      Steering Axis (Unloaded Vehicle)

      Tire Size Steering Axis Inclination Reference
      175/65R15 11°31' (11.52°)
      11°26' (11.43°) *A
      195/50R16 11°32' (11.53°)
      185/60R15 10°49' (10.82°)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

  5. ADJUST CAMBER
    NOTE:

    Inspect toe-in after the camber has been adjusted.

    1. Remove the front wheel.

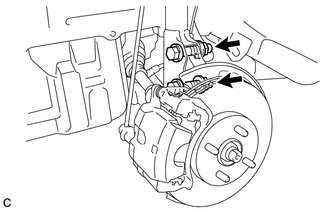

    2. Remove the 2 nuts on the lower side of the front shock absorber assembly.
      GTY724551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the bolts inserted.

    3. Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.

      HINT:

      • Reinstall each bolt after removing it and confirming steering knuckle movement.
      • If the steering knuckle does not move freely in the front shock absorber assembly, clean the installation surfaces of the front shock absorber assembly and the steering knuckle.
    4. Temporarily install the 2 nuts. (Step A)
    5. Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)
      GTY166872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Tighten the nuts.
      GTY724551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 164 N*m (1672 kgf*cm, 121 ft.*lbf)

      NOTE:

      Keep the bolts from rotating when tightening the nuts.

    7. Install the front wheel.

      Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

    8. Bounce the vehicle up and down at the corners to stabilize the suspension.
    9. Check the camber.

      Camber (Unloaded Vehicle)

      Tire Size Camber Inclination Right-left Difference
      175/65R15 -0°16' +/- 0°45' (-0.27° +/- 0.75°)
      -0°14' +/- 0°45' (-0.23° +/- 0.75°) *A      		 0°30' (0.50°) or less
      195/50R16 -0°16' +/- 0°45' (-0.27° +/- 0.75°)
      185/60R15 0°05' +/- 0°45' (0.08° +/- 0.75°)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

      1. If the measured value is not within the specification, calculate the required adjustment amount using the formula below.
        GTY765160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Camber adjustment amount = center of the specified range - measured value

        Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values.

        HINT:

        Try to adjust the camber to the center of the specified values.

        To move the axle hub toward (+) in step B To move the axle hub toward (-) in step B
        Refer to table (1) (To move the axle hub toward the positive side) in the following below Refer to table (2) (To move the axle hub toward the negative side) in the following below

        The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above.

        NOTE:

        Replace the nut with a new one when replacing the bolt.

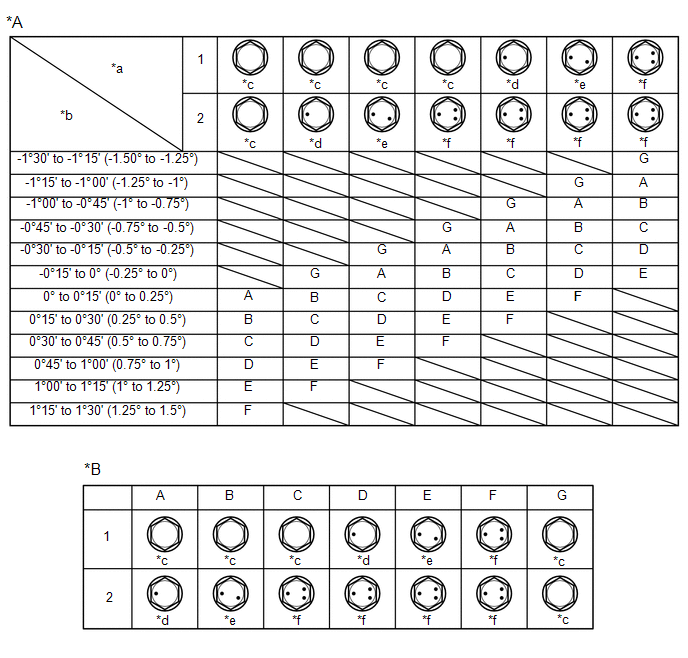

      2. Table (1) (To move the axle hub toward the positive side)
        GTY761733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Table (1) (To move the axle hub toward the positive side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c 90109-15001 *d 90109-15002
        *e 90109-15003 *f 90109-15004

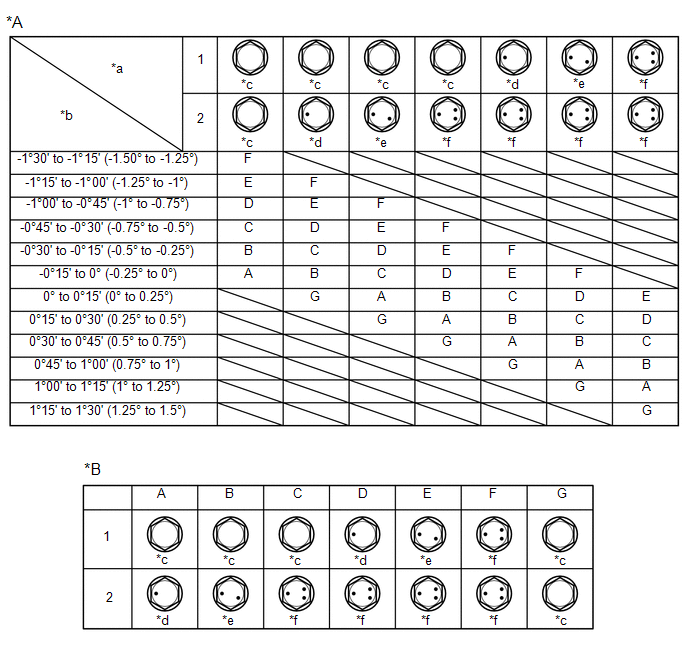

      3. Table (2) (To move the axle hub toward the negative side)
        GTY764254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Table (2) (To move the axle hub toward the negative side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c 90109-15001 *d 90109-15002
        *e 90109-15003 *f 90109-15004
    10. If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step (A), replace the existing bolts with the selected bolts.

      HINT:

      Replace one bolt at a time when replacing both bolts.

  6. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to N.
    3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)
    4. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
      GTY741629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tread Center Mark
      *b Dimension B
      Front of the Vehicle
    5. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from Step C again.

    6. Measure the distance between the tread center marks on the front of the wheels (dimension A).
      GTY742958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dimension A
      Front of the Vehicle

      Toe-in (Unloaded Vehicle)

      Specified Condition
      C + D: 0°06' +/- 0°12' (0.10° +/- 0.21°)
      B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified range, adjust it at the rack ends.

  7. ADJUST TOE-IN

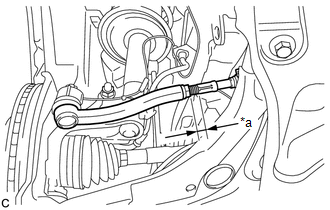

    1. Make sure that the thread length of the right and left rack ends are approximately the same.
      GTY771132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Thread Length

      Standard Difference

      1.5 mm (0.0591 in.) or less

    2. Separate the boot clips.

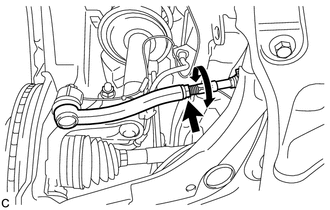

    3. Loosen the tie rod end lock nuts.
      GTY329756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Adjust the rack ends if the difference in thread length between the right and left rack ends is not within the specified range.
      1. Extend the shorter rack end if the measured toe-in deviates toward the outer-side.
      2. Shorten the longer rack end if the measured toe-in deviates toward the inner-side.
    5. Turn the right and left rack ends by an equal amount to adjust the toe-in.

      Toe-in (Unloaded Vehicle)

      Specified Condition
      C + D: 0°06' +/- 0°12' (0.10° +/- 0.21°)
      B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)
      GTY757251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front of the Vehicle

      HINT:

      Perform adjustments so that the value is as close as possible to the median of the specified range.

    6. Make sure that the thread lengths of the right and left rack ends are the same.
    7. Tighten the tie rod end lock nuts.

      Torque: 75 N*m (760 kgf*cm, 55 ft.*lbf)

    8. Place the boots on the seats and install the clips.

      HINT:

      Make sure that the boots are not twisted.

  8. INSPECT WHEEL ANGLE
    1. Put tread center marks on the rearmost points of a turning radius gauge.
      GTY747435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inside
      *b Outside
      Front of the Vehicle
    2. Turn the steering wheel fully to the left and right and measure the turning angle.
      NOTE:

      Inspect while the vehicle is unloaded.

      Wheel Turning Angle (Unloaded Vehicle)

      Tire Size Inside Wheel Outside Wheel Reference
      175/65R15 40°42' +/- 2° (40.70° +/- 2°)
      40°47' +/- 2° (40.78° +/- 2°) *A      		 35°02' (35.03°)
      35°08' (35.13°) *A
      195/50R16 32°32' +/- 2° (32.53° +/- 2°) 29°28' (29.47°)
      185/60R15 41°21' +/- 2° (41.35° +/- 2°) 35°44' (35.73°)

      () *A: Vehicles with a white identification mark on the bottom of the rear coil spring RH and a purple identification mark on the bottom of the rear coil spring LH

      1. If the right and left inside wheel angles differ from the specified value, check and adjust the right and left rack end lengths.
  9. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  10. PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION

    Refer to CALIBRATION [11/2015 - ]
