System Diagrams

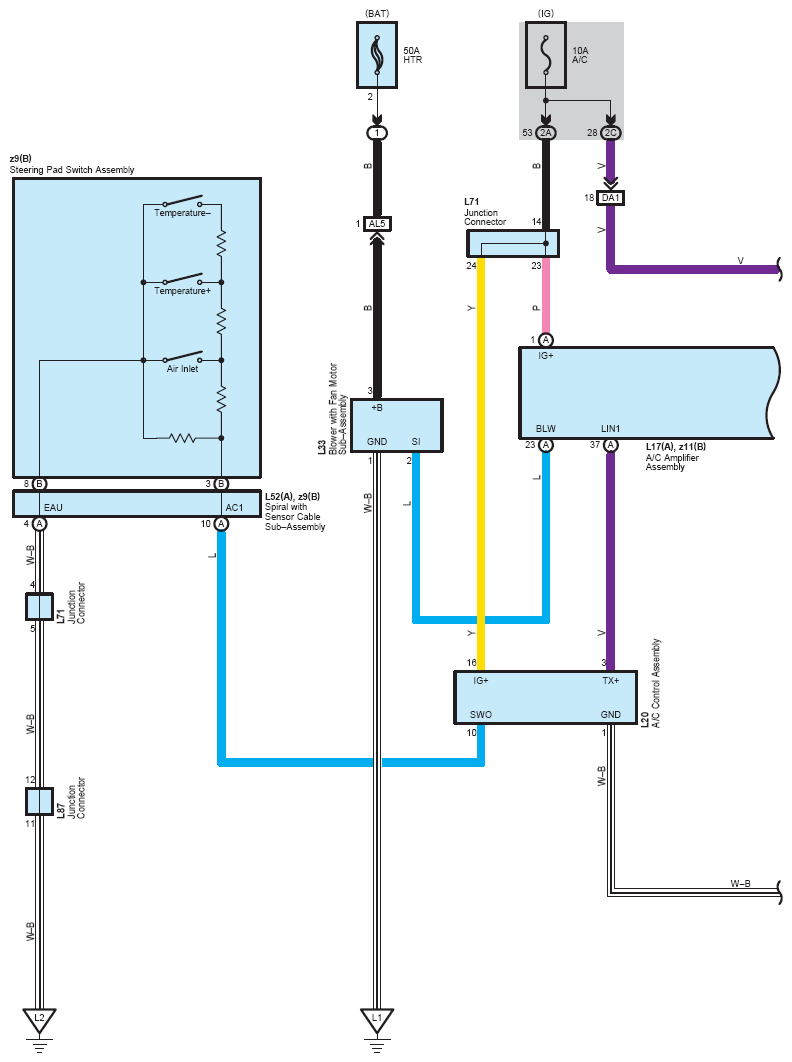

Fig 1: Air Conditioning (1 Of 11)

G12214230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

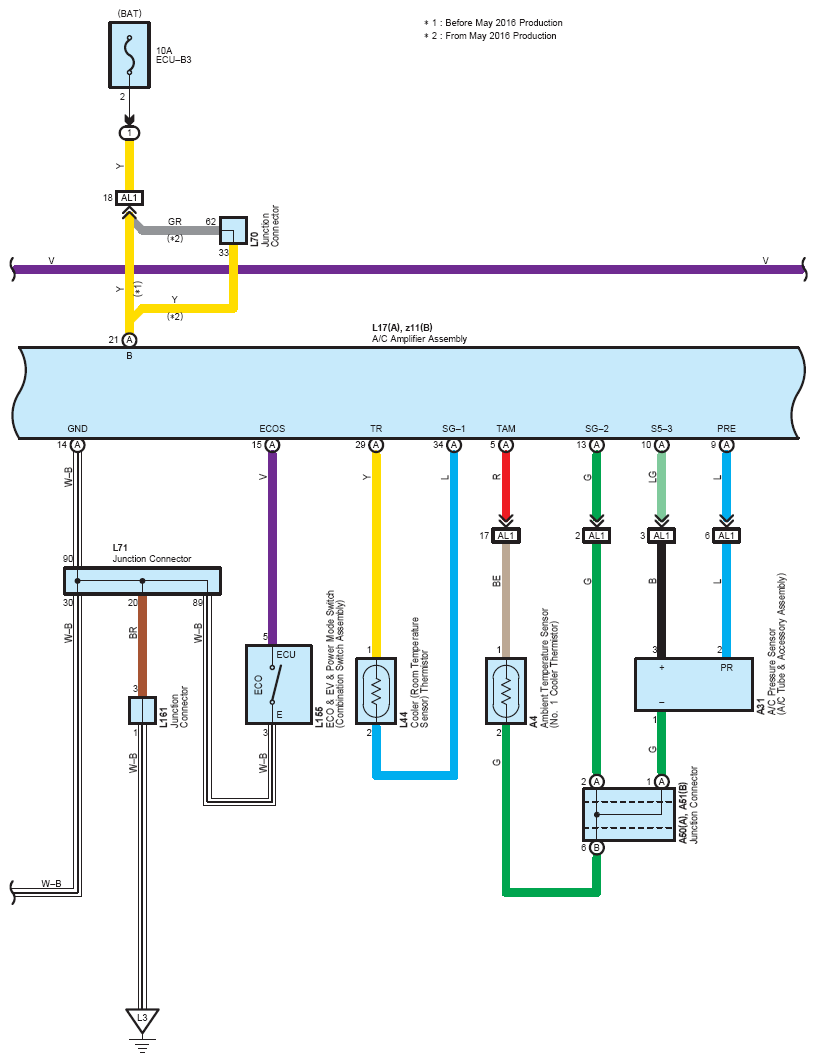

Fig 2: Air Conditioning (2 Of 11)

G12214231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

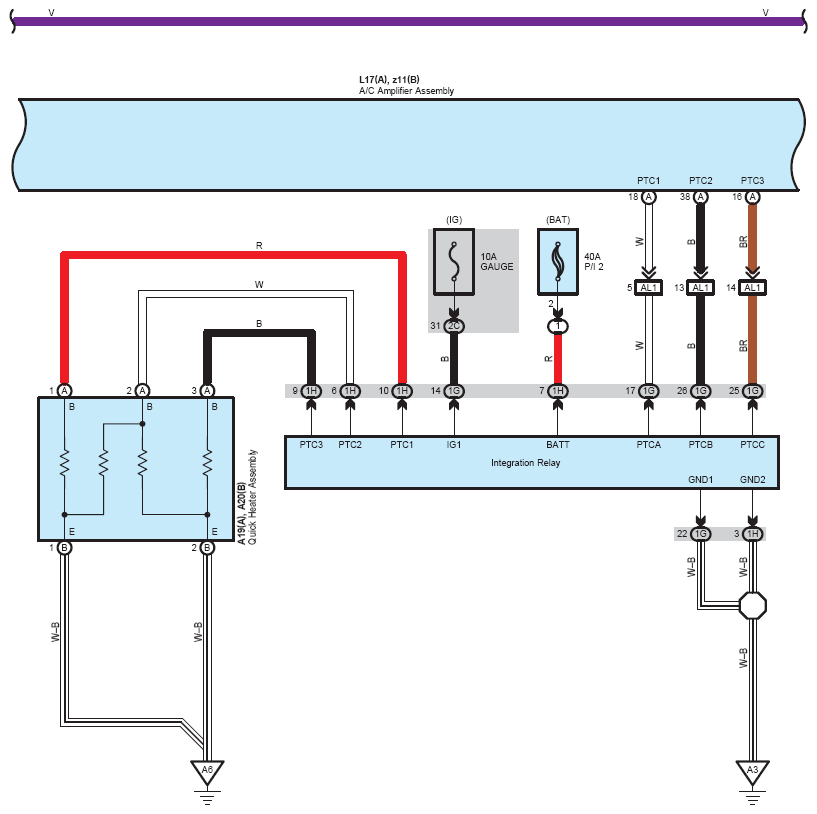

Fig 3: Air Conditioning (3 Of 11)

G12214232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

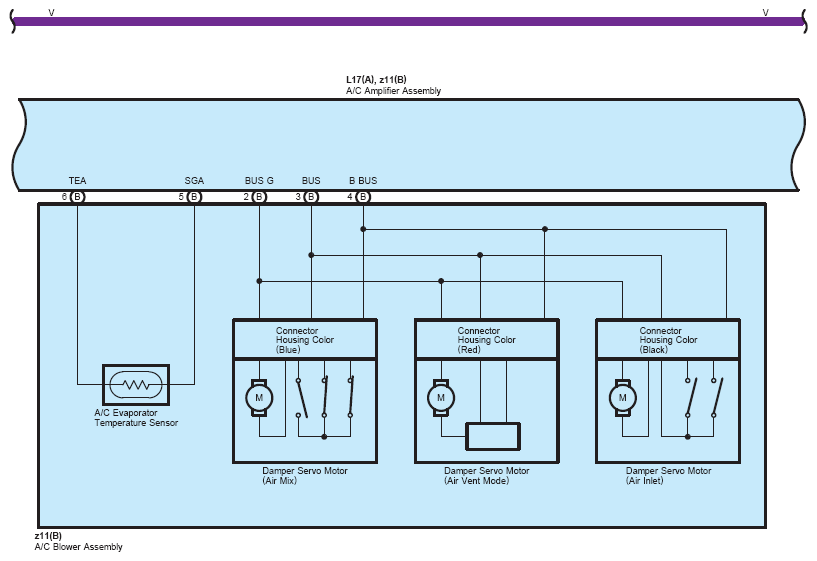

Fig 4: Air Conditioning (4 Of 11)

G12214233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

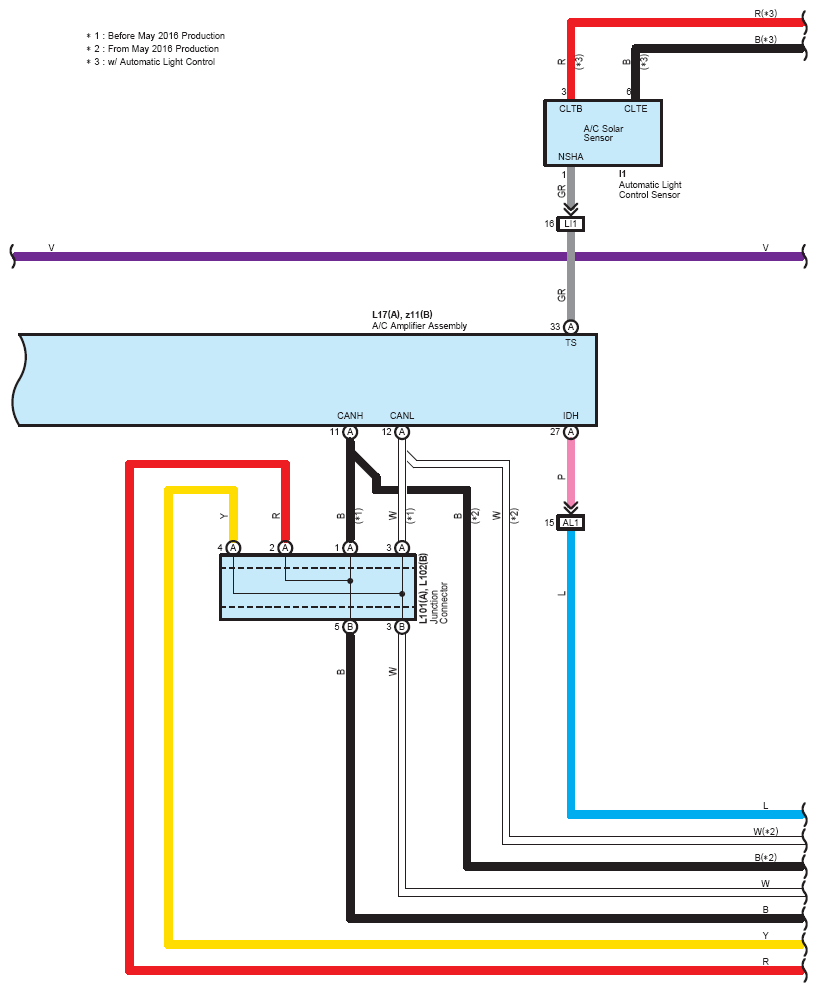

Fig 5: Air Conditioning (5 Of 11)

G12214234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

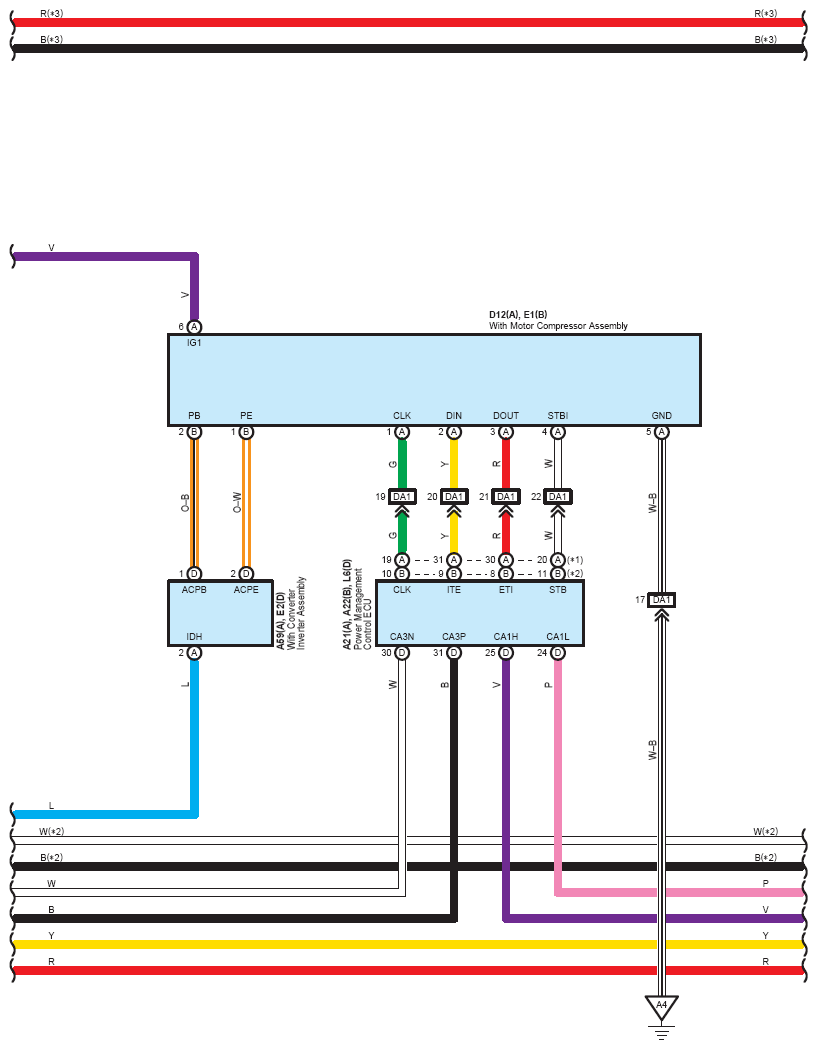

Fig 6: Air Conditioning (6 Of 11)

G12214235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

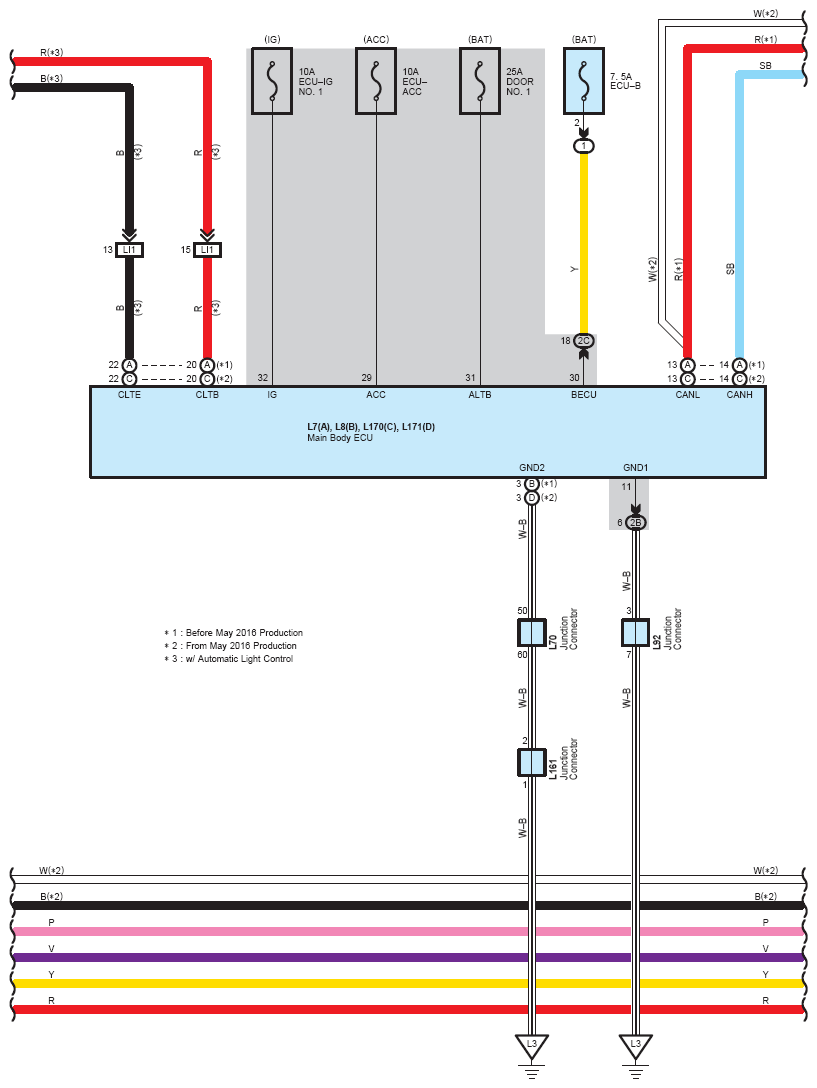

Fig 7: Air Conditioning (7 Of 11)

G12214236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

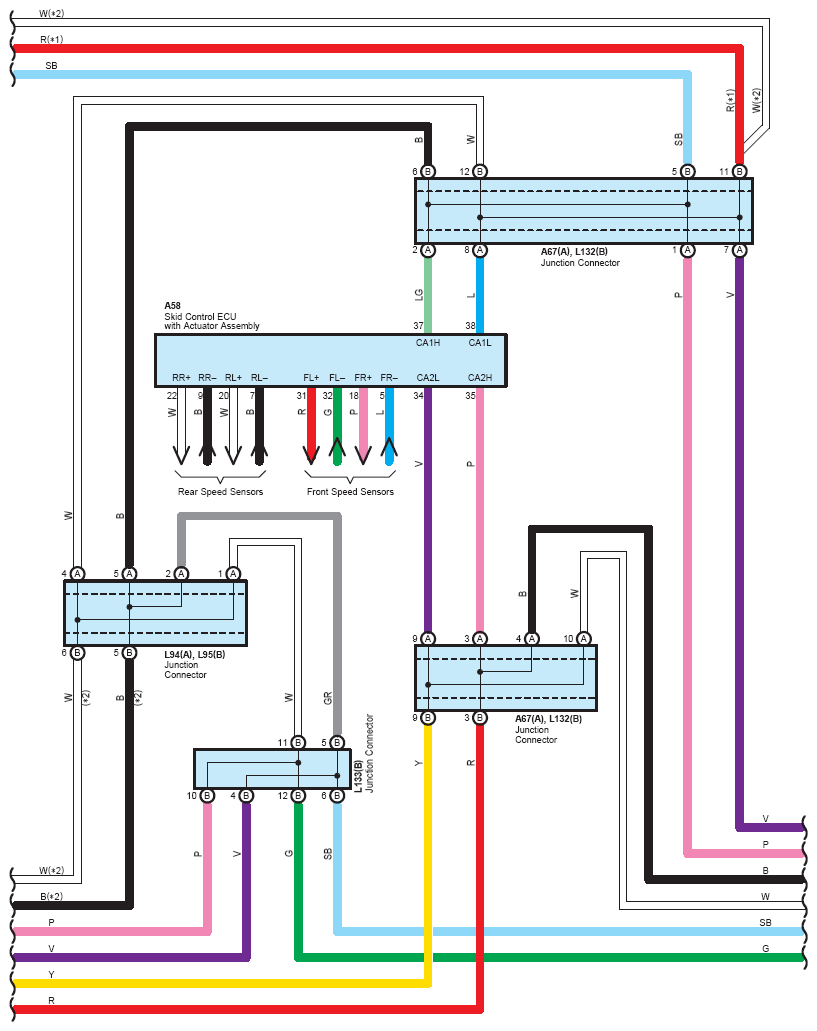

Fig 8: Air Conditioning (8 Of 11)

G12214237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

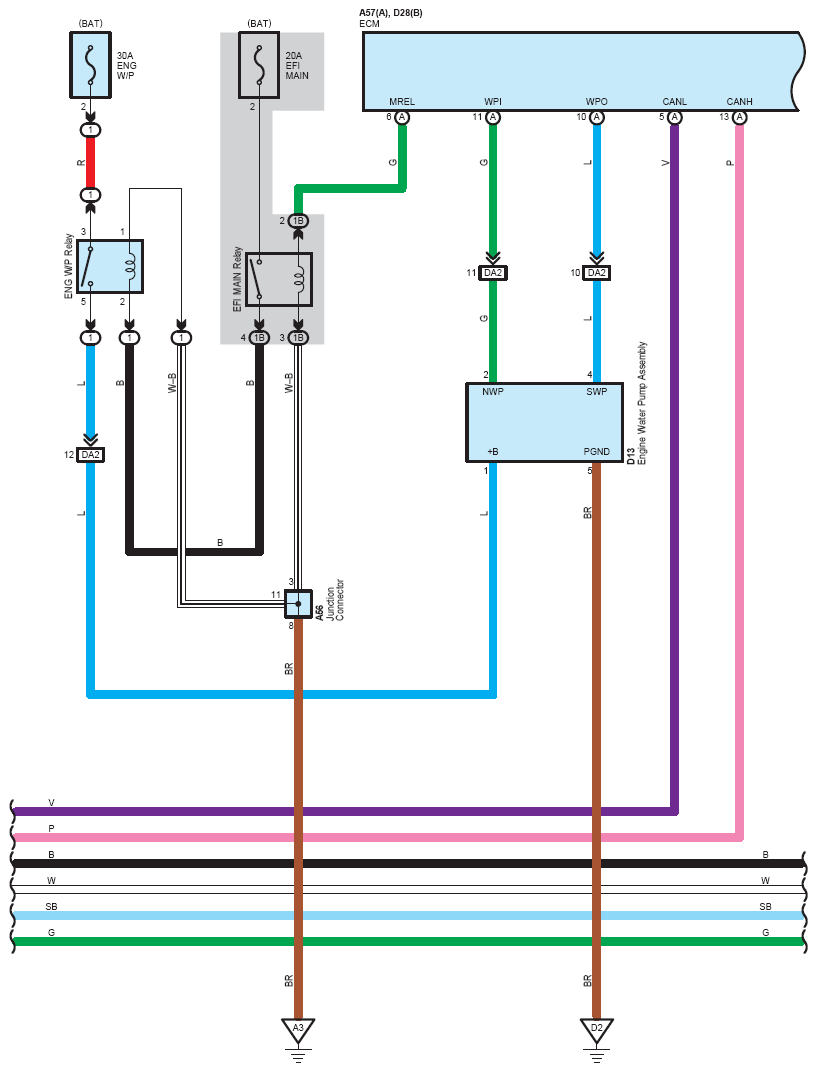

Fig 9: Air Conditioning (9 Of 11)

G12214238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

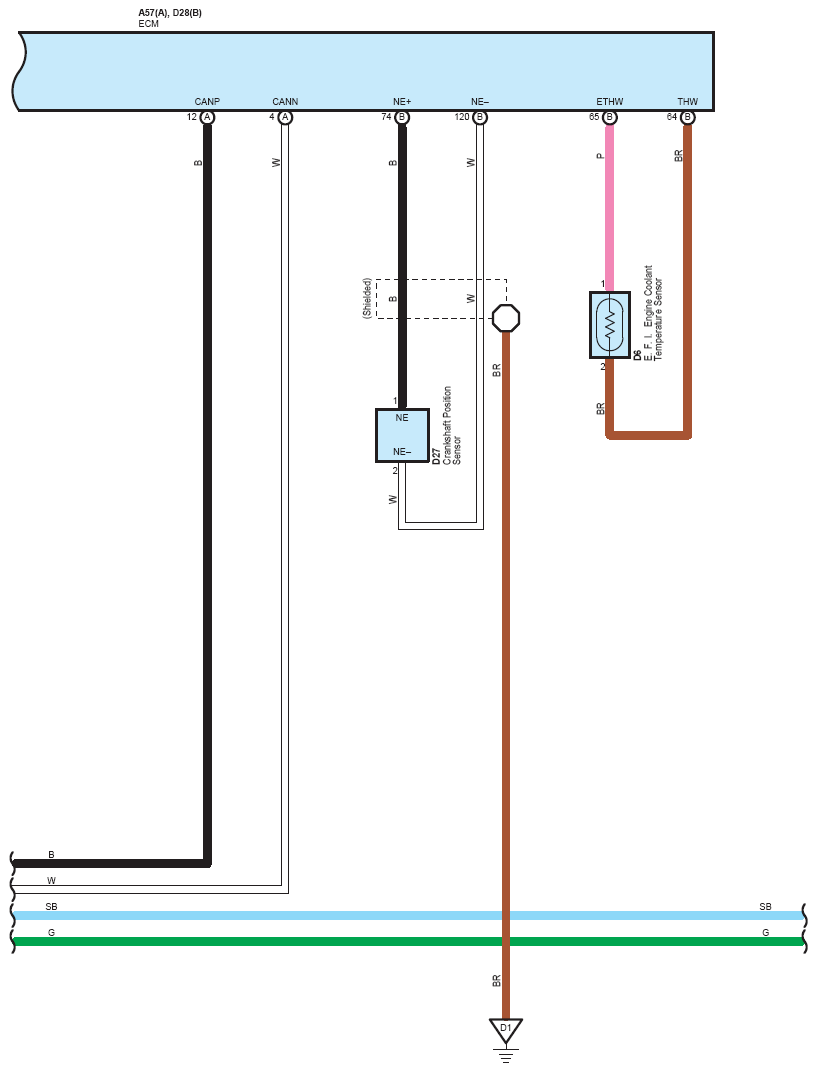

Fig 10: Air Conditioning (10 Of 11)

G12214239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

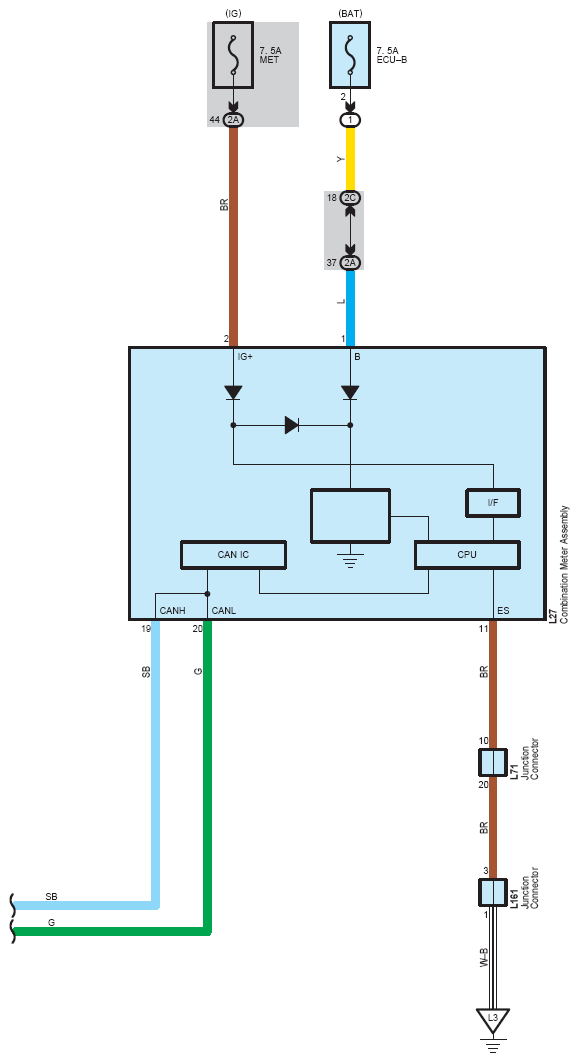

Fig 11: Air Conditioning (11 Of 11)

G12214240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
