System Diagrams

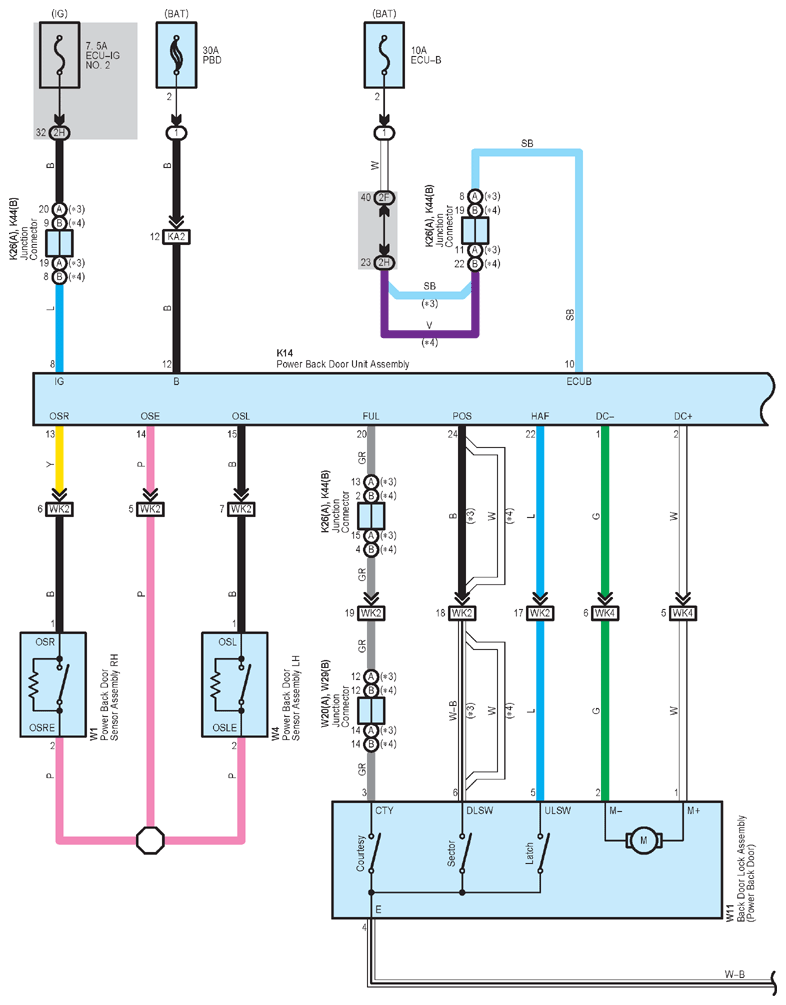

Fig 1: Power Back Door (1 Of 5)
G12221651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

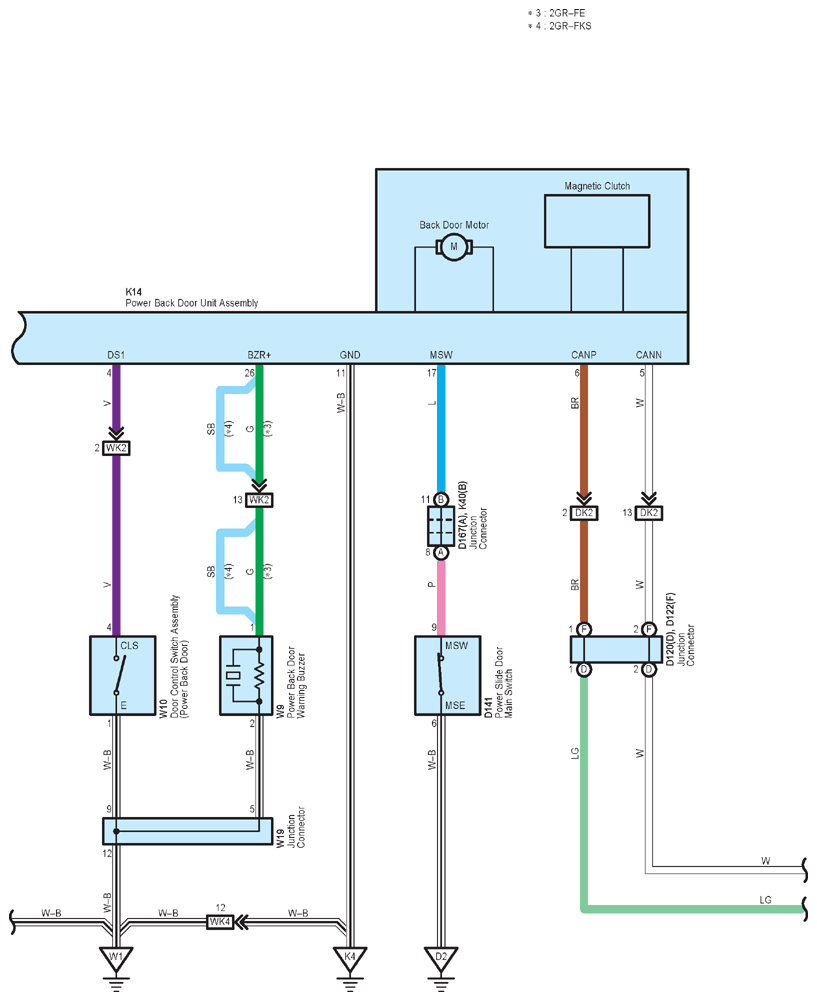

Fig 2: Power Back Door (2 Of 5)
G12221652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

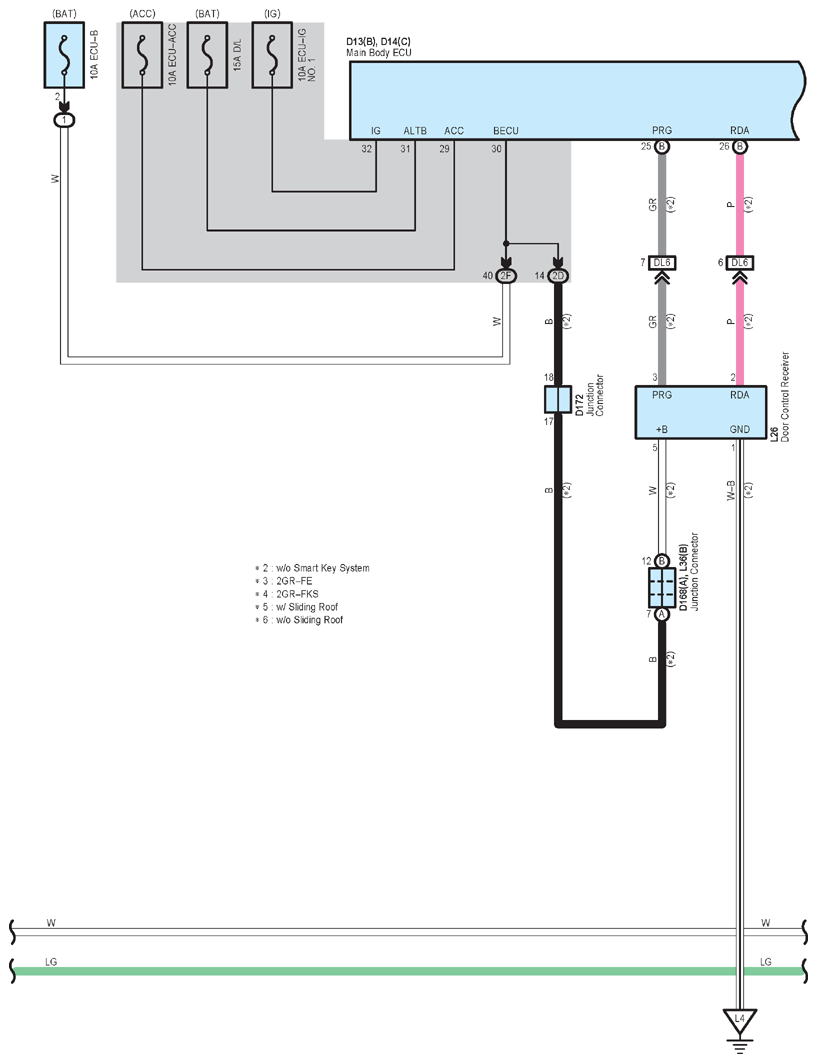

Fig 3: Power Back Door (3 Of 5)
G12221653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

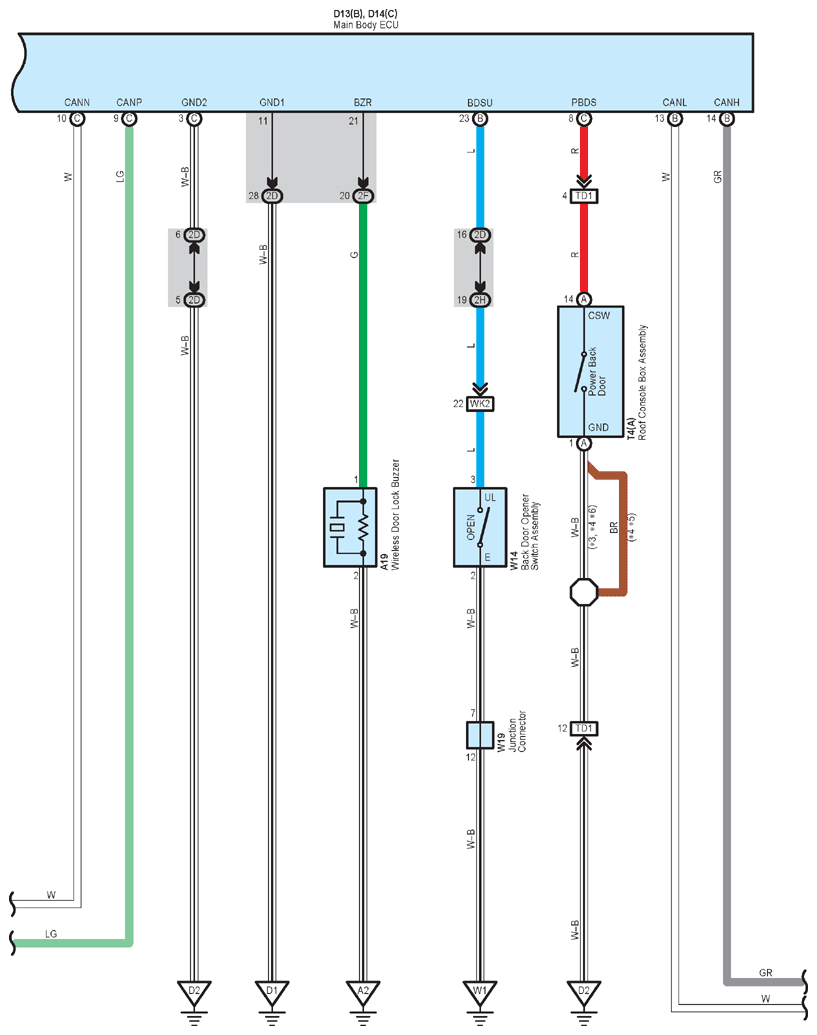

Fig 4: Power Back Door (4 Of 5)
G12221654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

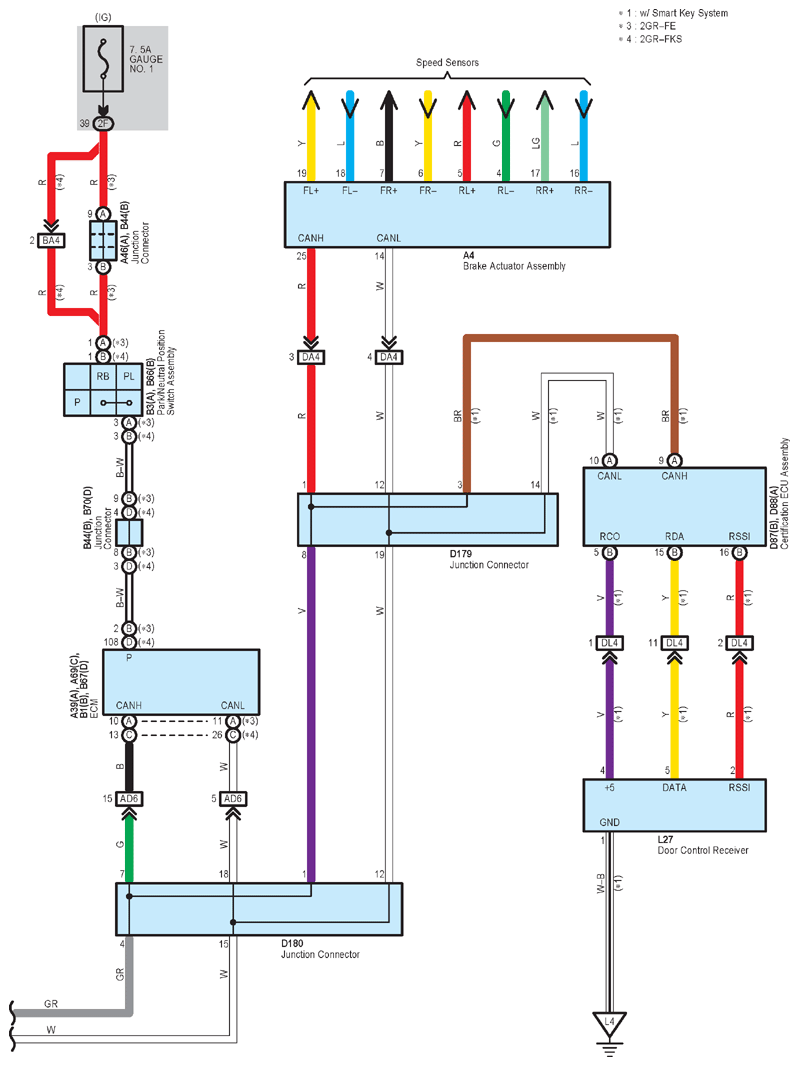

Fig 5: Power Back Door (5 Of 5)
G12221655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
