System Diagrams — 2016 Toyota Sienna LE, AWD Service Manual ~ FixVault

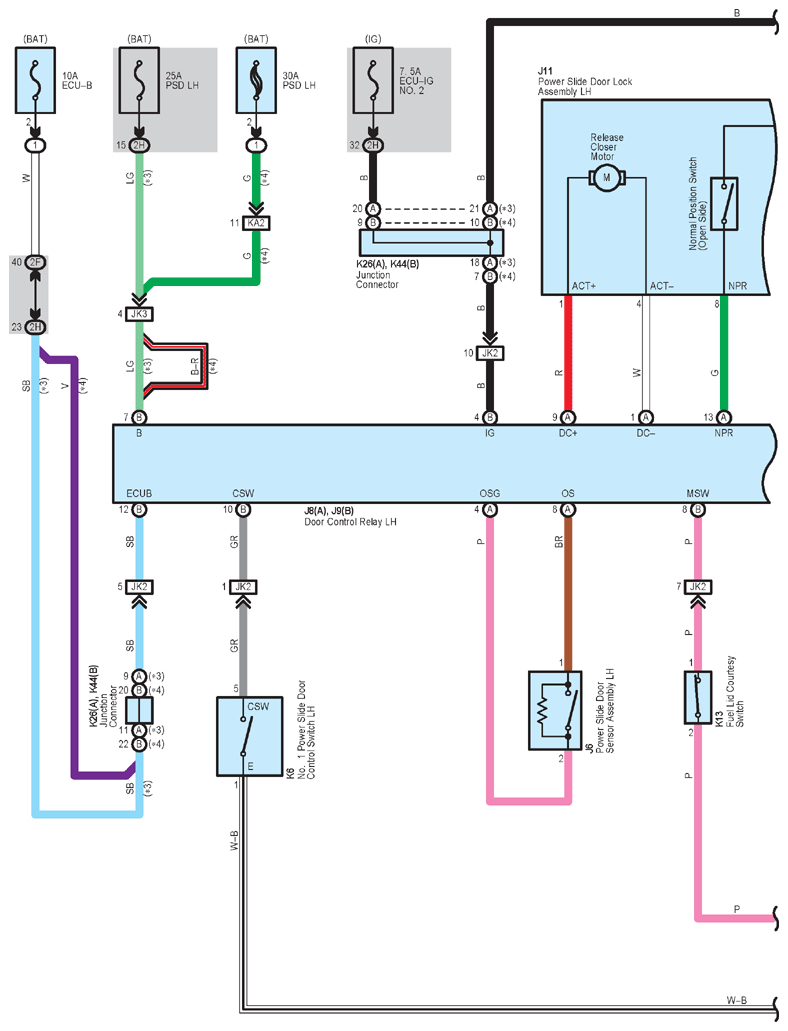

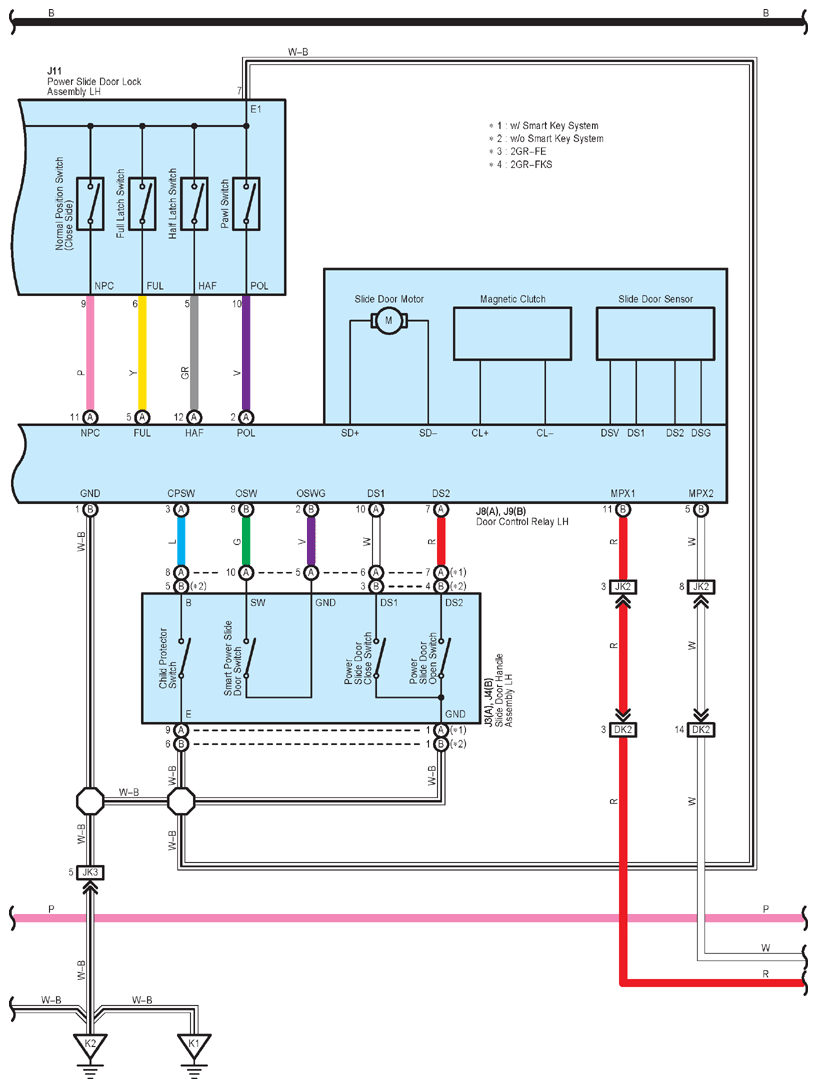

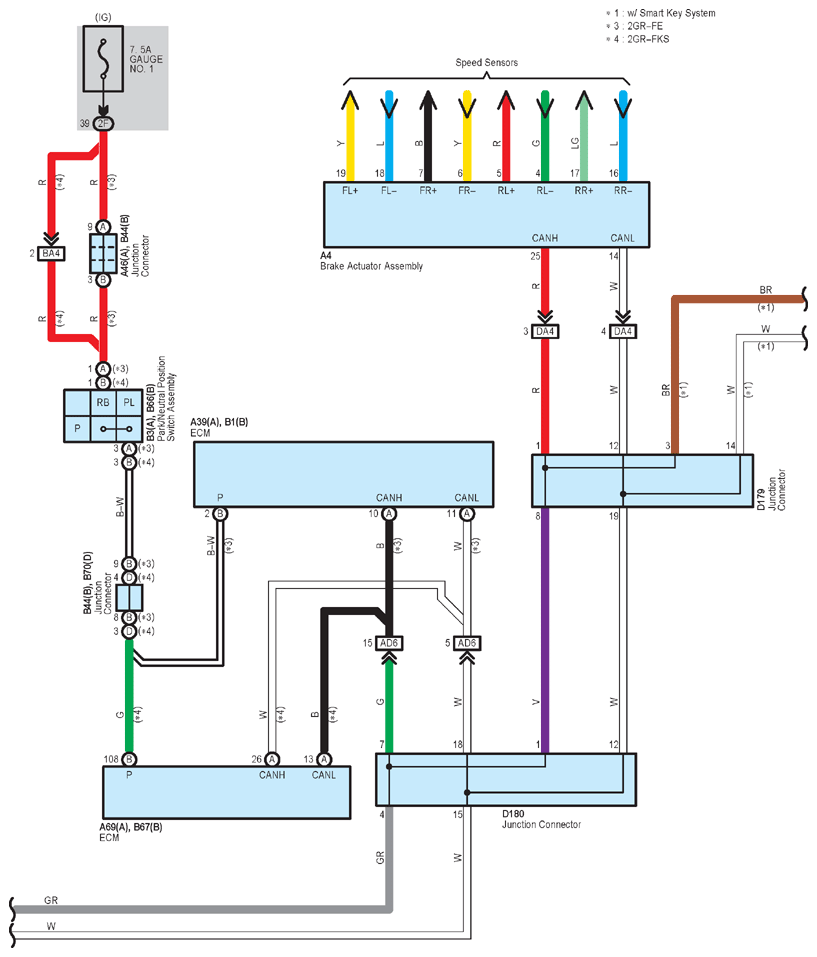

Fig 1: Power Slide Door (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

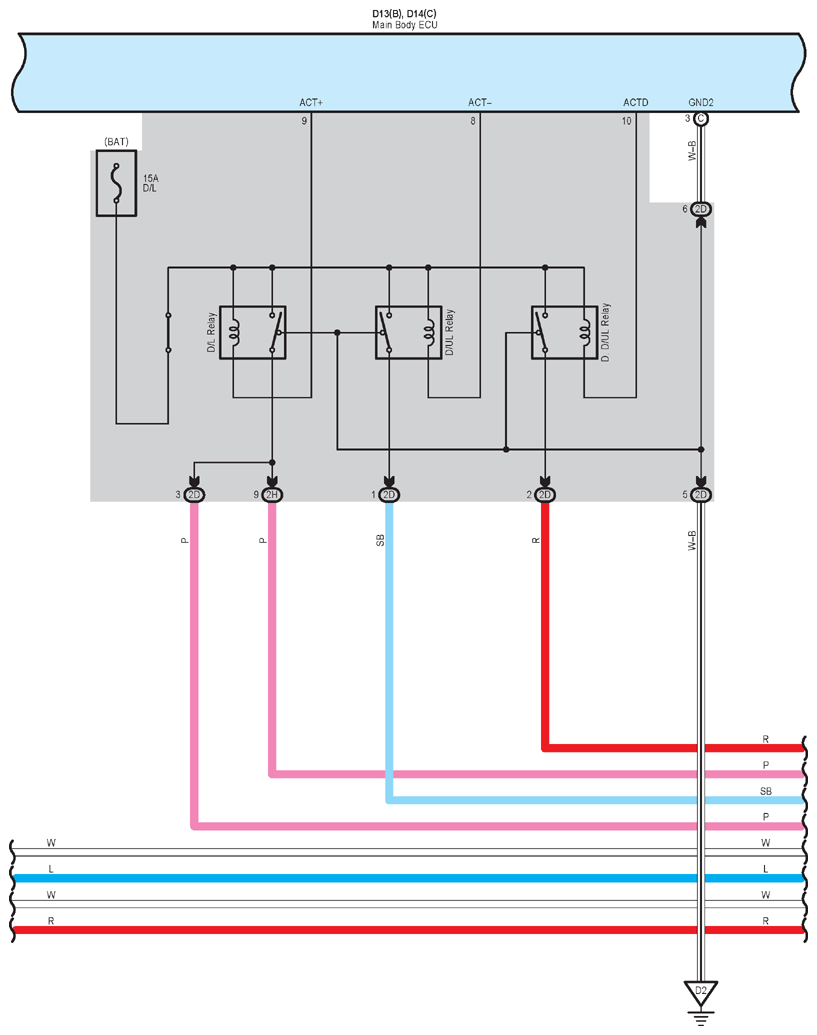

Fig 2: Power Slide Door (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

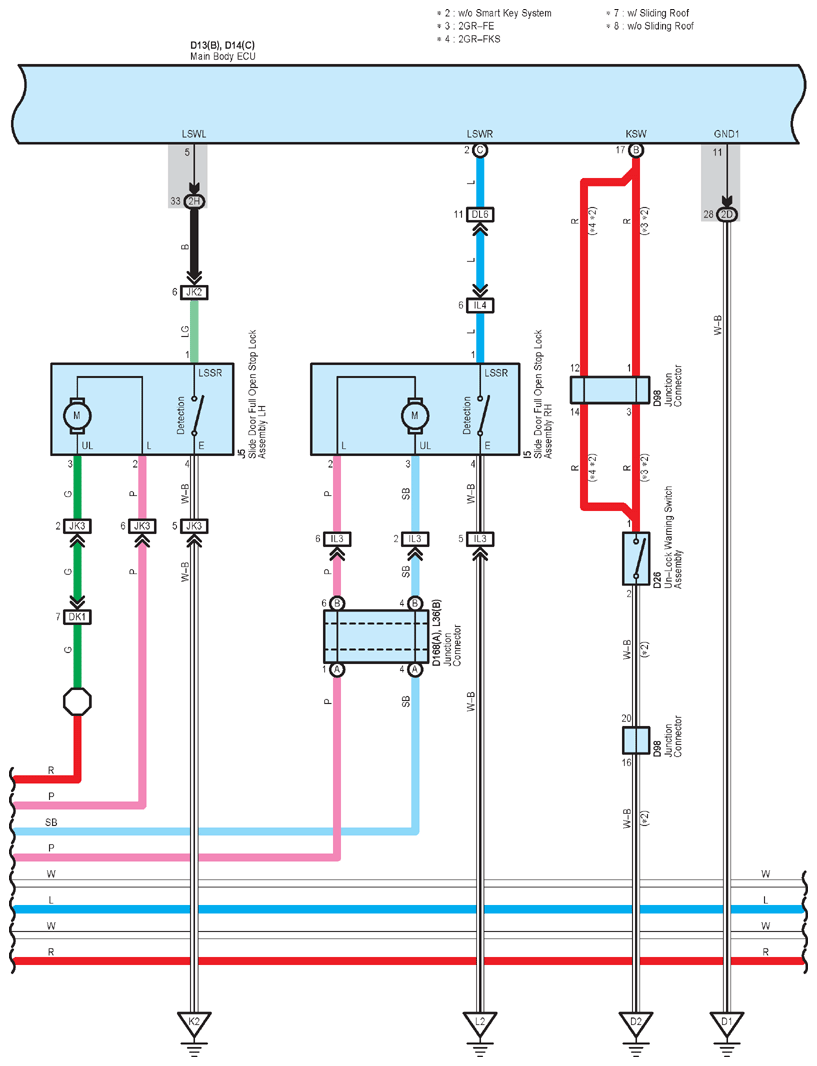

Fig 3: Power Slide Door (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

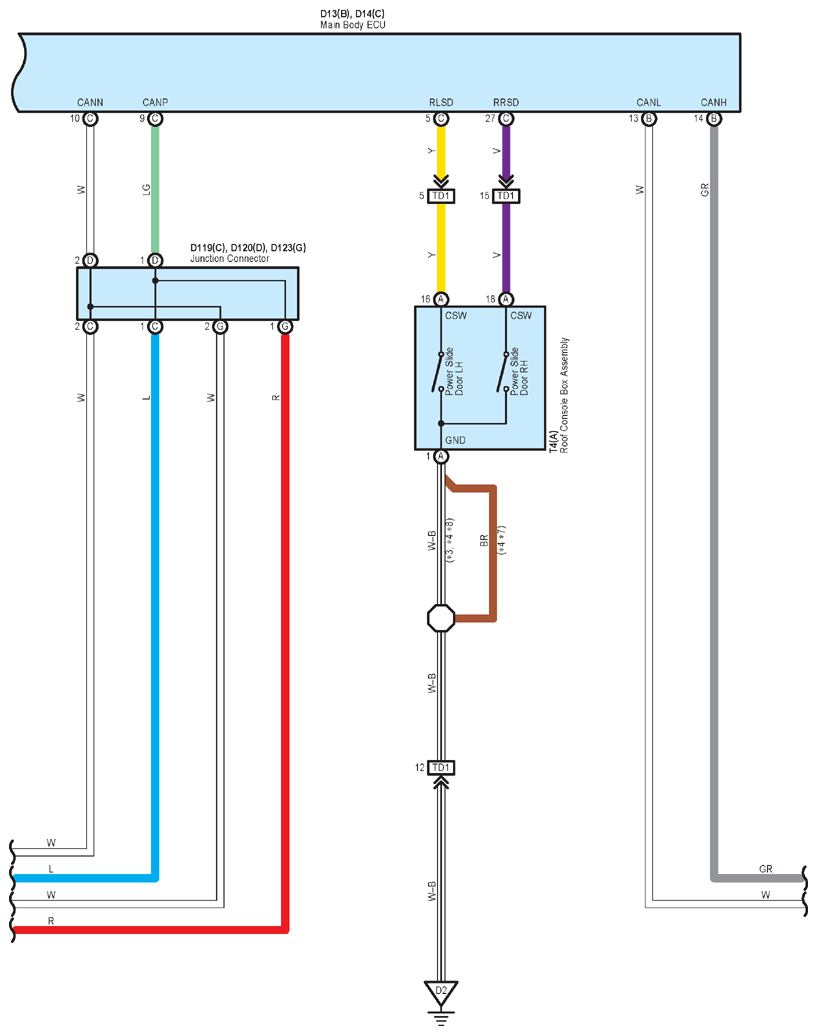

Fig 4: Power Slide Door (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

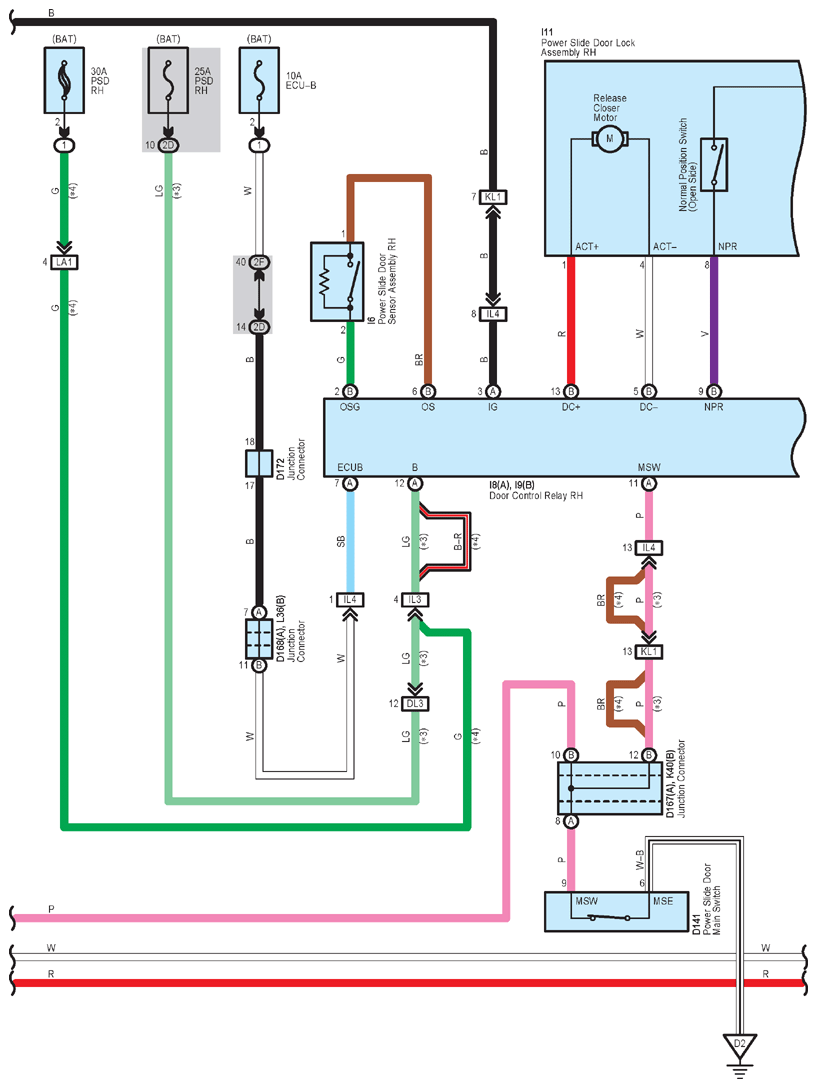

Fig 5: Power Slide Door (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

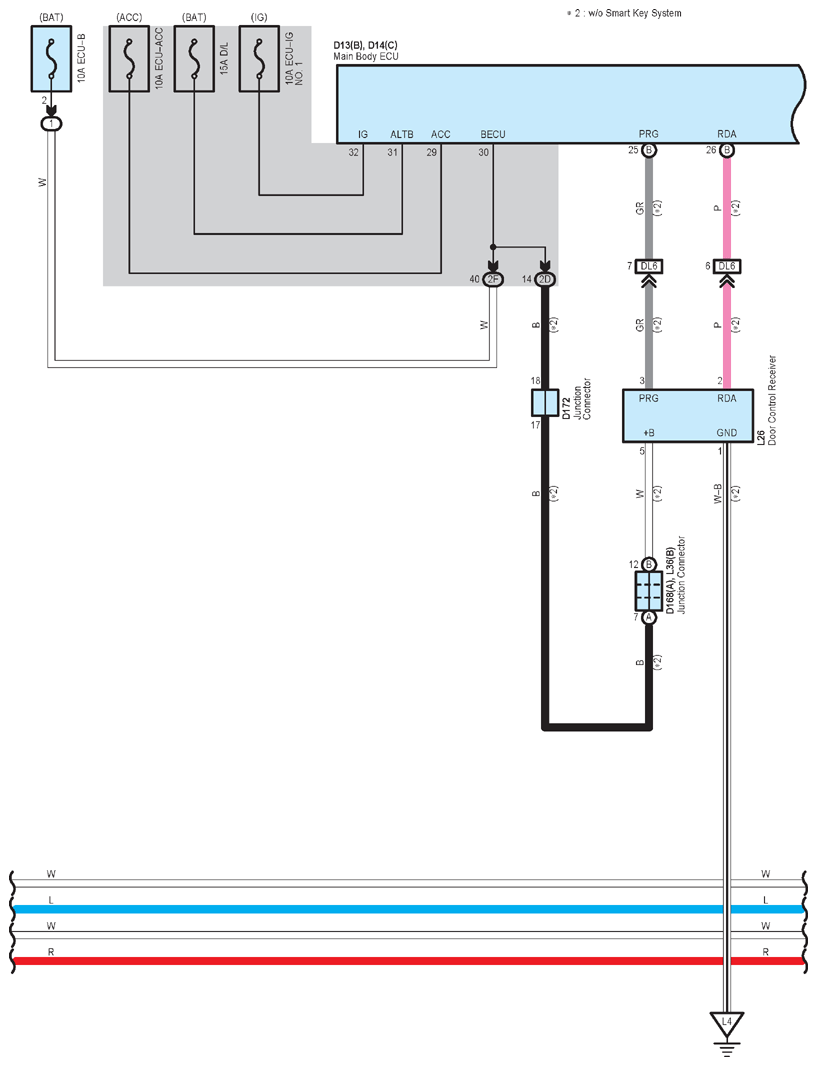

Fig 6: Power Slide Door (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

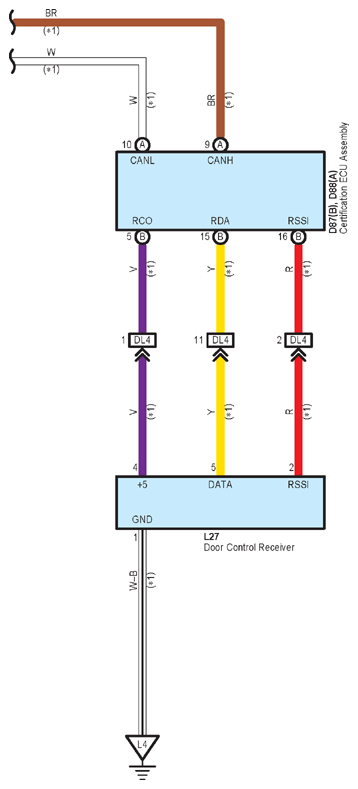

Fig 7: Power Slide Door (7 Of 10)

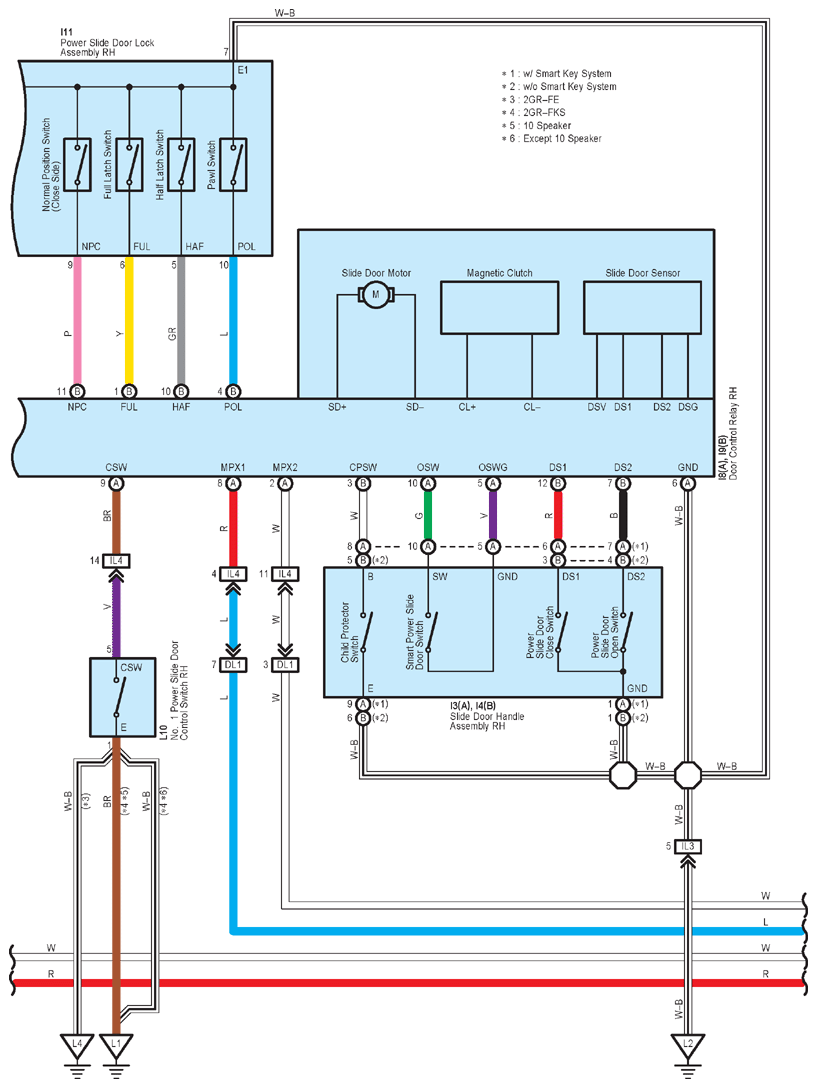

Fig 8: Power Slide Door (8 Of 10)

Fig 9: Power Slide Door (9 Of 10)

Fig 10: Power Slide Door (10 Of 10)
