System Diagrams

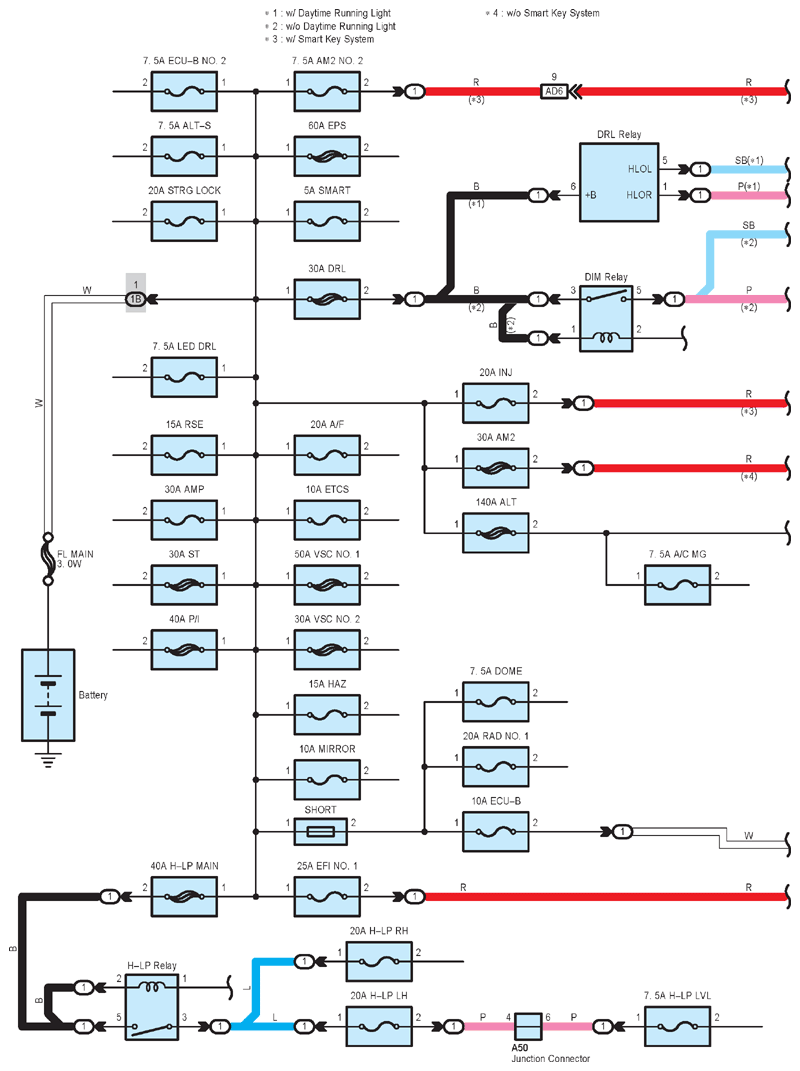

Fig 1: Power Source (2GR-FE) (1 Of 7)
G12221708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

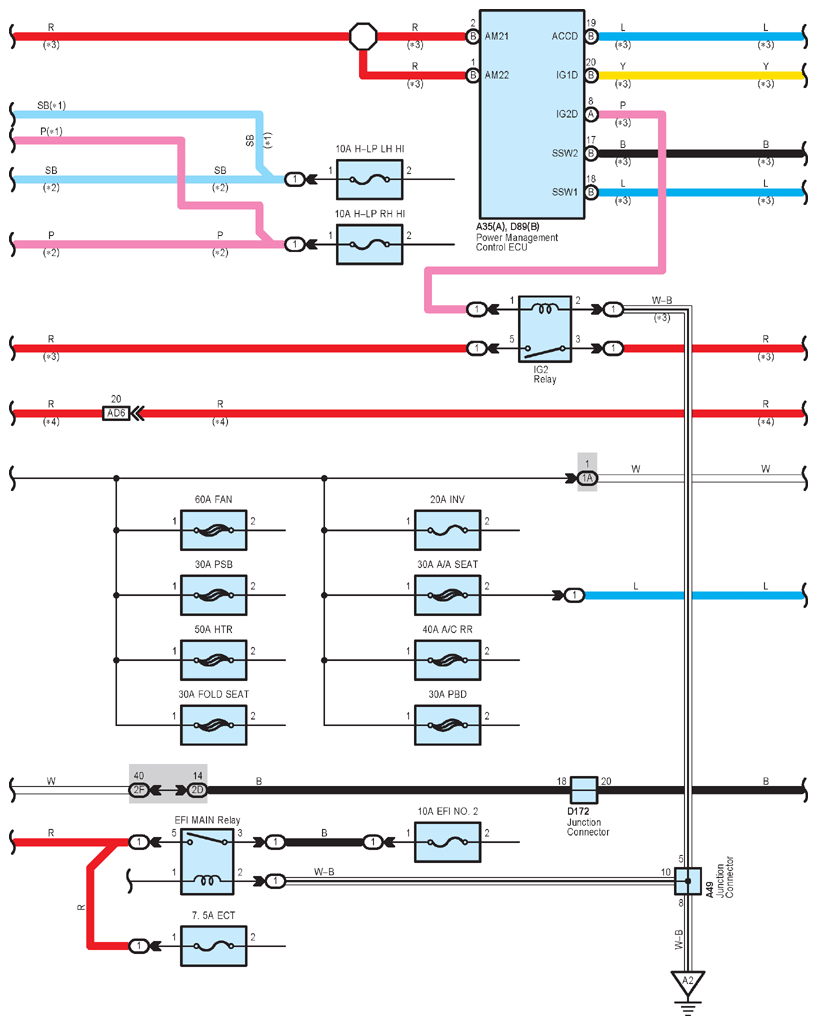

Fig 2: Power Source (2GR-FE) (2 Of 7)
G12221709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

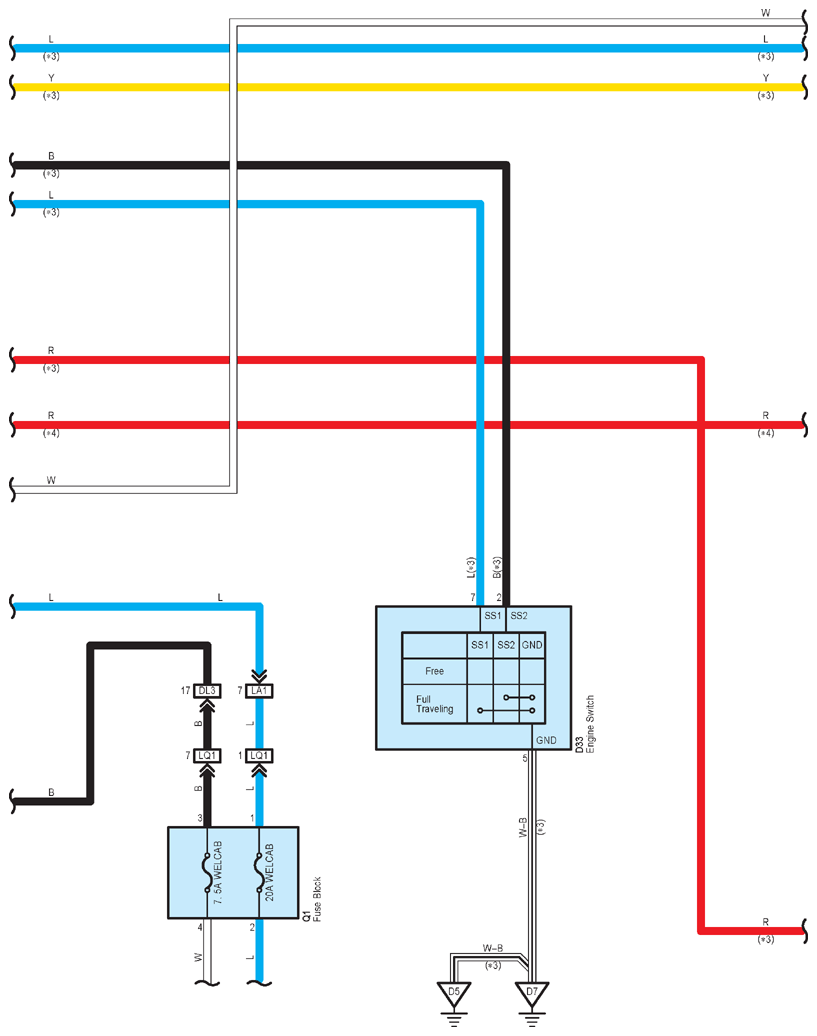

Fig 3: Power Source (2GR-FE) (3 Of 7)
G12221710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

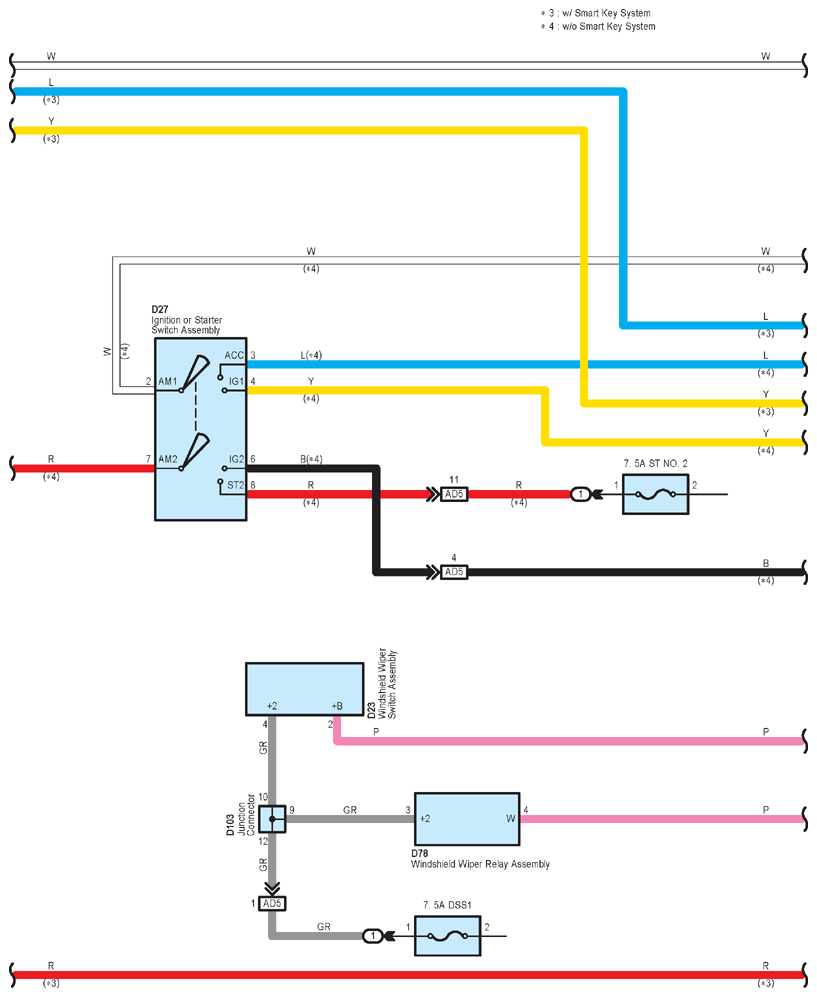

Fig 4: Power Source (2GR-FE) (4 Of 7)
G12221711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

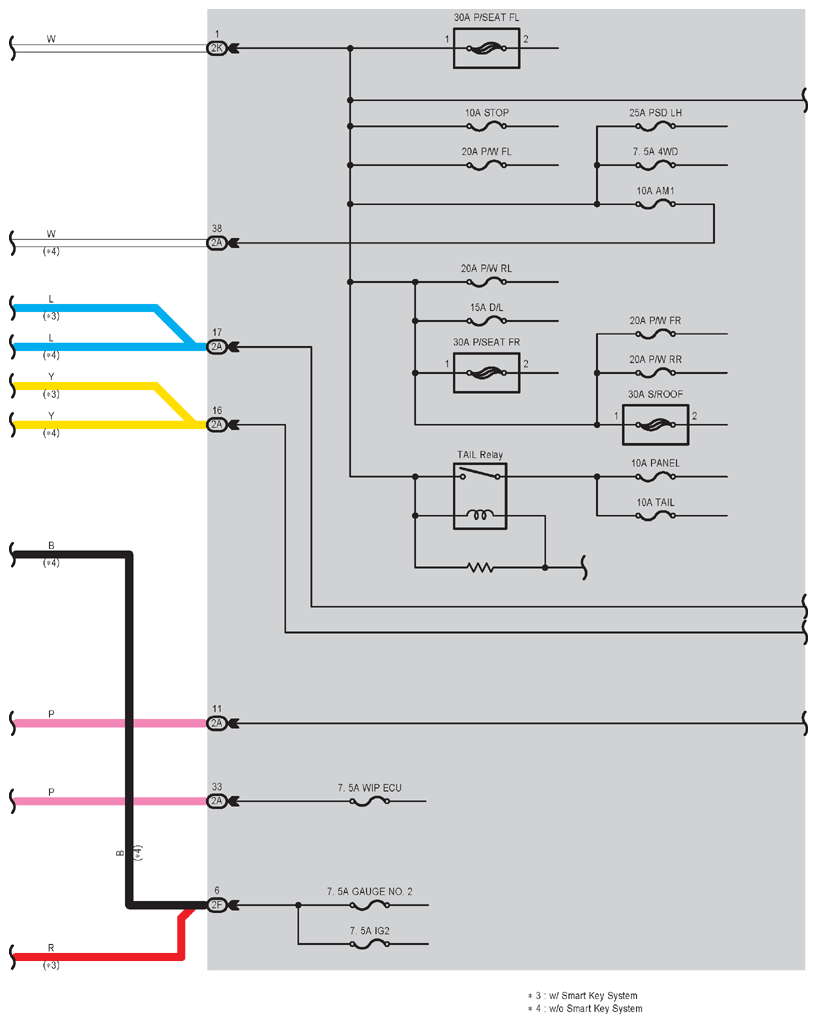

Fig 5: Power Source (2GR-FE) (5 Of 7)
G12221712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

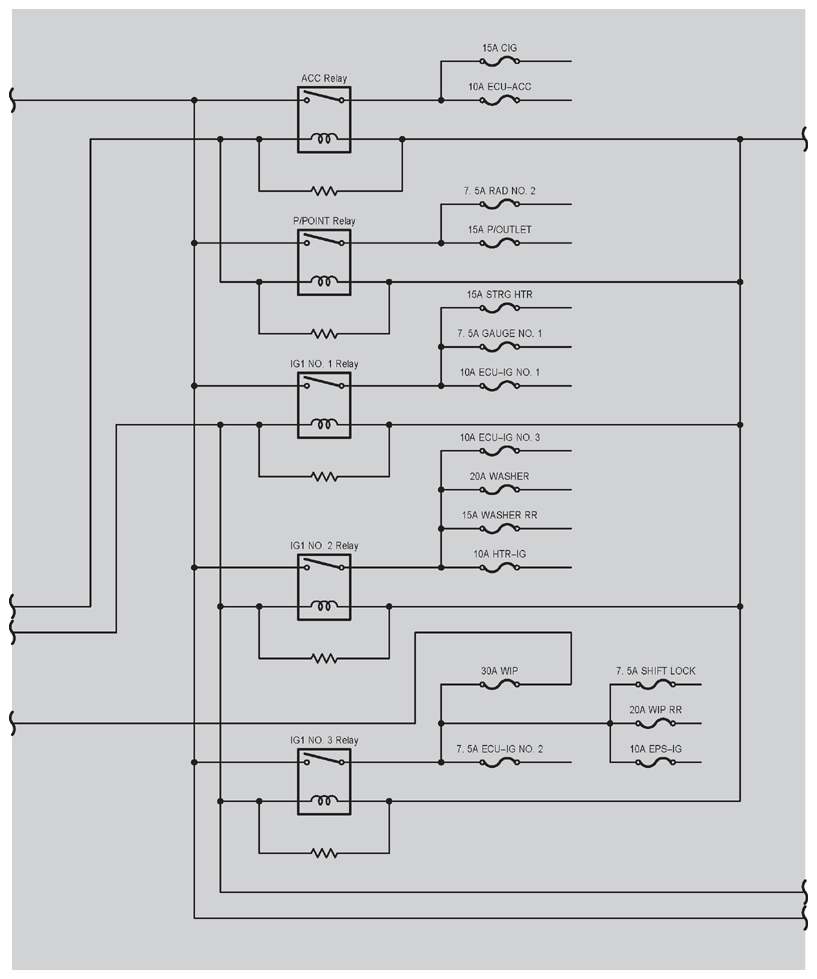

Fig 6: Power Source (2GR-FE) (6 Of 7)
G12221713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

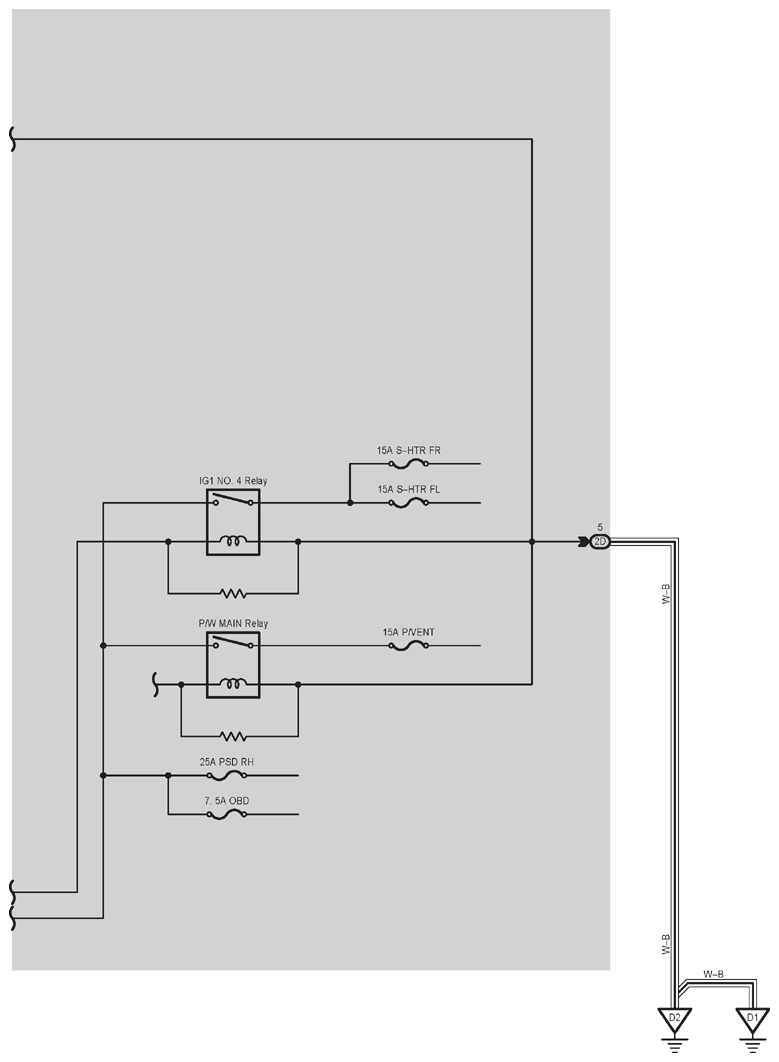

Fig 7: Power Source (2GR-FE) (7 Of 7)
G12221714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
