Ignition Coil And Spark Plug
›
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]

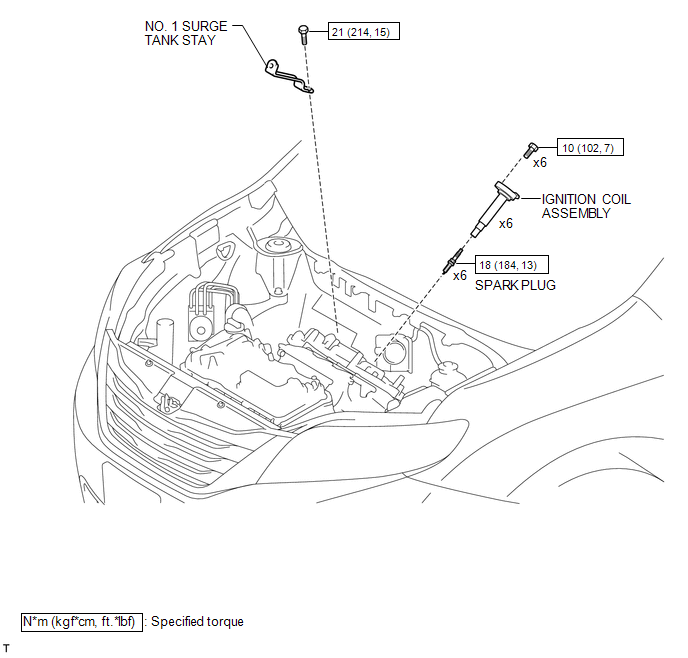

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
