Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE NO. 1 SURGE TANK STAY

    Refer to PROCEDURE - Step 4

  3. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 3 wire harness clamps.
      GTY298540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 ignition coil connectors.
      GTY302713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 bolts and 6 ignition coils.
      GTY307940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

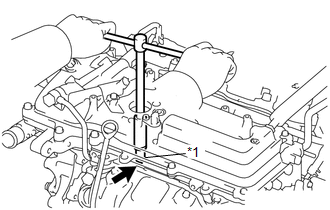

  4. REMOVE SPARK PLUG
    1. Using a 16 mm spark plug wrench, remove the 6 spark plugs.
      GTY702407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 16 mm Spark Plug Wrench
