Engine Control System [2GR-FE] (Service Information)
›
Mass Air Flow Meter
›
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]

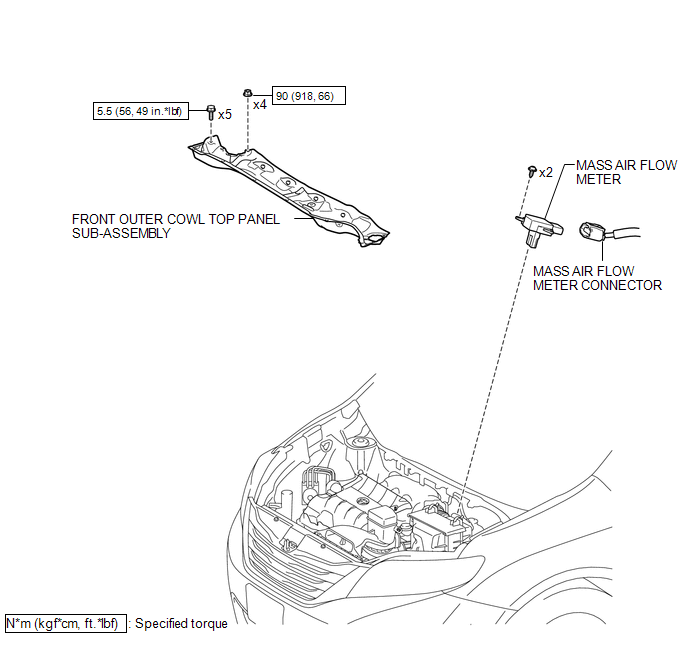

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
