Engine Control System [2GR-FE] (Service Information)
›
Knock Sensor
›
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]

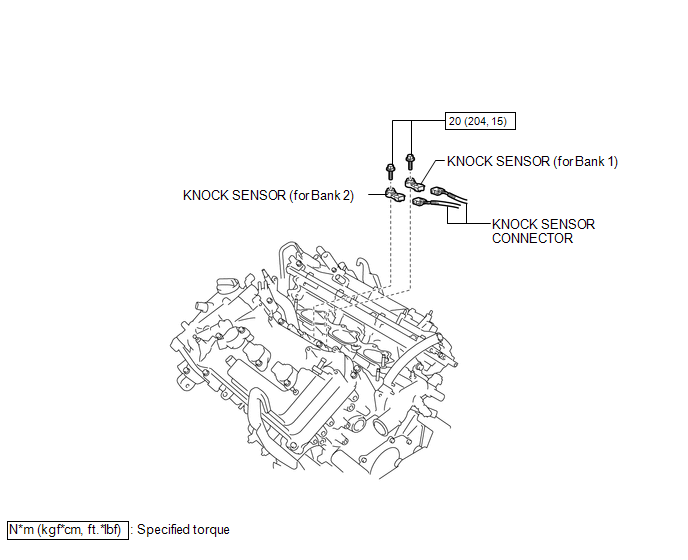

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
