Engine Coolant Temperature Sensor
›
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]

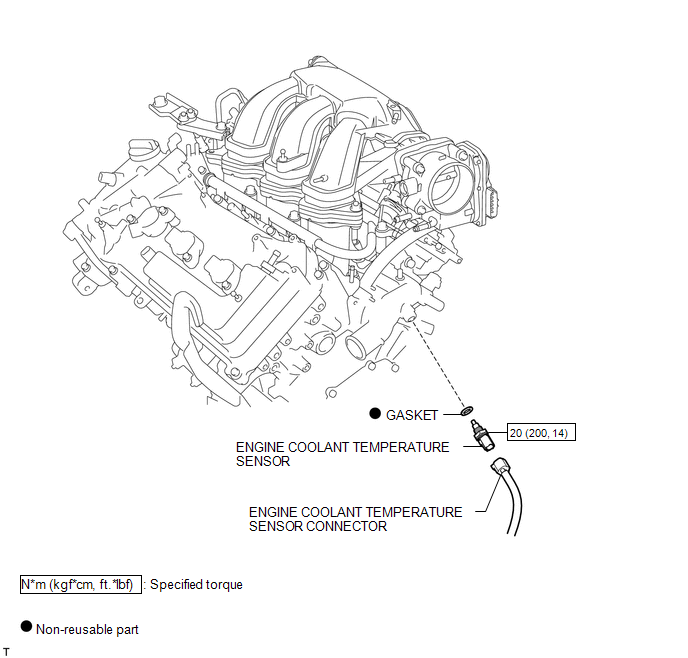

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
