System Diagrams

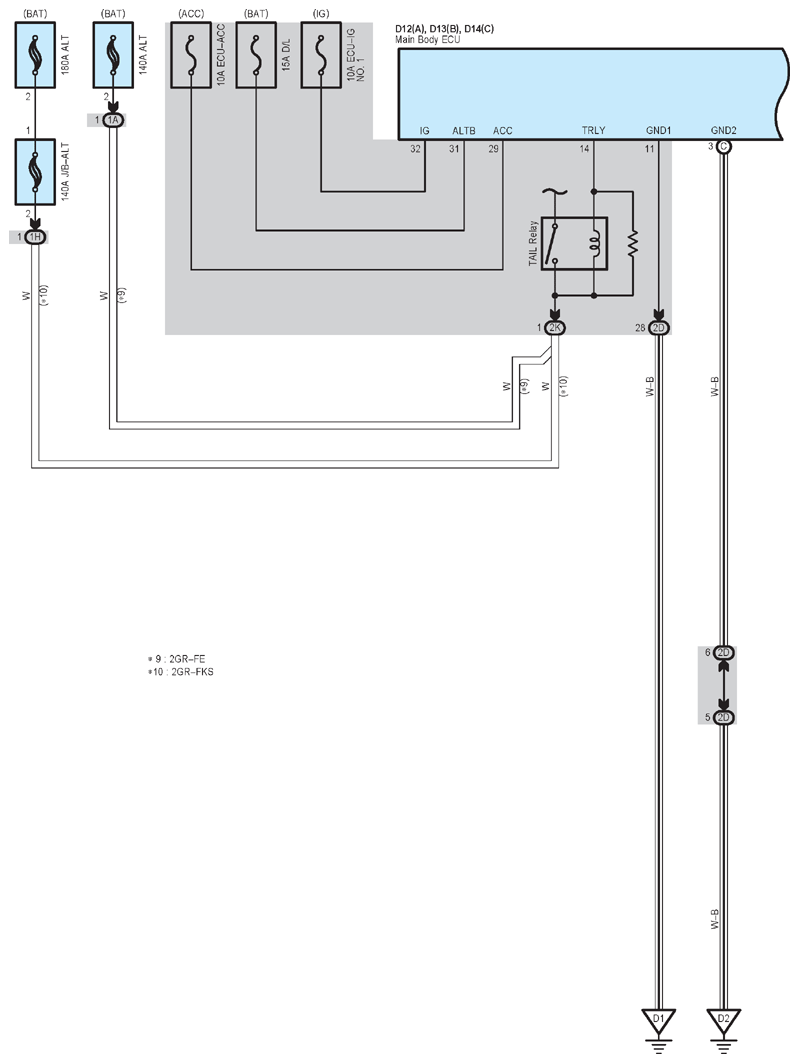

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 5)
G12221250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

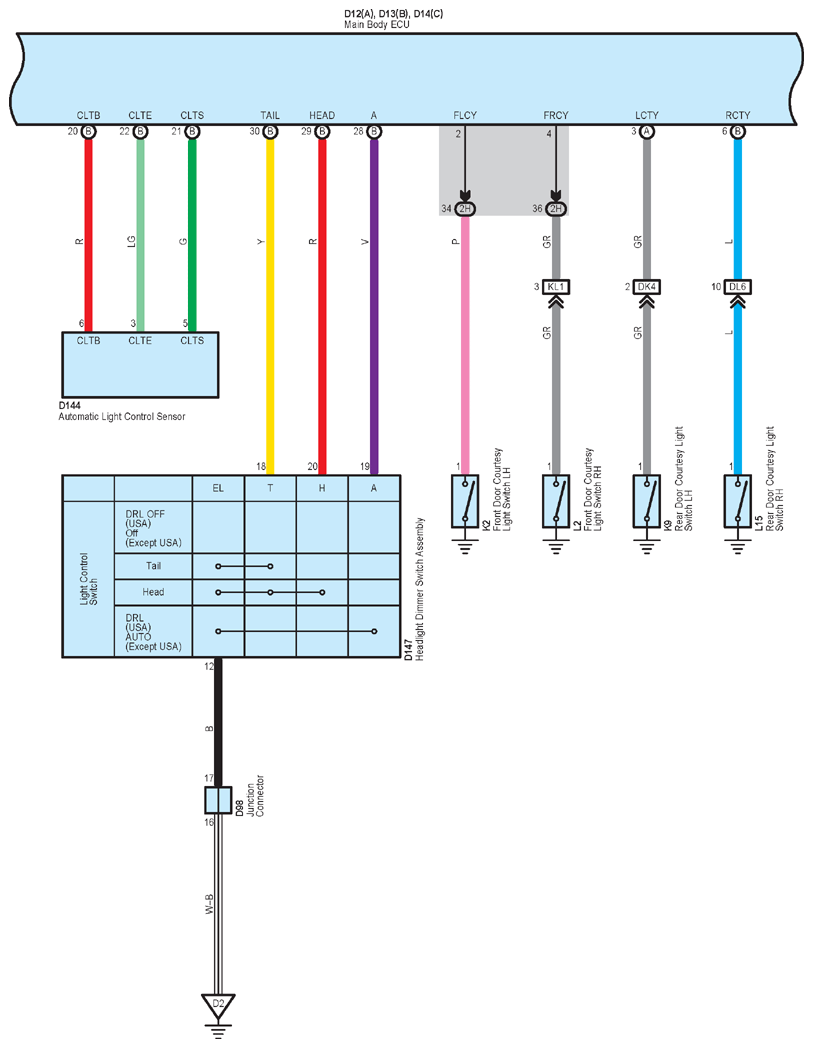

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 5)
G12221251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

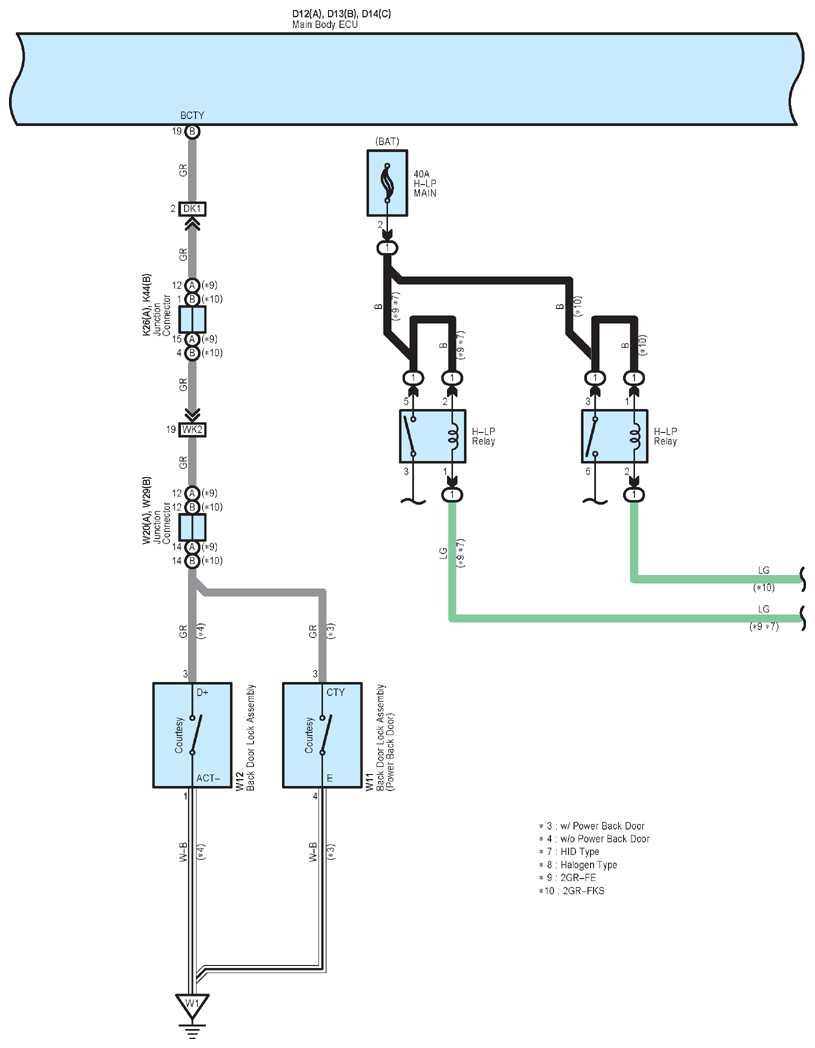

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 5)
G12221252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

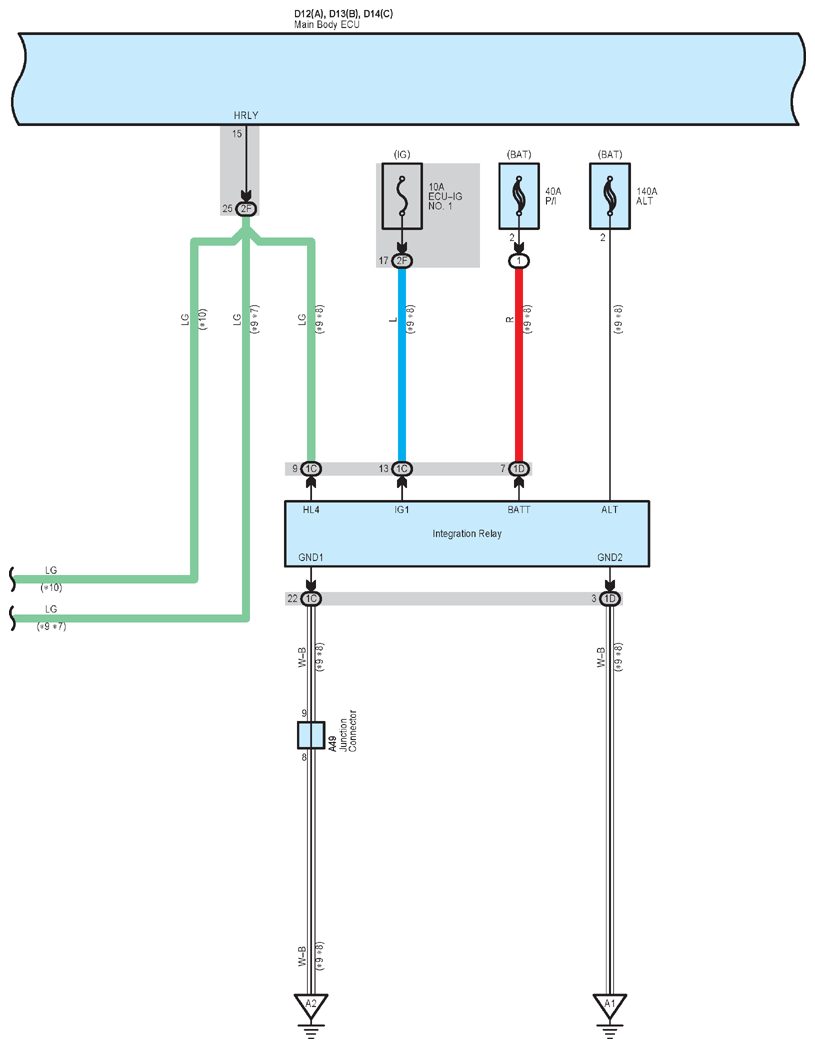

Fig 4: Automatic Light Control, Light Auto Turn Off System (4 Of 5)
G12221253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

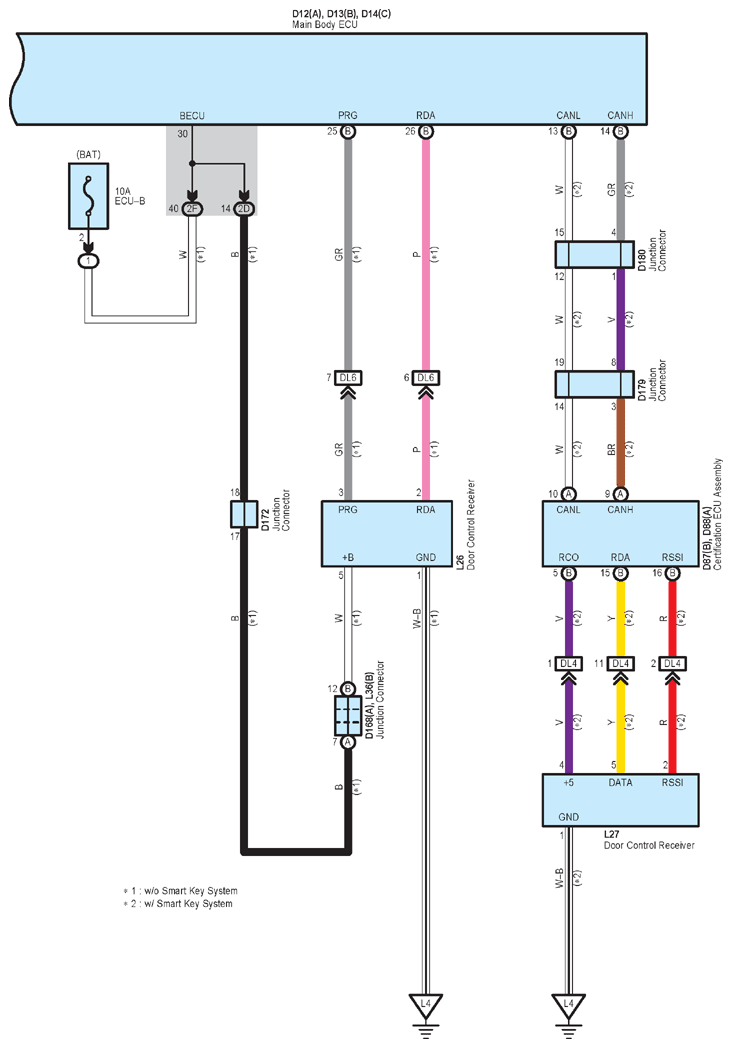

Fig 5: Automatic Light Control, Light Auto Turn Off System (5 Of 5)
G12221254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
