Headlight Beam Level Control
›
Connectors
Headlight Beam Level Control: Connectors

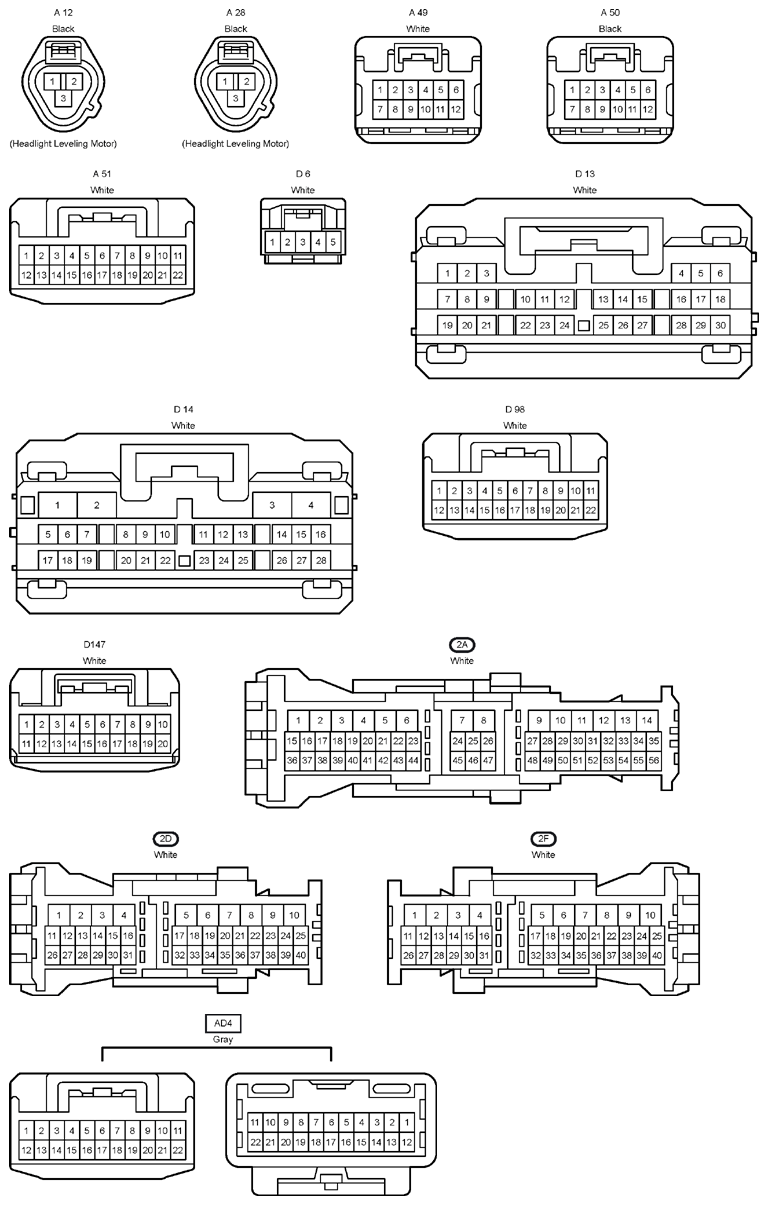

Fig 1: Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
