EPS - Hatchback
›
System Diagrams
System Diagrams

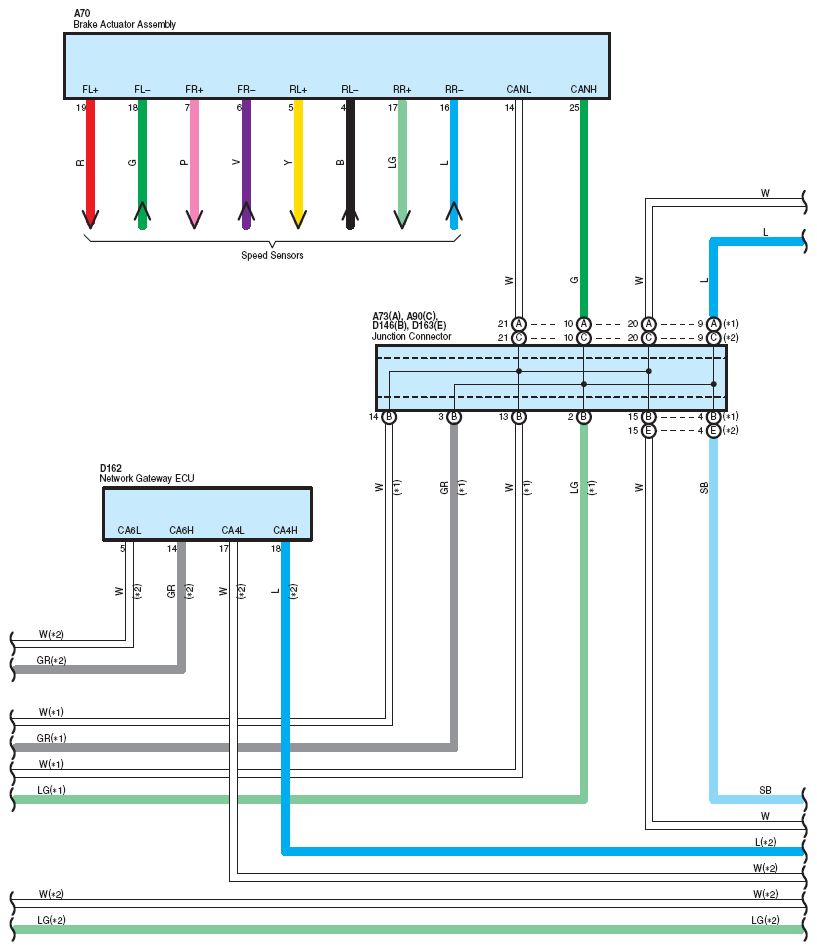

Fig 1: EPS - Hatchback (1 Of 3)

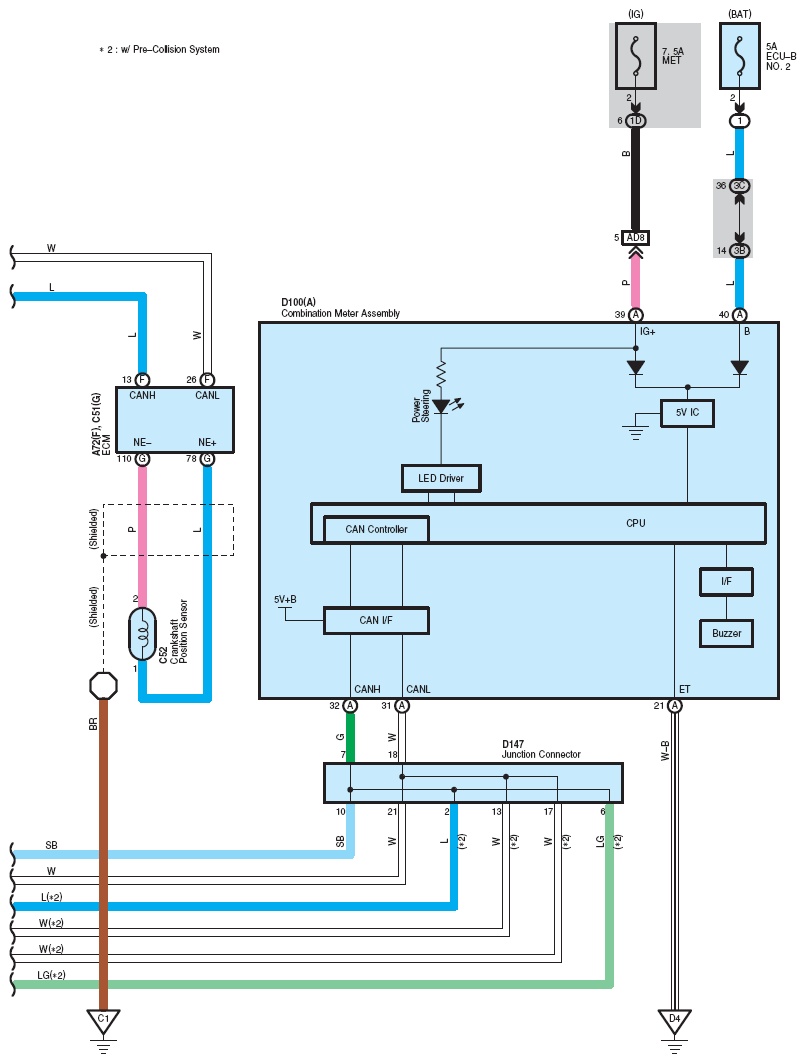

Fig 2: EPS - Hatchback (2 Of 3)

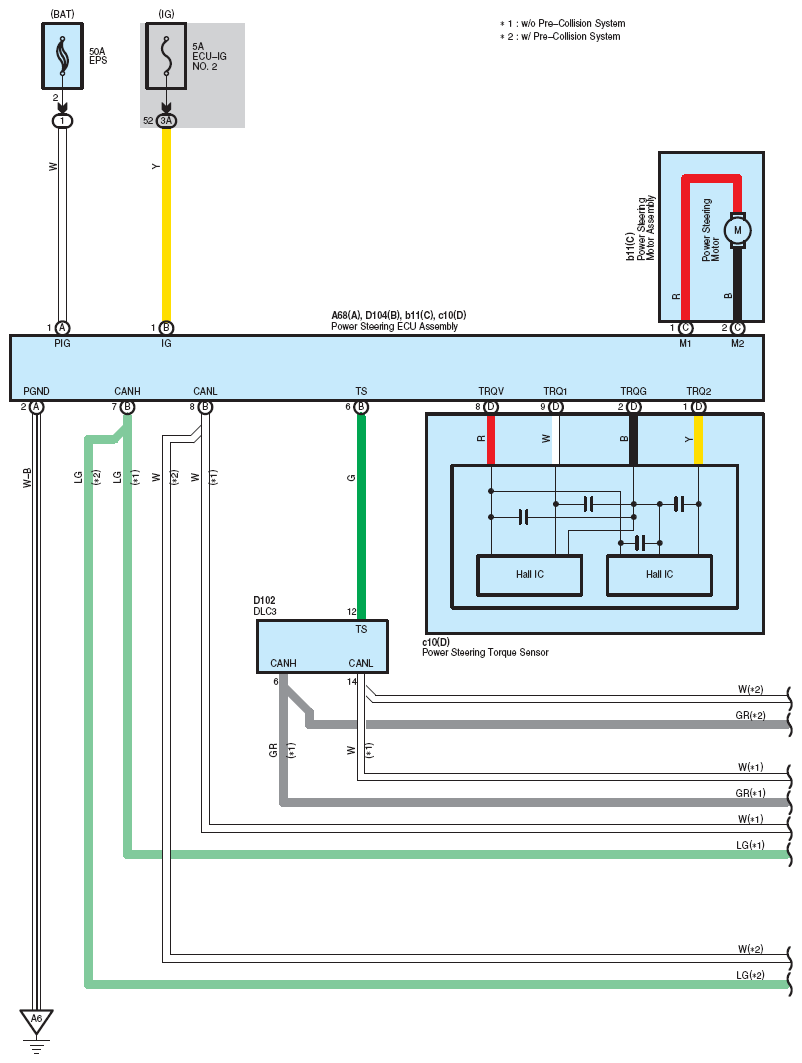

Fig 3: EPS - Hatchback (3 Of 3)
