System Diagrams

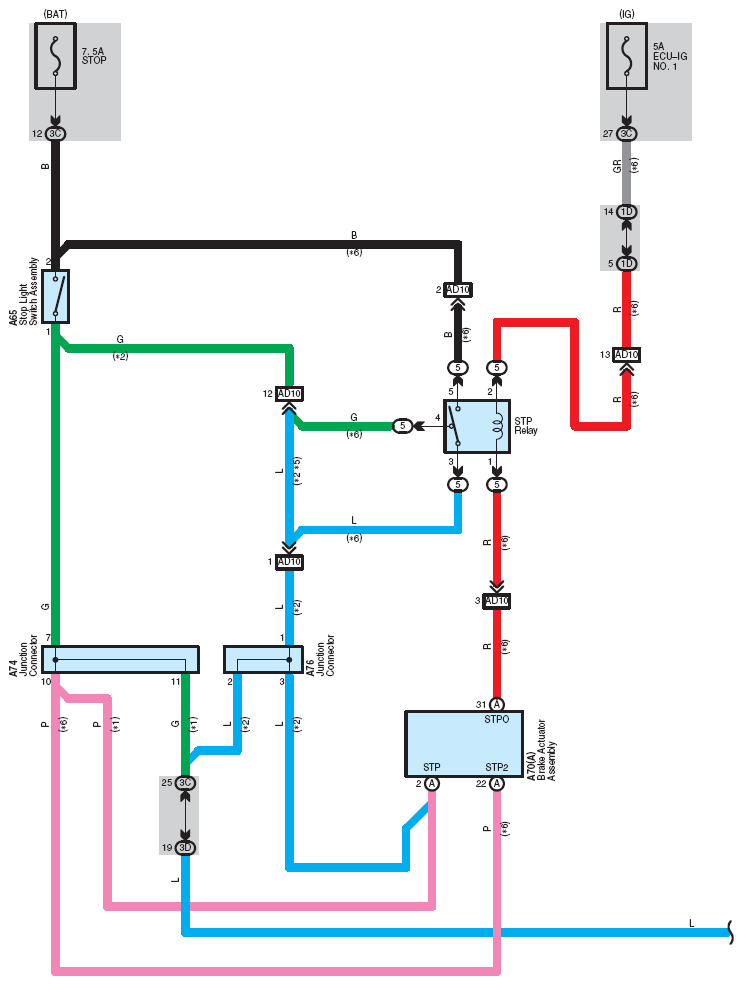

Fig 1: Stop Light - Hatchback (1 Of 2)
G12220190

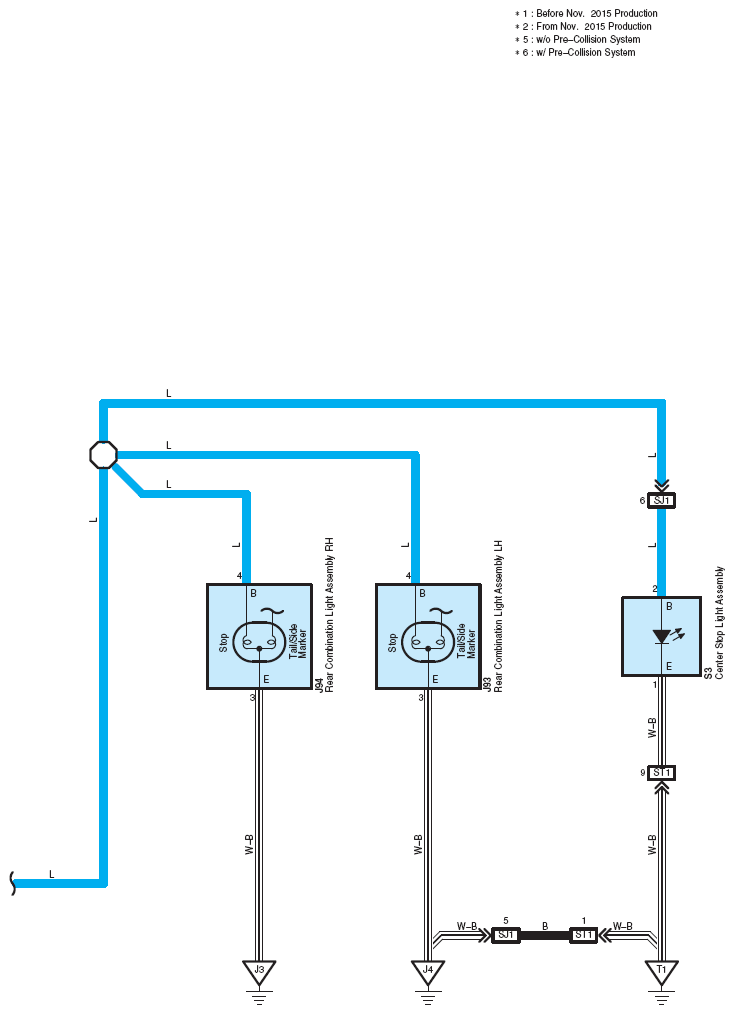

Fig 2: Stop Light - Hatchback (2 Of 2)
G12220191
