Removal [08/2015 - ]: Procedure

  1. REMOVE DRIVE MONITOR SWITCH

    See step  1

  2. REMOVE MAP LIGHT ASSEMBLY

    See step  2

  3. REMOVE VSC OFF SWITCH

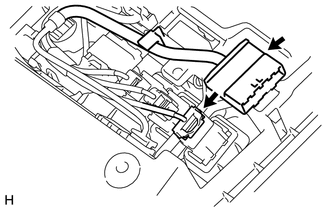

    1. Disconnect the 2 connectors.
      GTY736524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the map light assembly.
      GTY212914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.
