Toyota
›
2017
›
4Runner TRD Pro
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Data Link Connector 3
›
System Diagrams
System Diagrams

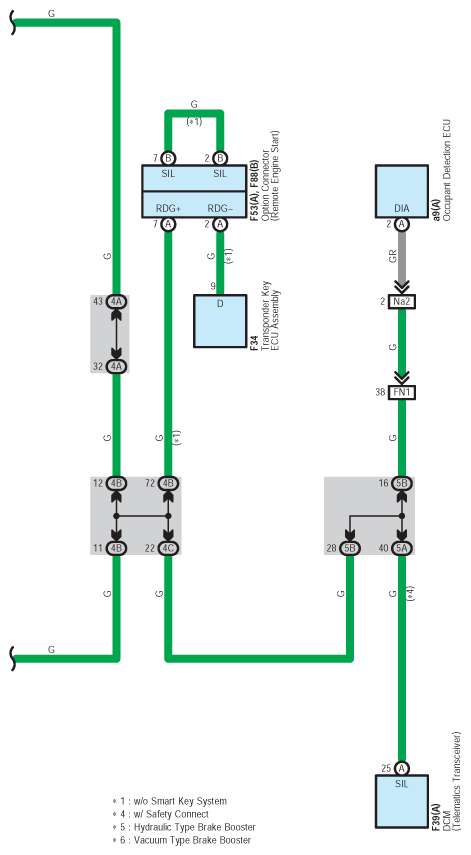

Fig 1: Data Link Connector 3 (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

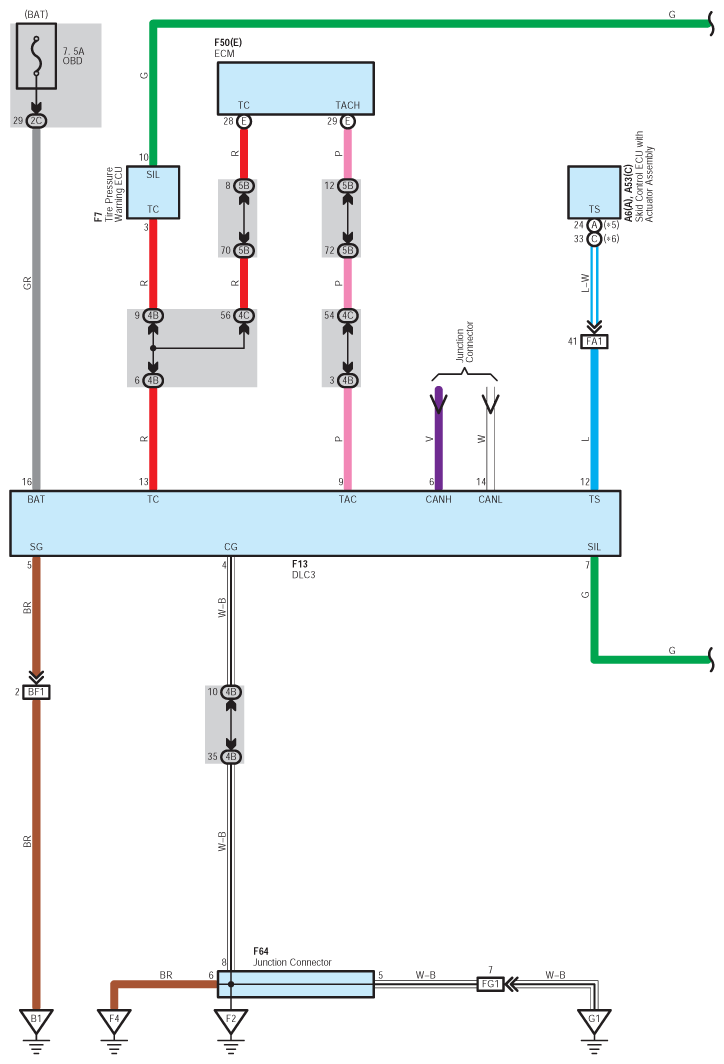

Fig 2: Data Link Connector 3 (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
