System Diagrams

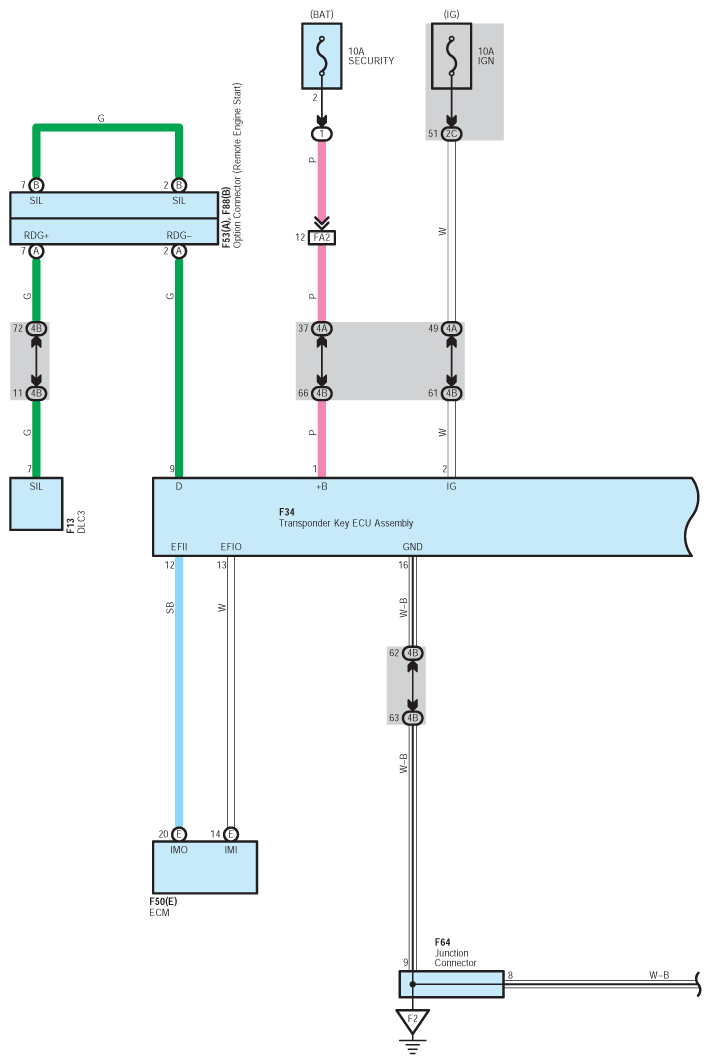

Fig 1: Engine Immobilizer System (W/O Smart Key System) (1 Of 2)
G12198408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

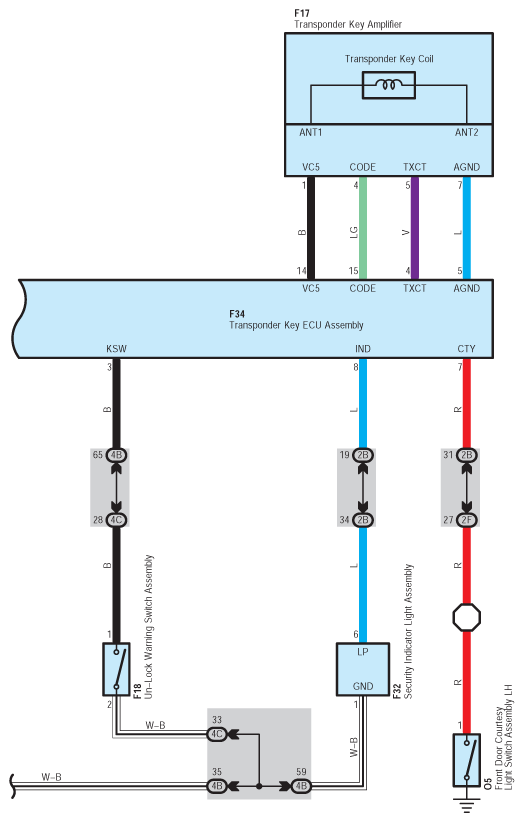

Fig 2: Engine Immobilizer System (W/O Smart Key System) (2 Of 2)
G12198409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
