System Diagrams

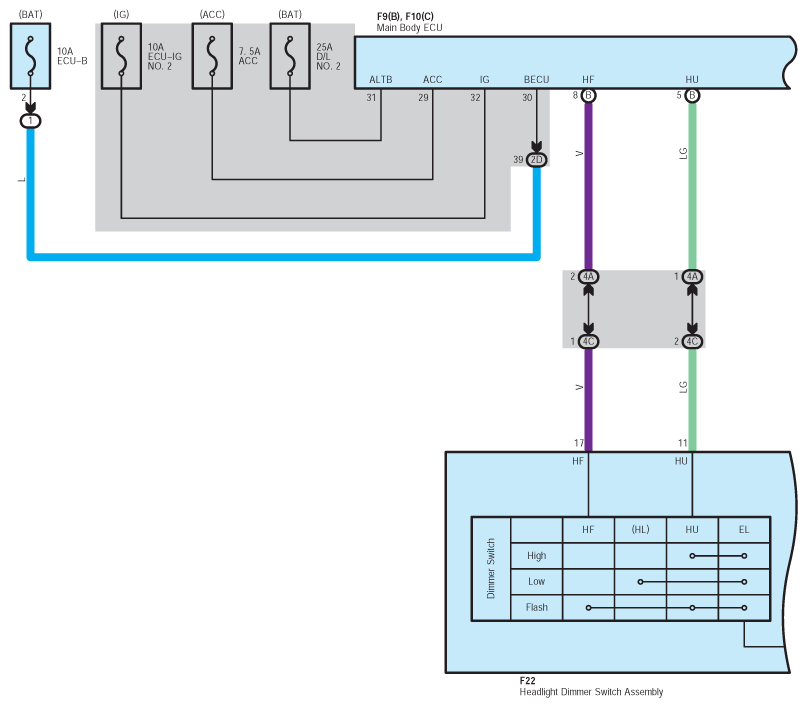

Fig 1: Front Fog Light (1 Of 5)
G12198412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

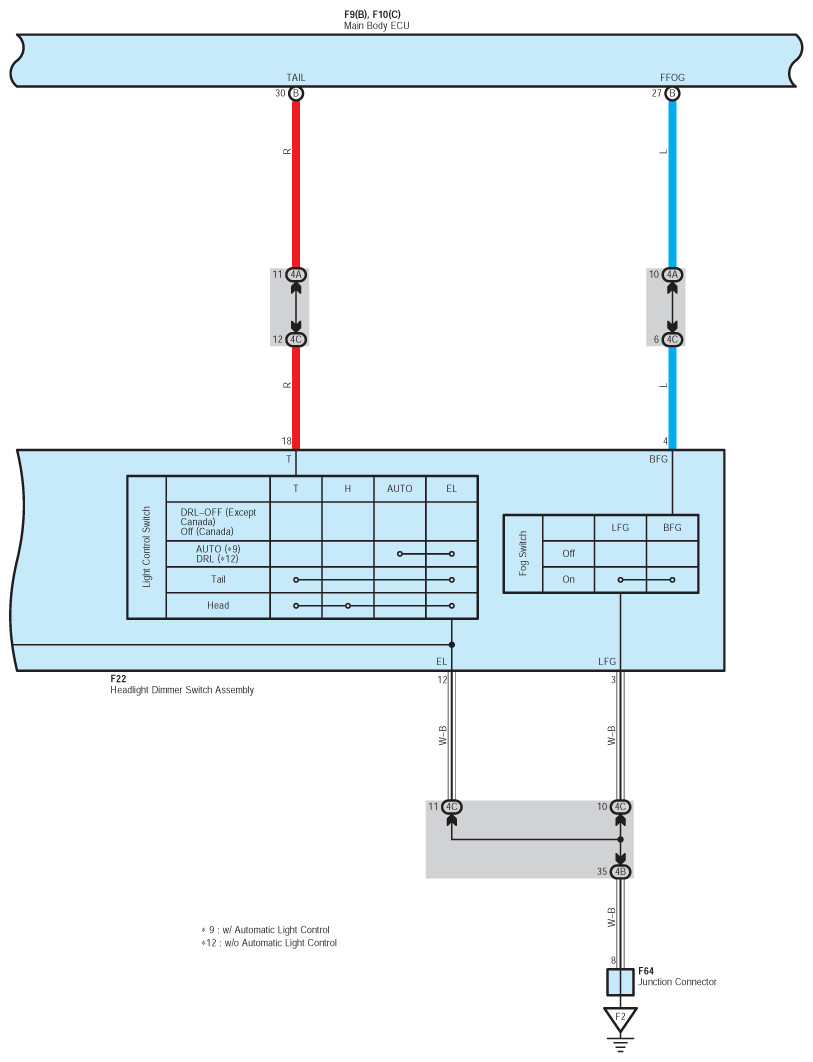

Fig 2: Front Fog Light (2 Of 5)
G12198413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

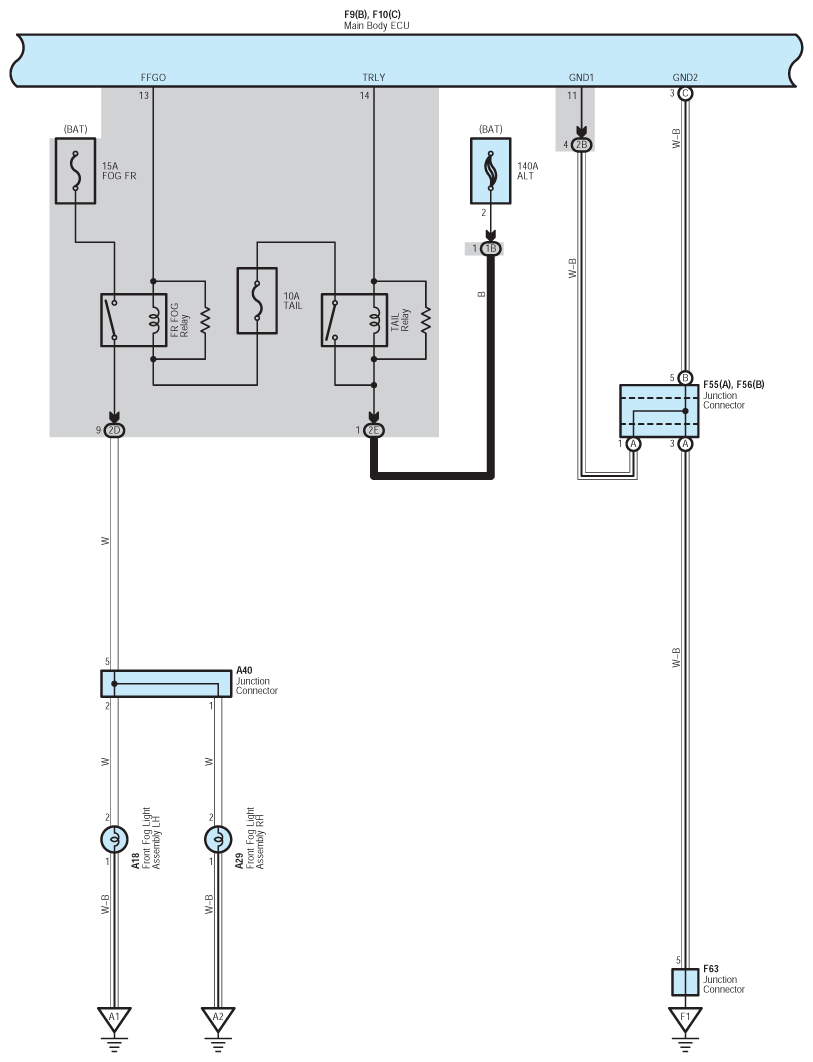

Fig 3: Front Fog Light (3 Of 5)
G12198414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Fog Light (4 Of 5)
G12198415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

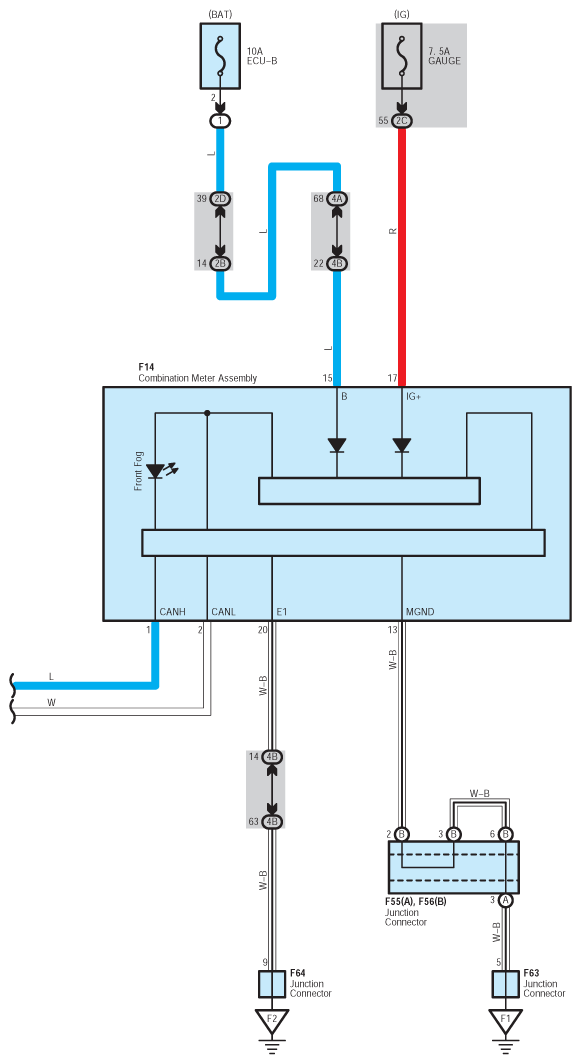

Fig 5: Front Fog Light (5 Of 5)
G12198416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
