Key Reminder (W/O Smart Key System)
›
System Diagrams
System Diagrams

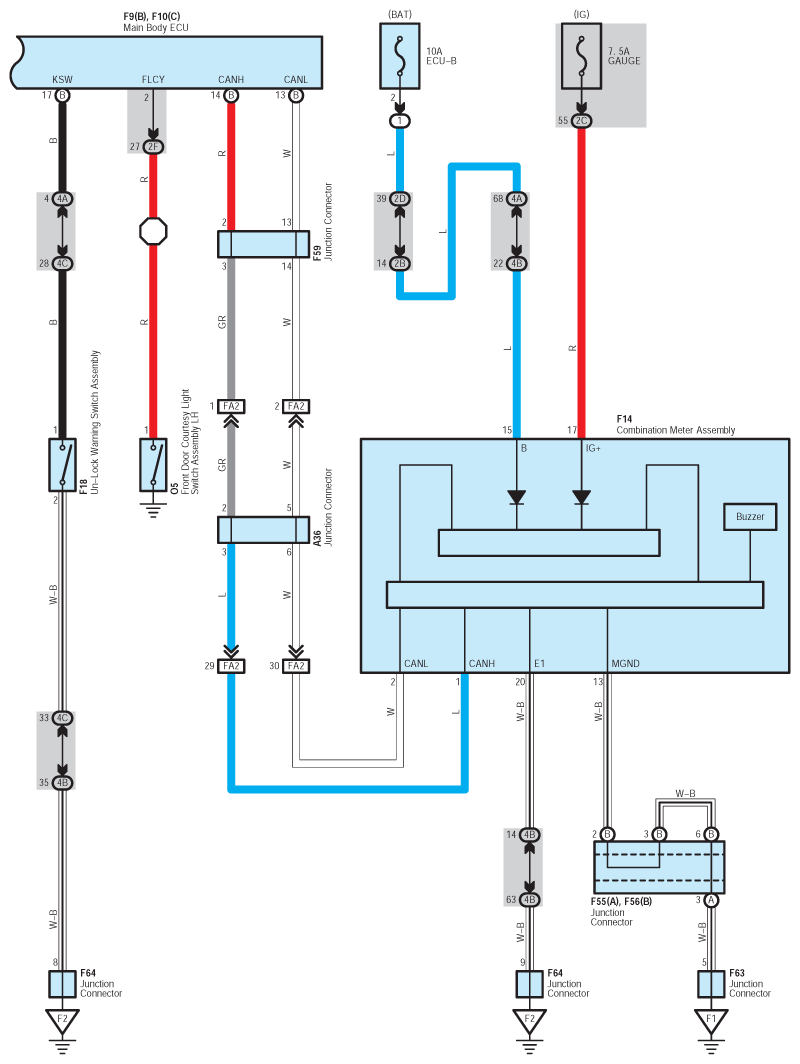

Fig 1: Key Reminder (W/O Smart Key System) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

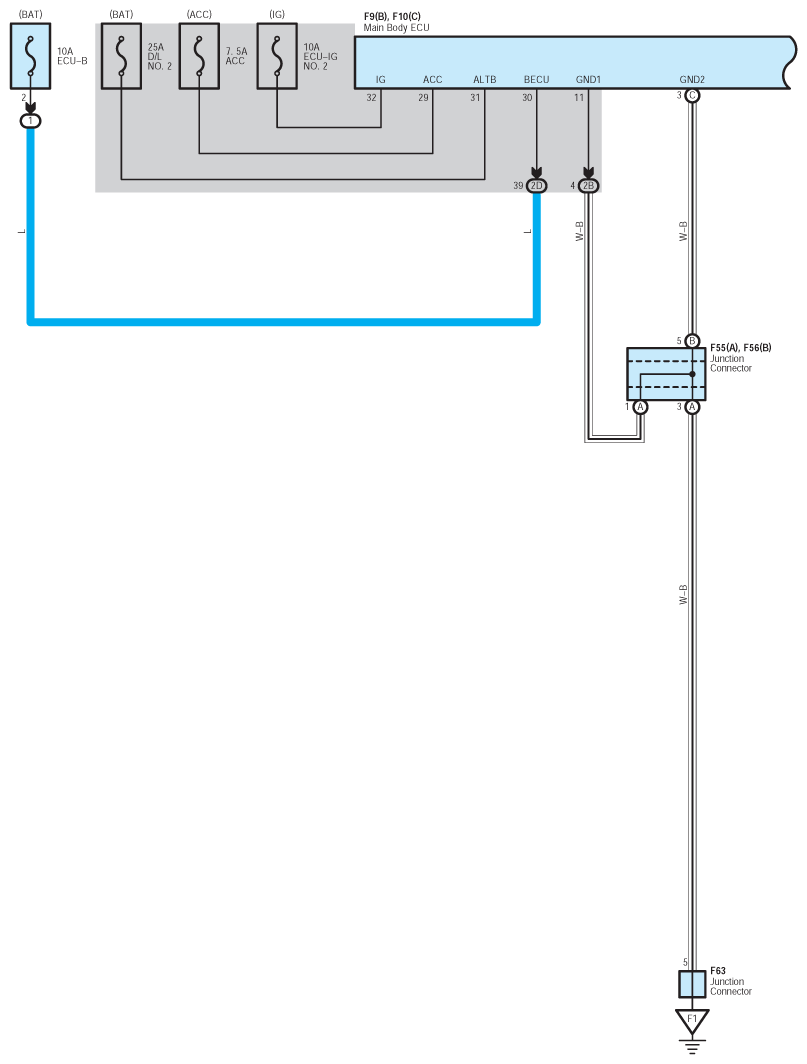

Fig 2: Key Reminder (W/O Smart Key System) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
