Safety Connect: Connectors

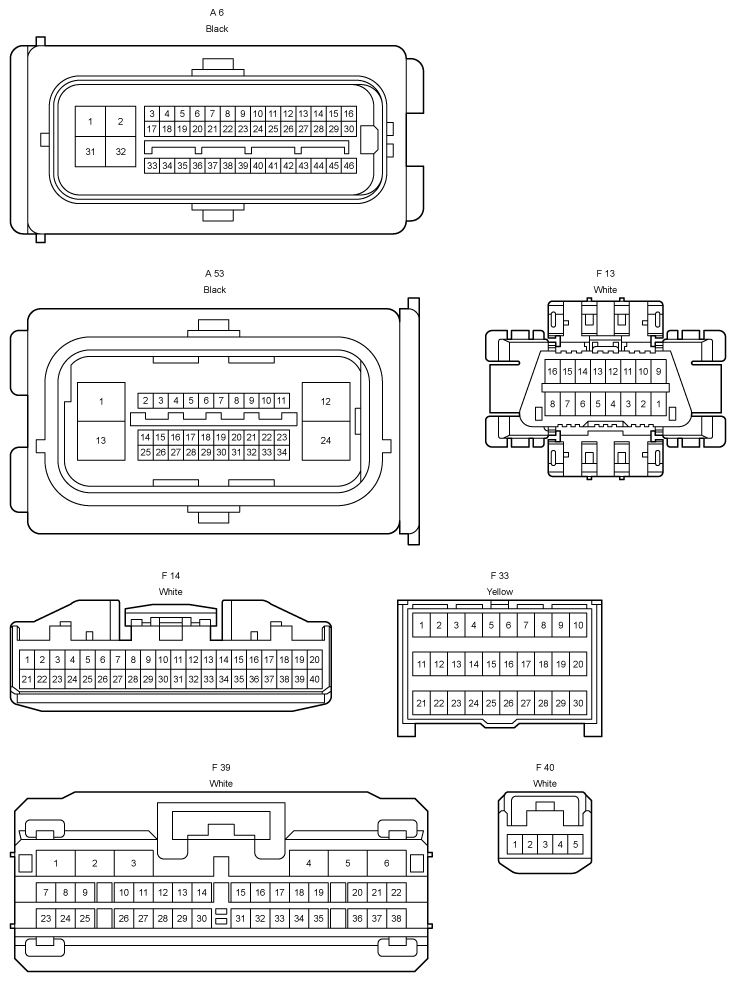

Fig 1: Connectors (1 Of 4)
G12198603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

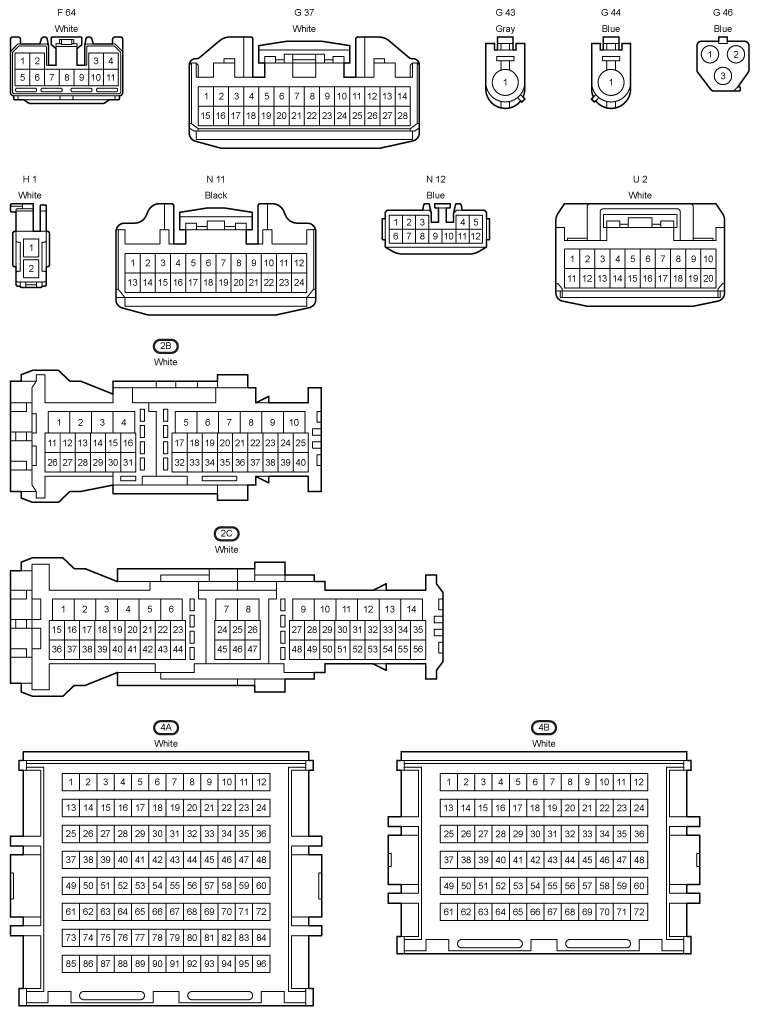

Fig 2: Connectors (2 Of 4)
G12198604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

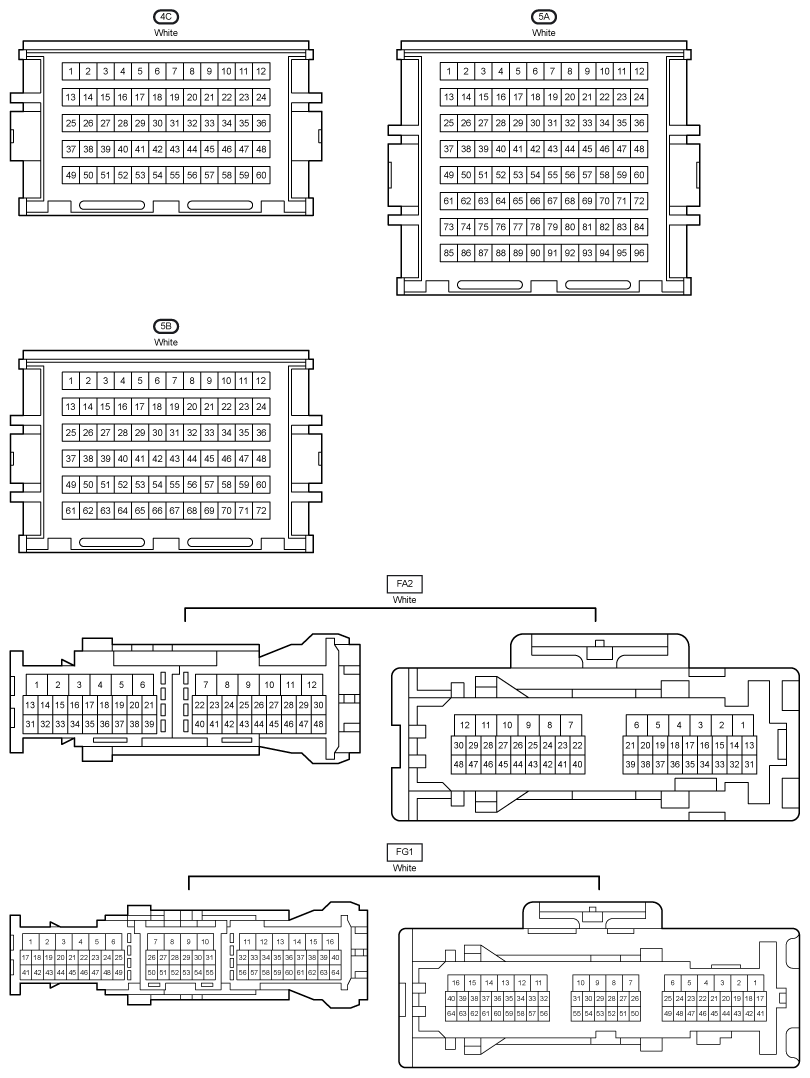

Fig 3: Connectors (3 Of 4)
G12198605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

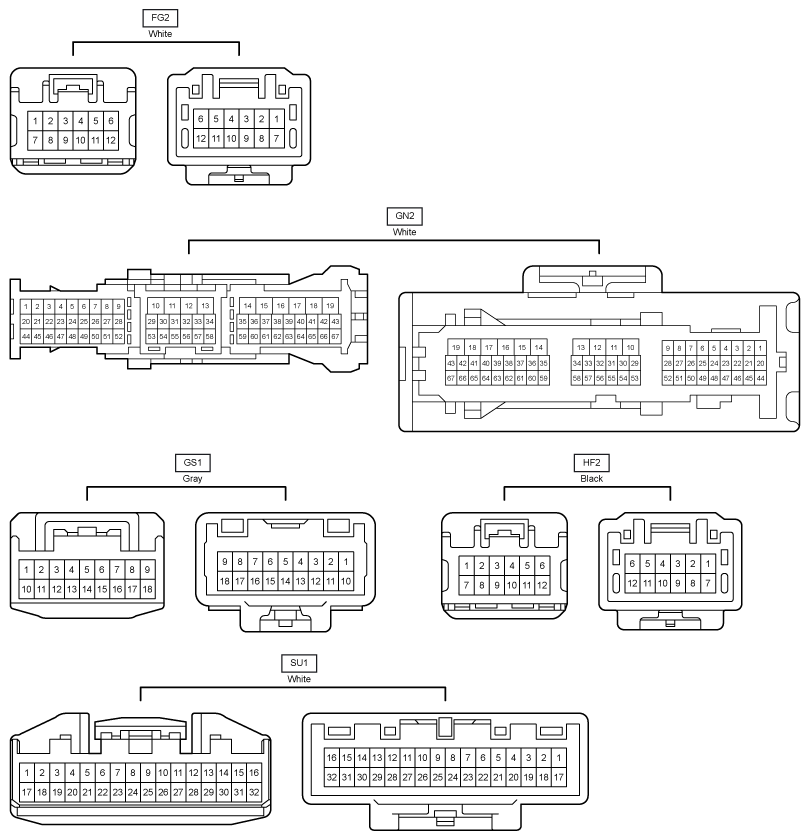

Fig 4: Connectors (4 Of 4)
G12198606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
