System Diagrams

Fig 1: Sliding Roof (1 Of 5)
G12198649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

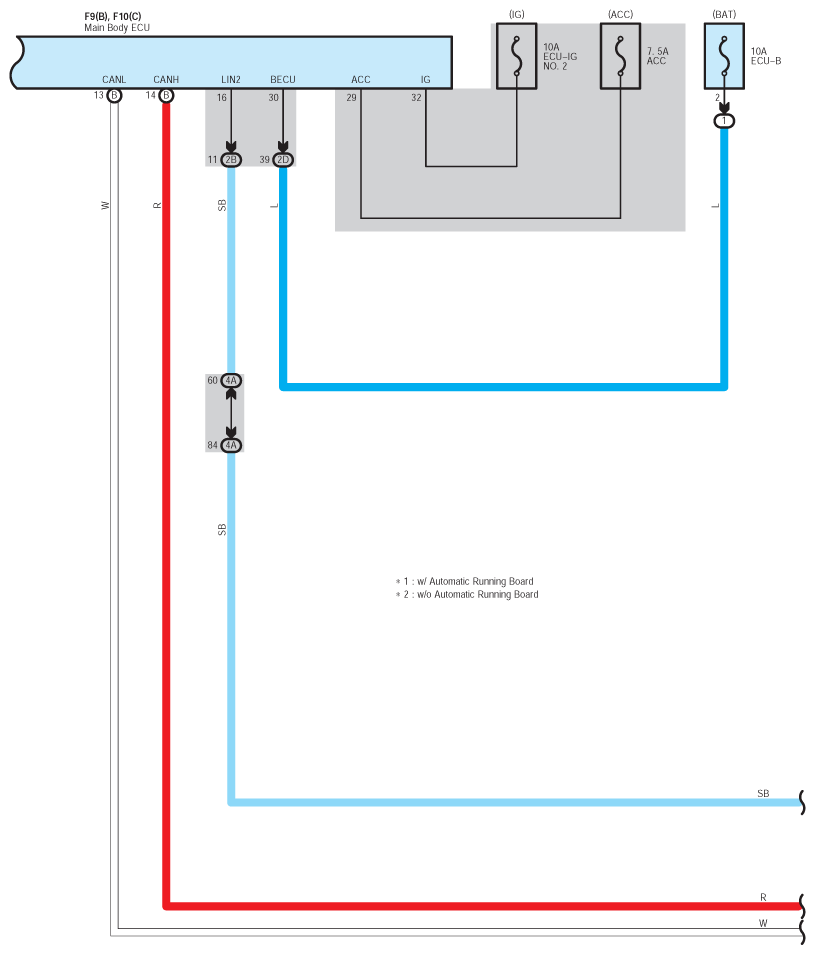

Fig 2: Sliding Roof (2 Of 5)
G12198650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

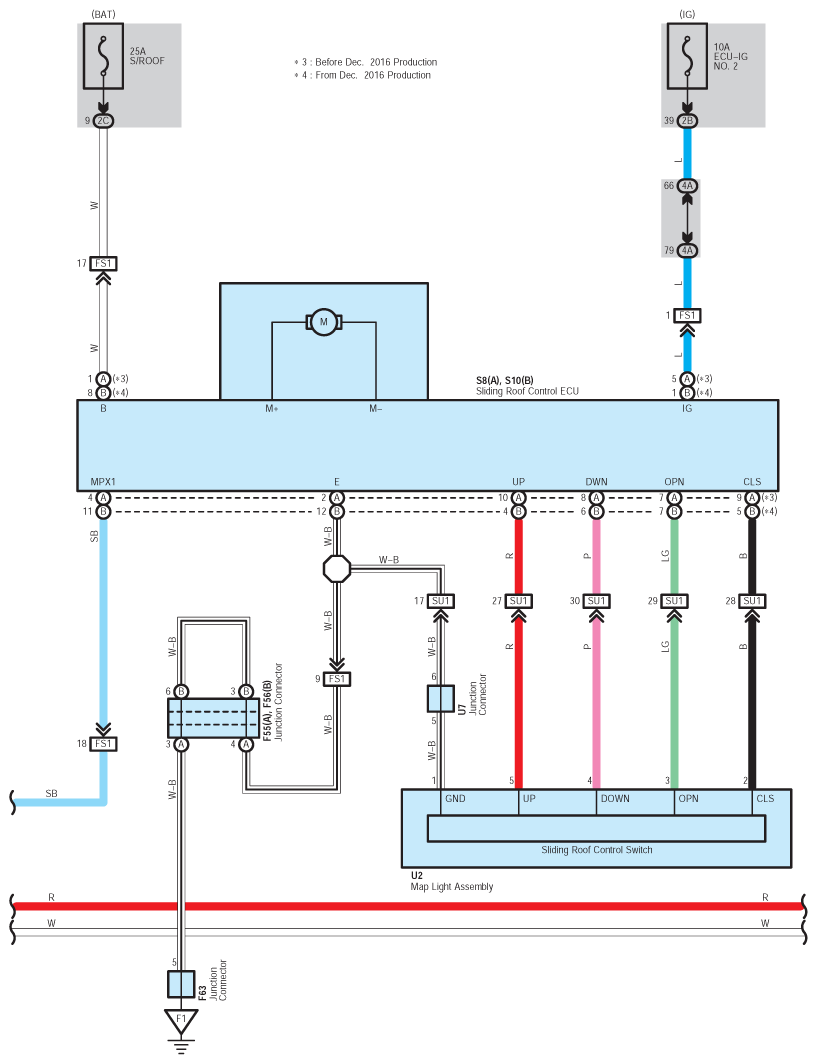

Fig 3: Sliding Roof (3 Of 5)
G12198651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Sliding Roof (4 Of 5)
G12198652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Sliding Roof (5 Of 5)
G12198653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
