4Runner TRD Pro
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Starting (W/O Smart Key System)
›
System Diagrams
System Diagrams

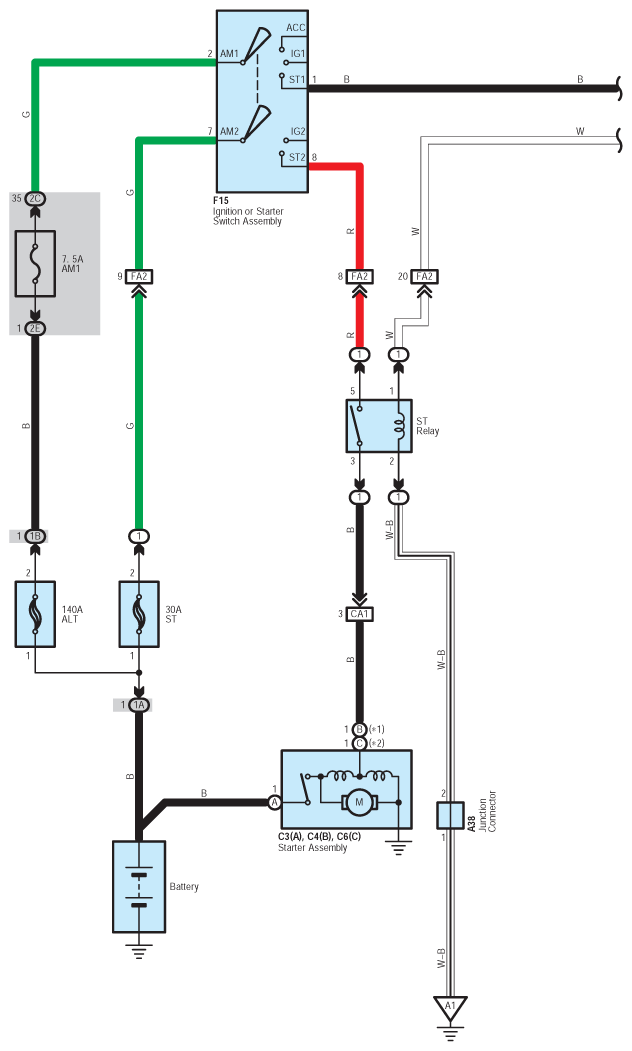

Fig 1: Starting (W/O Smart Key System) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Starting (W/O Smart Key System) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
