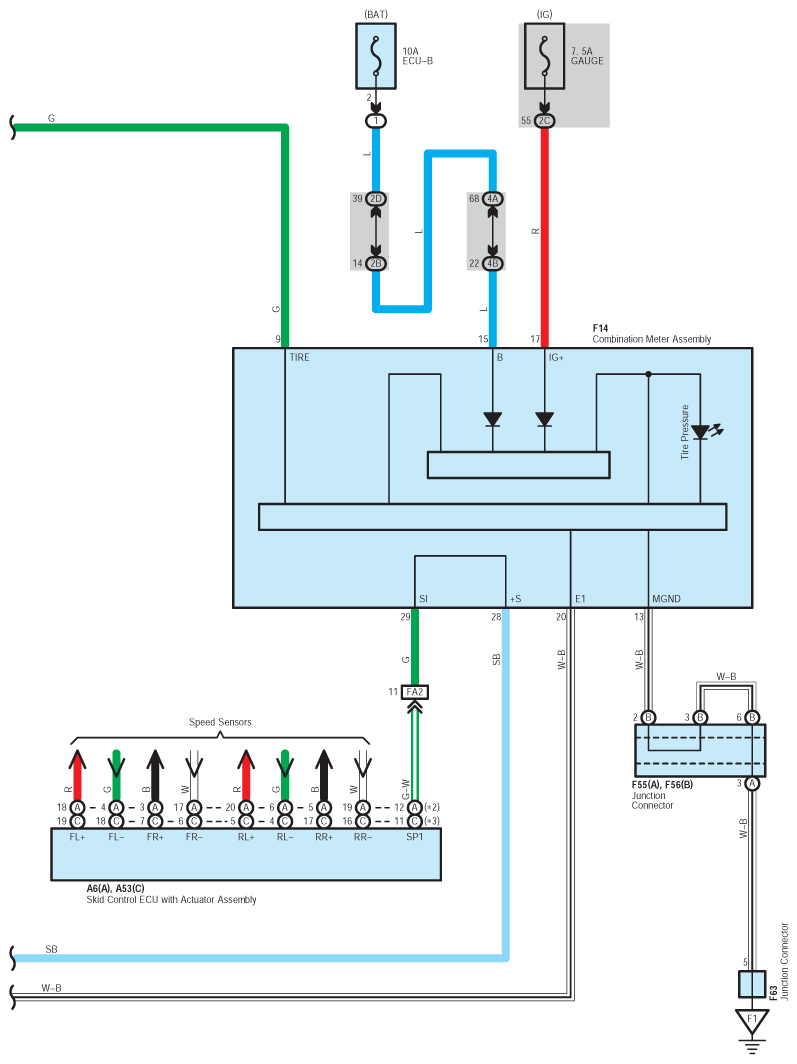

Fig 1: Tire Pressure Warning System (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

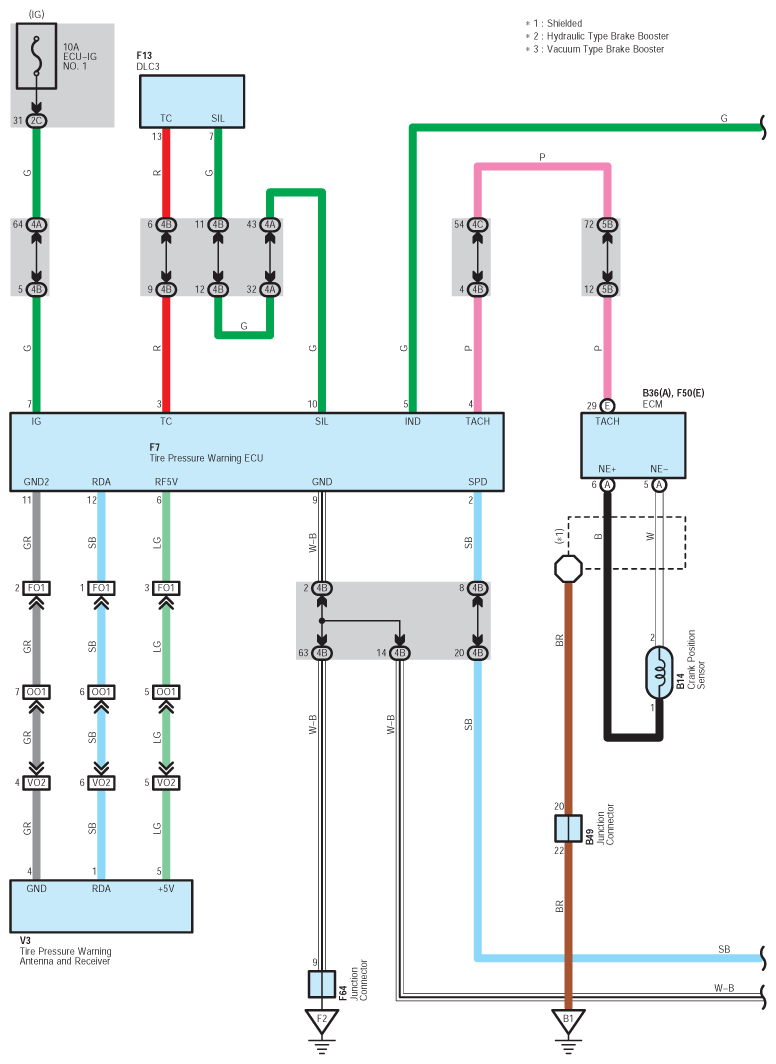

Fig 2: Tire Pressure Warning System (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
