Components [06/2016 - ]

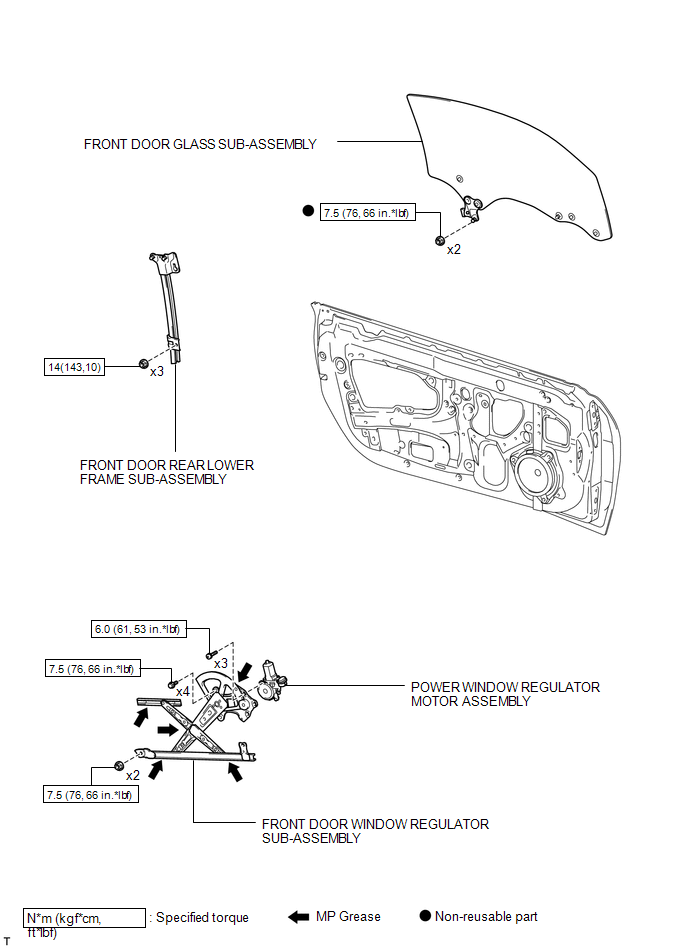

Fig 1: Power Window Regulator Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)
