86 Base, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Charging
›
System Diagrams
System Diagrams

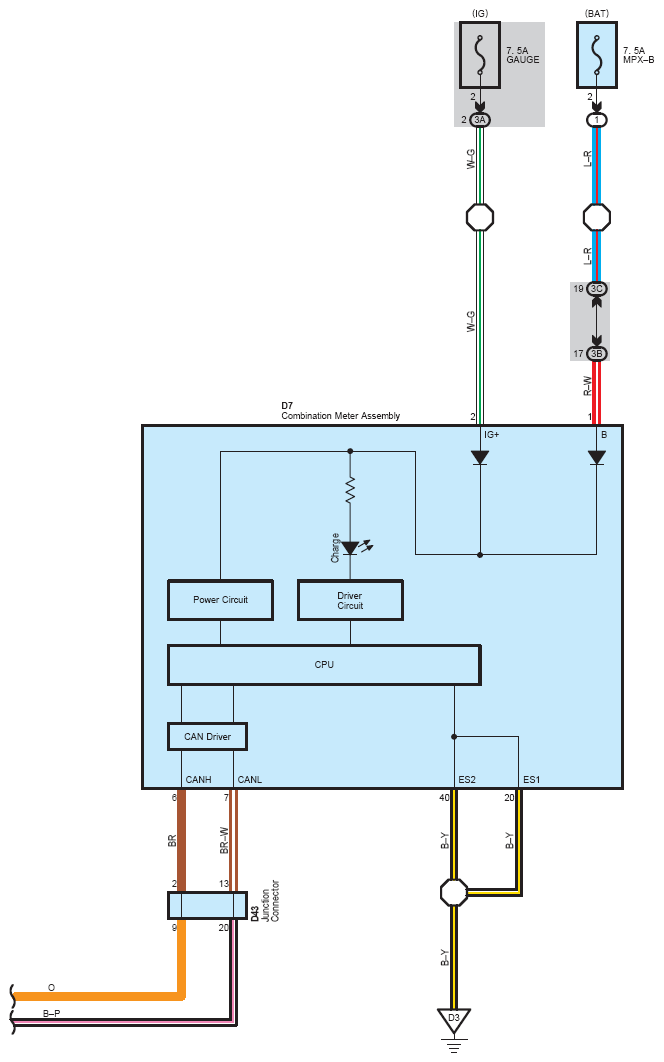

Fig 1: Charging (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

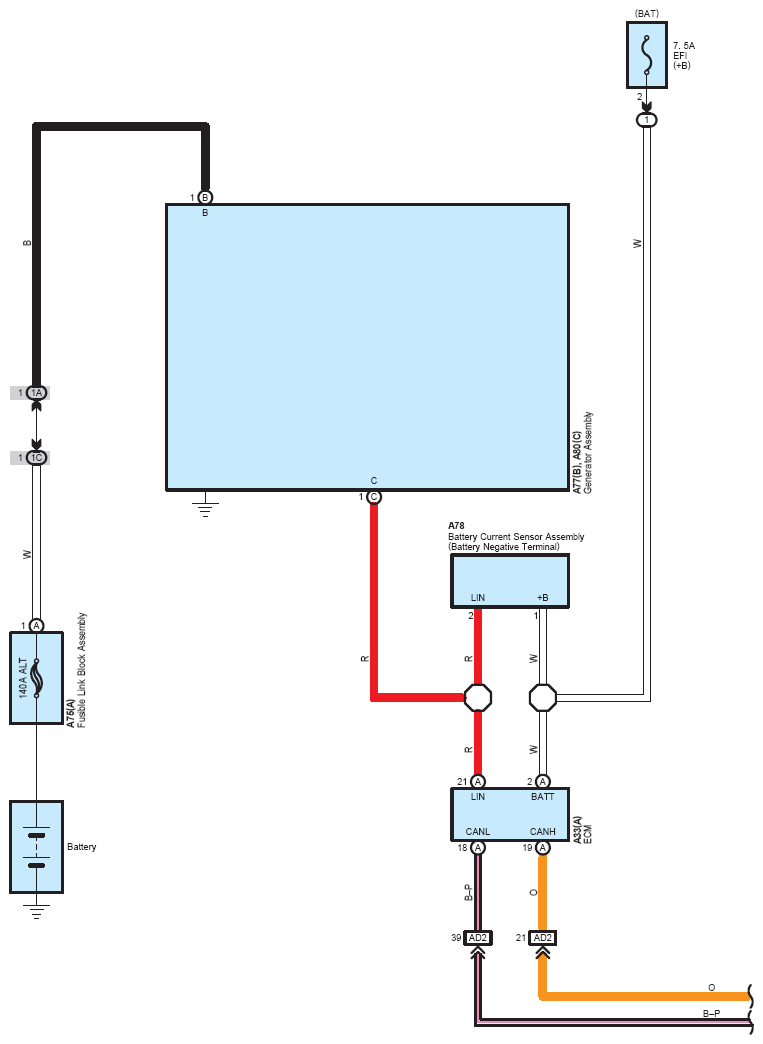

Fig 2: Charging (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
