System Diagrams

Fig 1: Engine Immobiliser System (W/O Smart Key System) (1 Of 5)
G12191928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

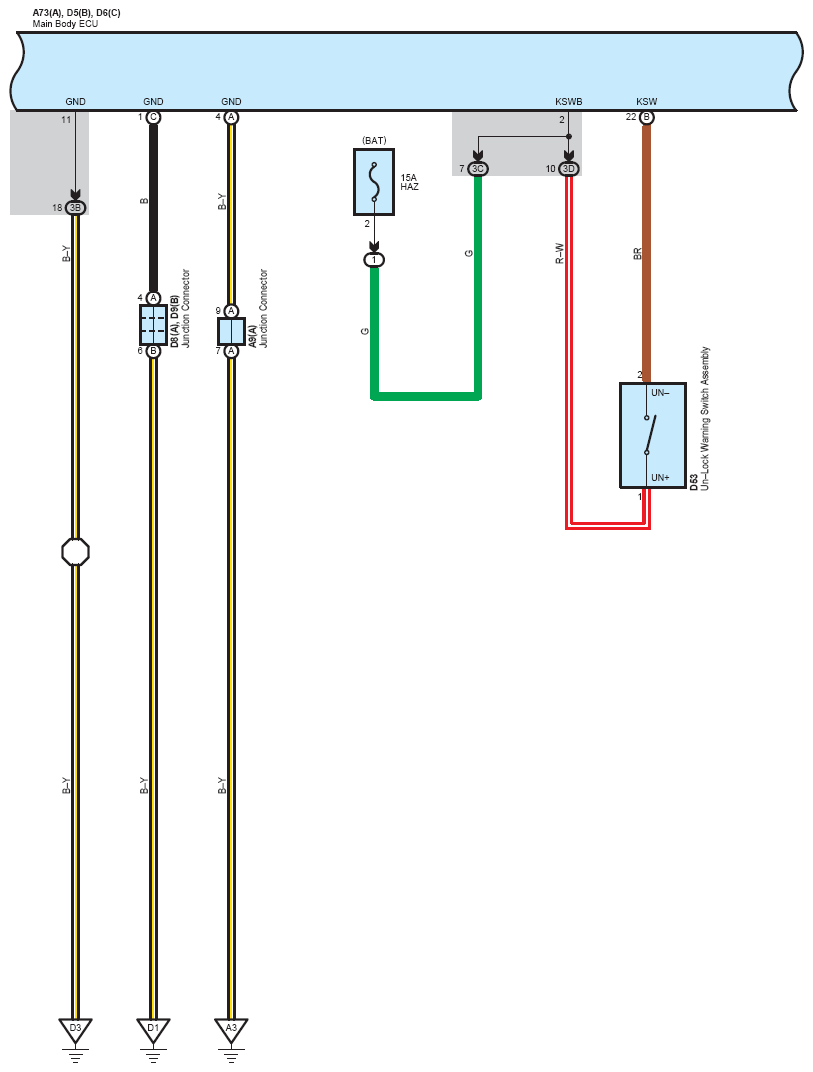

Fig 2: Engine Immobiliser System (W/O Smart Key System) (2 Of 5)
G12191929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

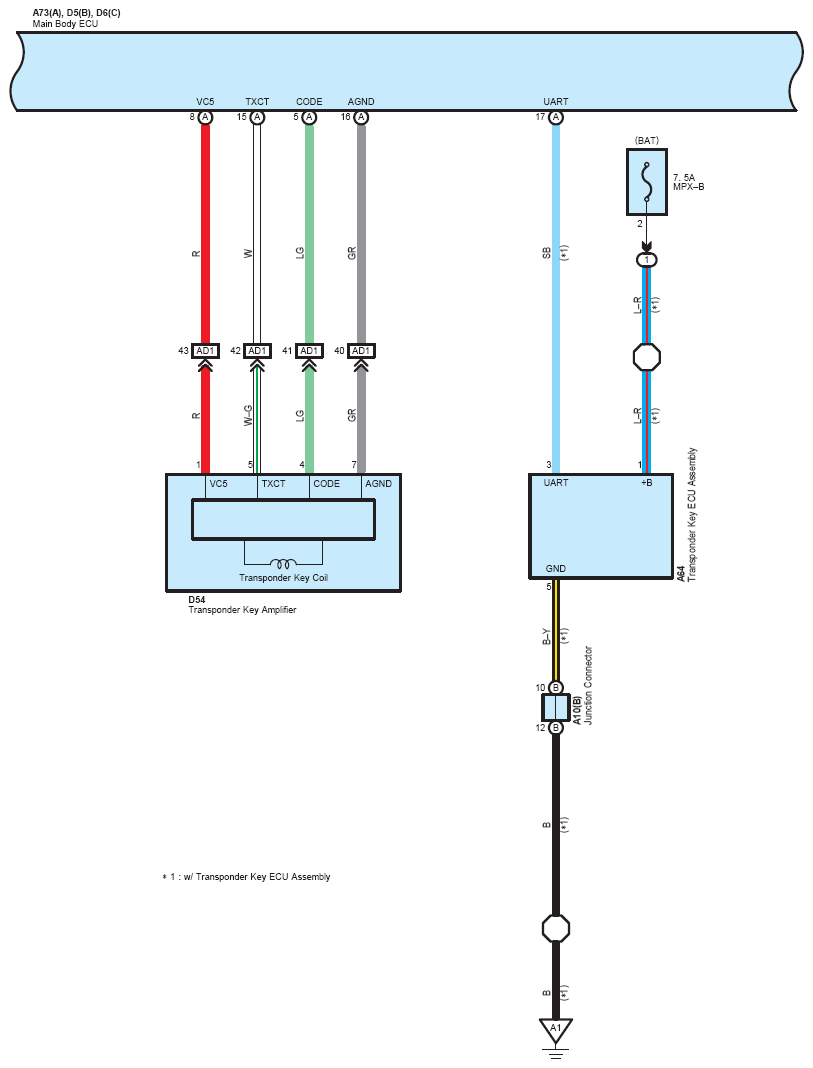

Fig 3: Engine Immobiliser System (W/O Smart Key System) (3 Of 5)
G12191930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Immobiliser System (W/O Smart Key System) (4 Of 5)
G12191931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

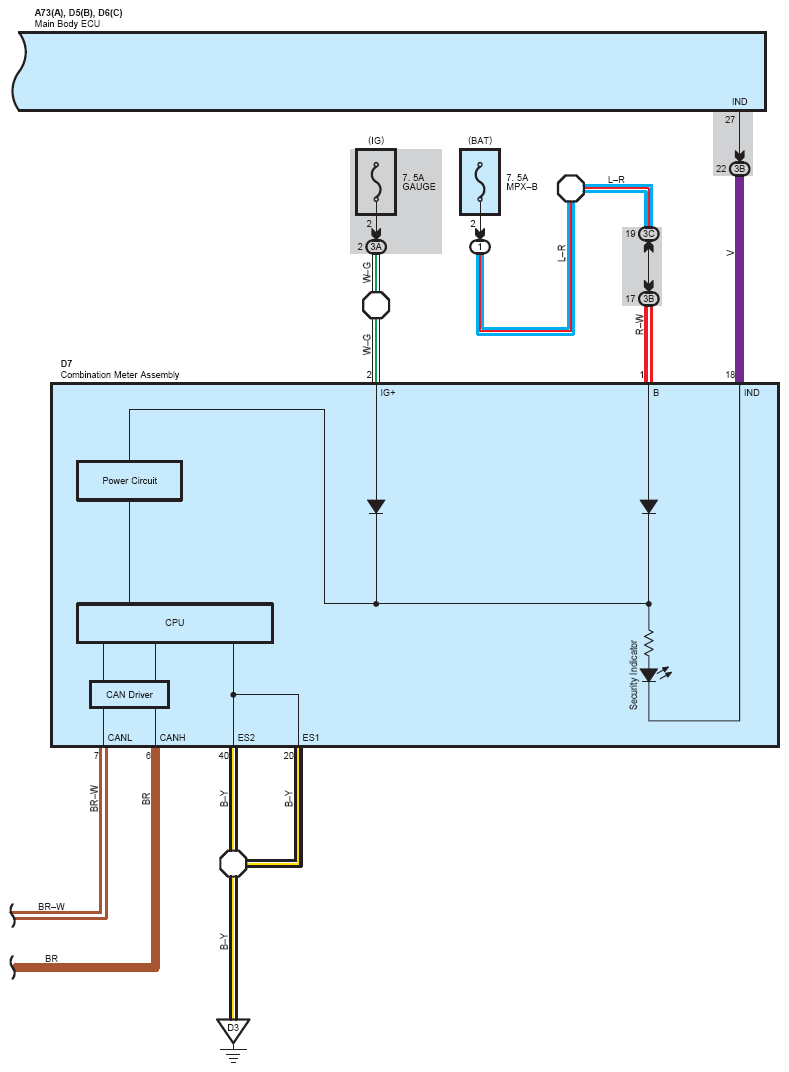

Fig 5: Engine Immobiliser System (W/O Smart Key System) (5 Of 5)
G12191932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
