Front Wiper And Washer
›
System Diagrams
System Diagrams

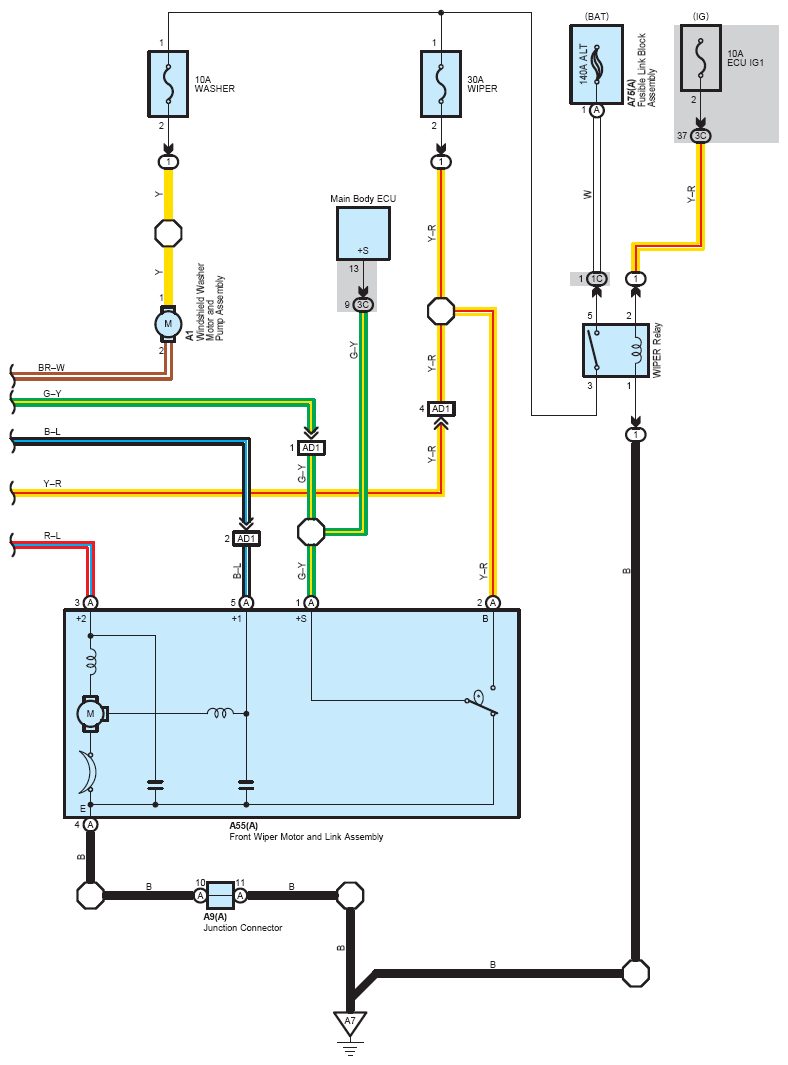

Fig 1: Front Wiper And Washer (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

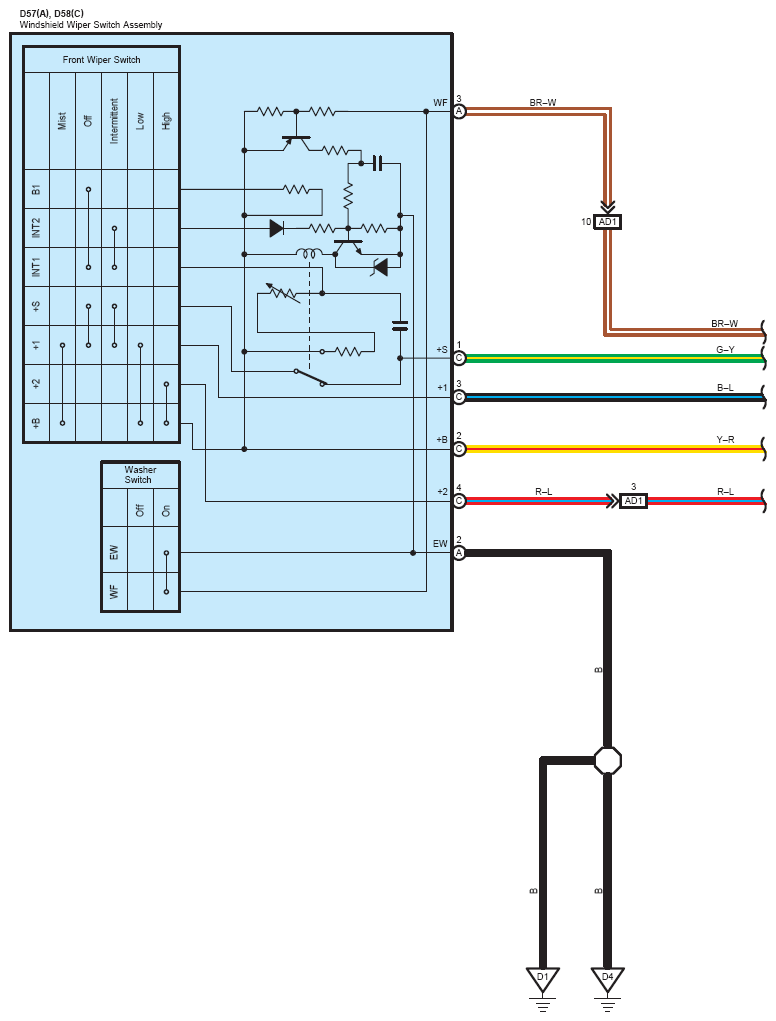

Fig 2: Front Wiper And Washer (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
