Key Reminder, Light Reminder
›
System Diagrams
System Diagrams

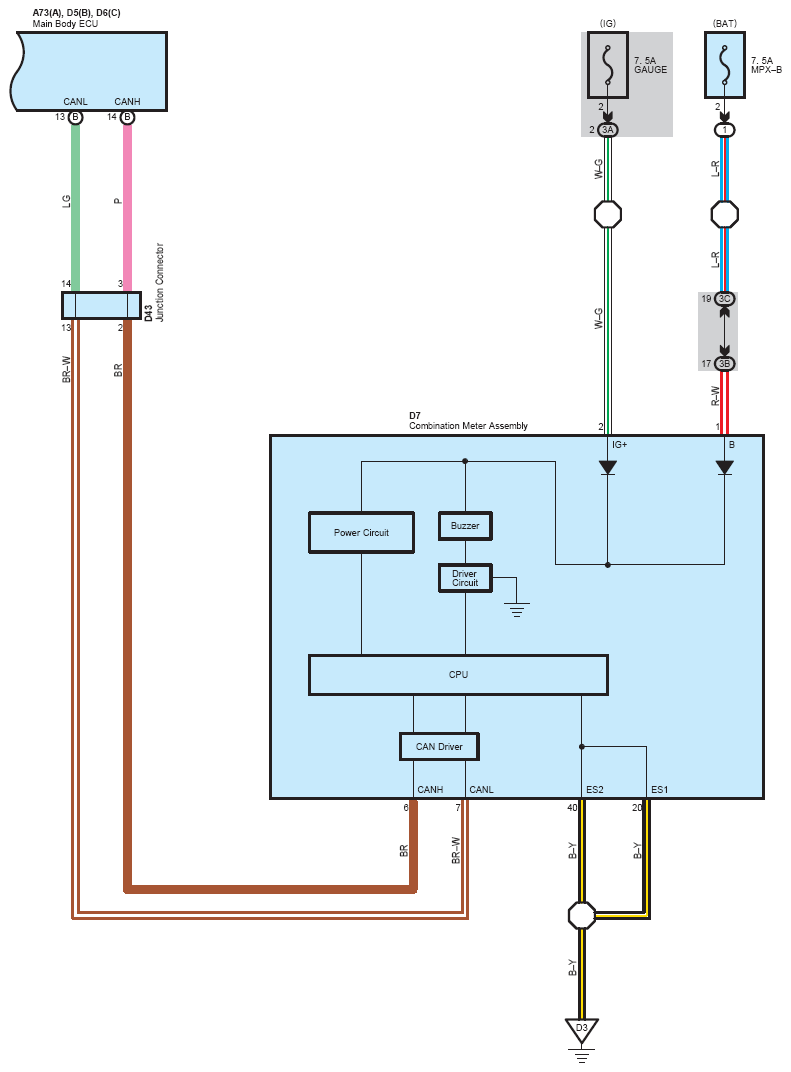

Fig 1: Key Reminder, Light Reminder (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

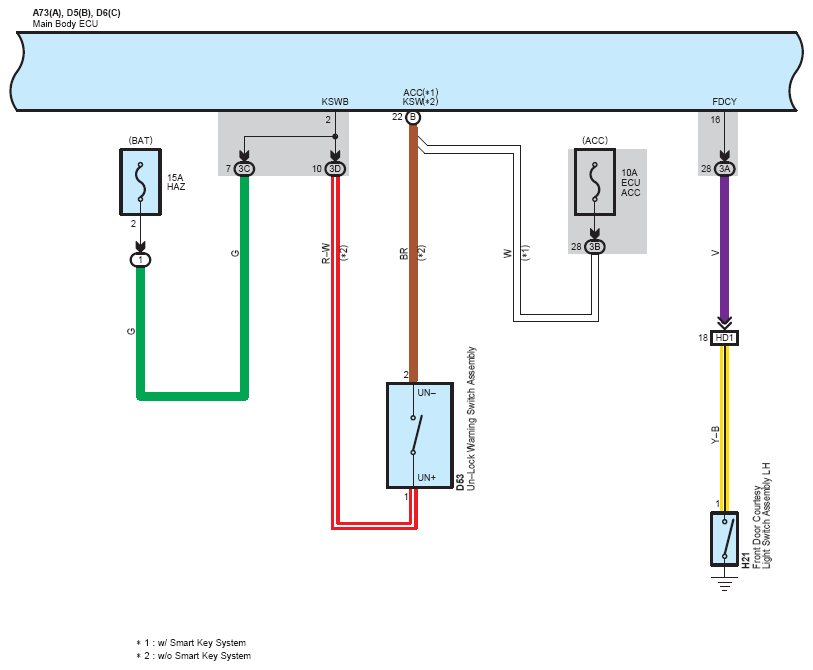

Fig 2: Key Reminder, Light Reminder (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

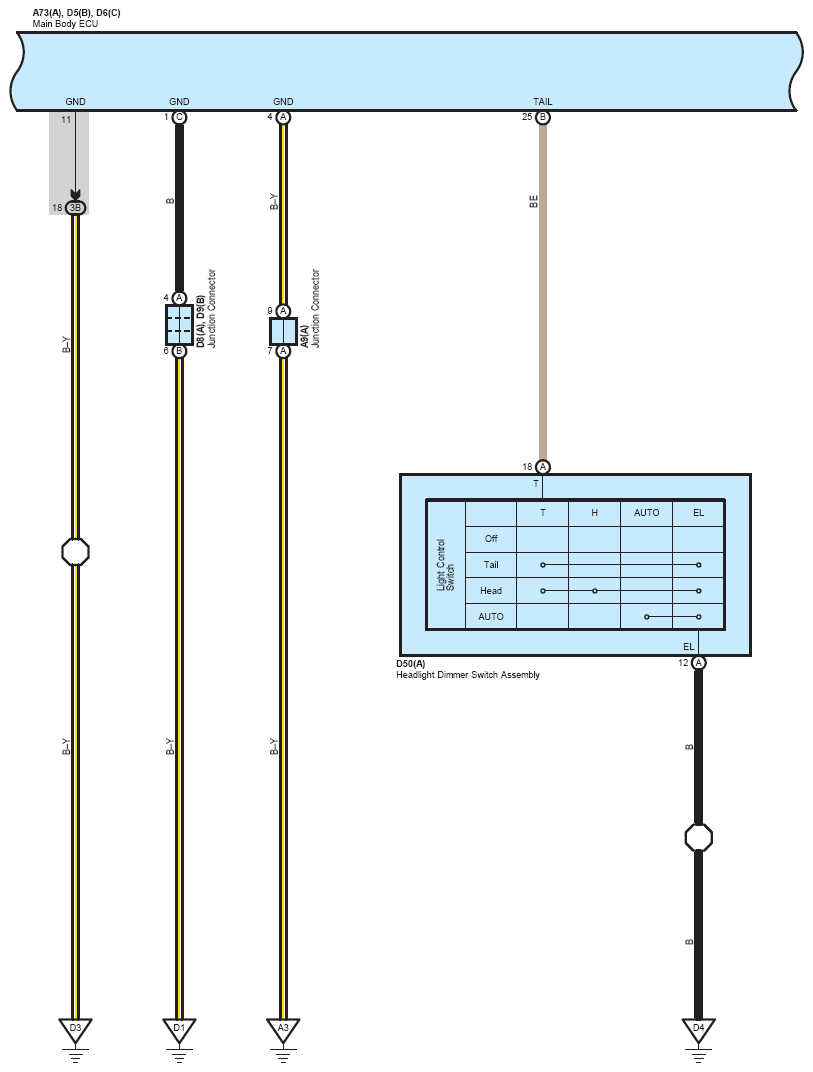

Fig 3: Key Reminder, Light Reminder (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Key Reminder, Light Reminder (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
