System Diagrams

Fig 1: Tire Pressure Warning System (1 Of 5)
G12192124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

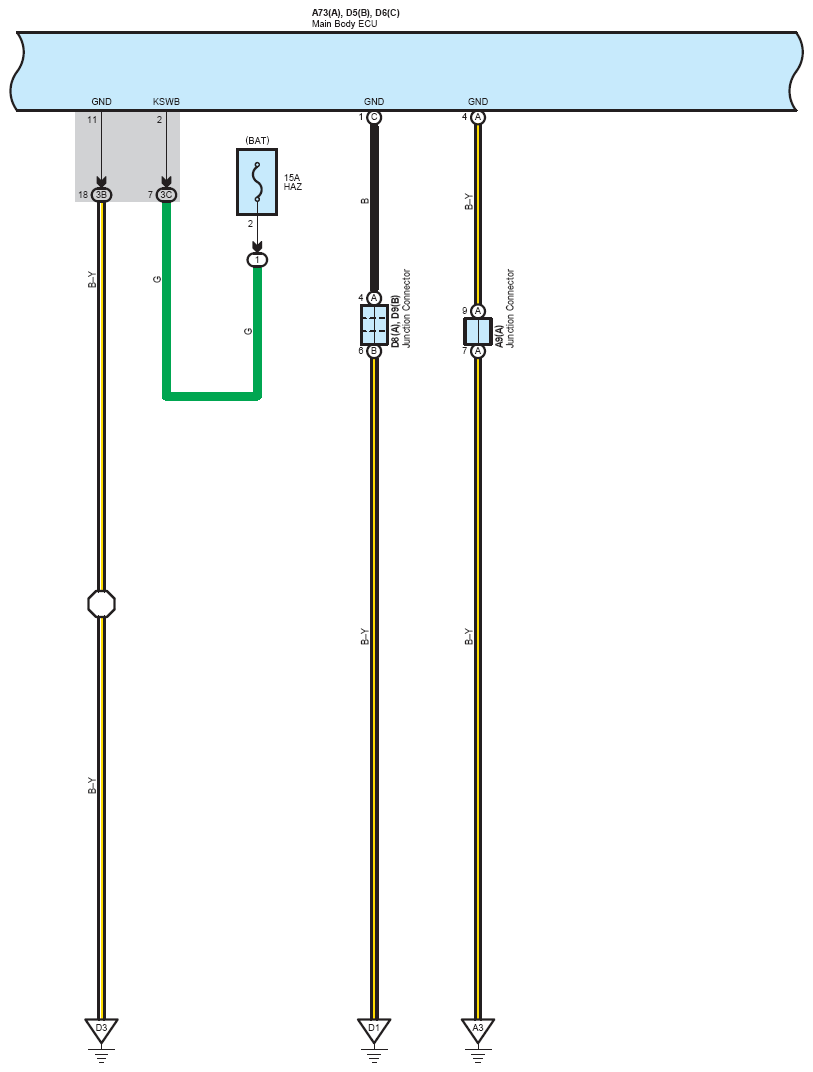

Fig 2: Tire Pressure Warning System (2 Of 5)
G12192125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

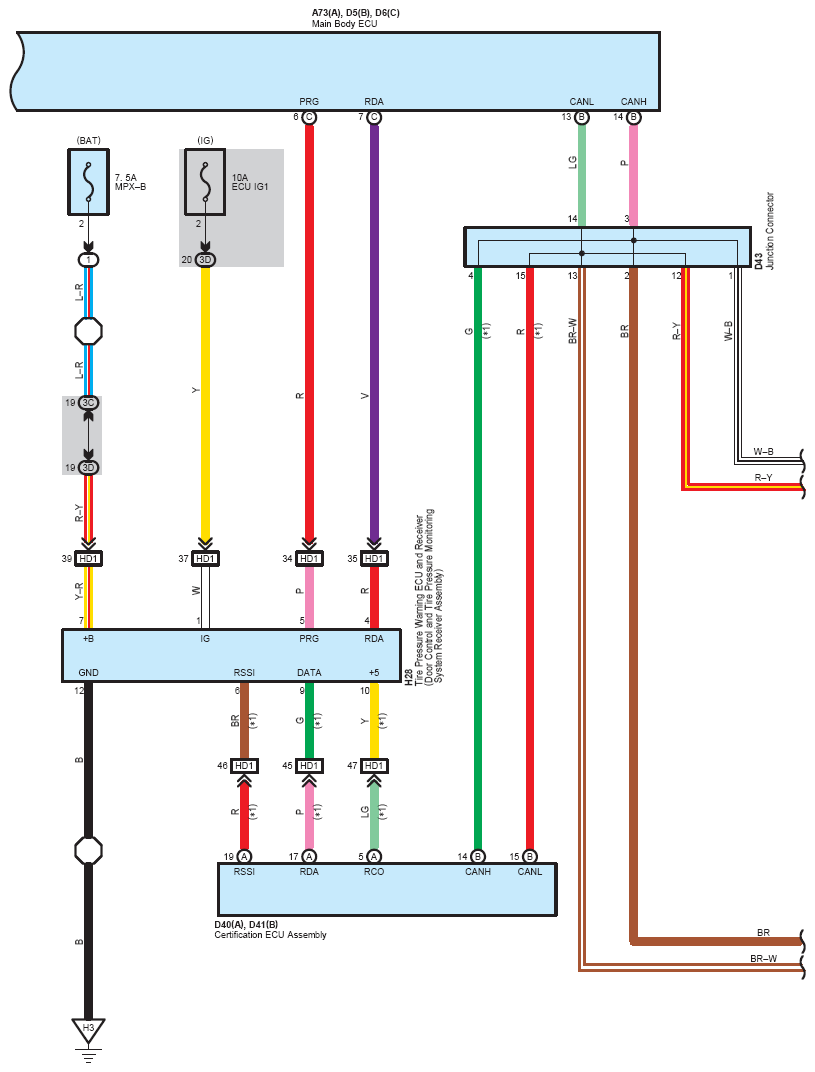

Fig 3: Tire Pressure Warning System (3 Of 5)
G12192126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Tire Pressure Warning System (4 Of 5)
G12192127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

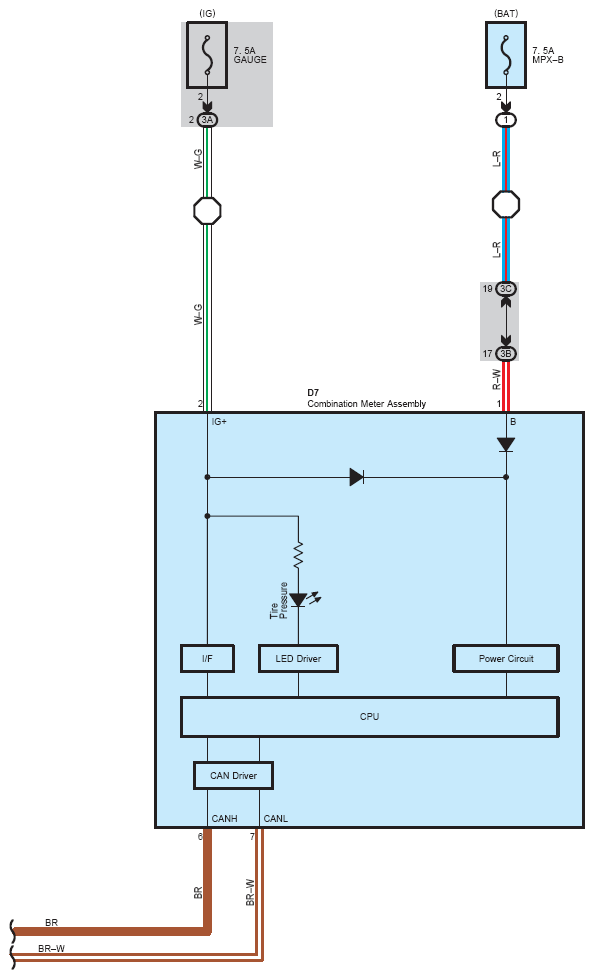

Fig 5: Tire Pressure Warning System (5 Of 5)
G12192128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
