System Diagrams

Fig 1: Turn Signal And Hazard Warning Light (1 Of 5)
G12192132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

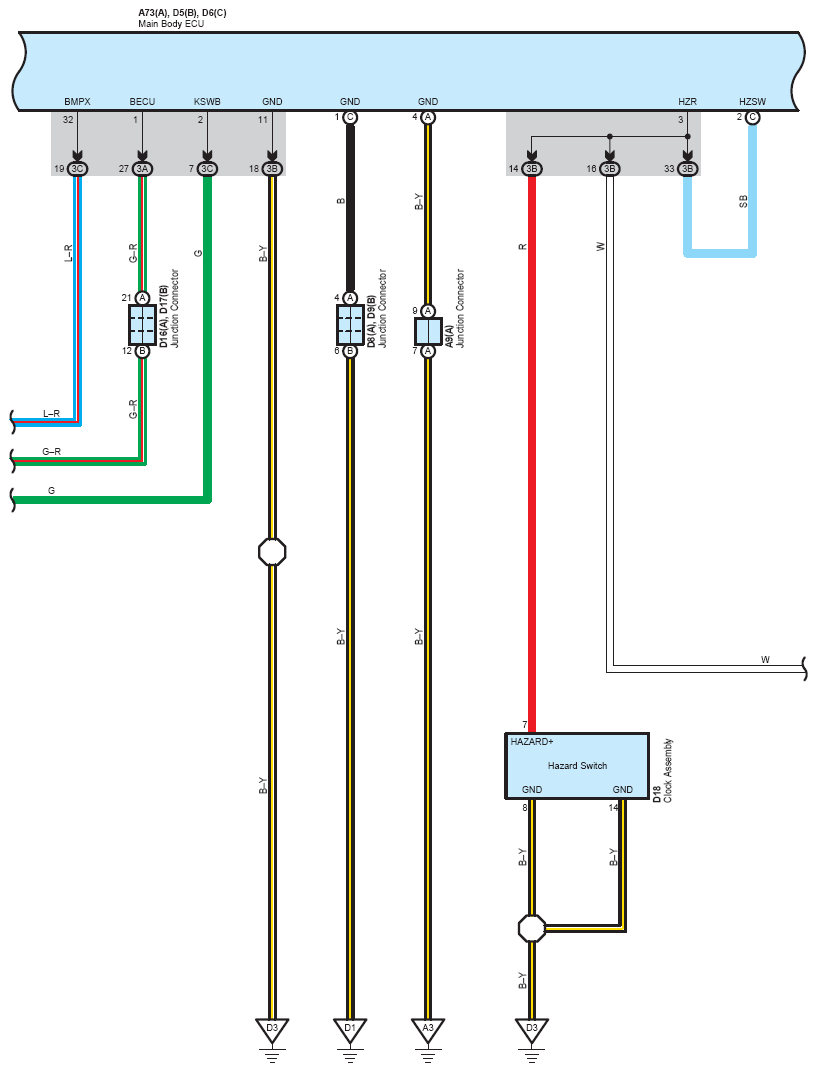

Fig 2: Turn Signal And Hazard Warning Light (2 Of 5)
G12192133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

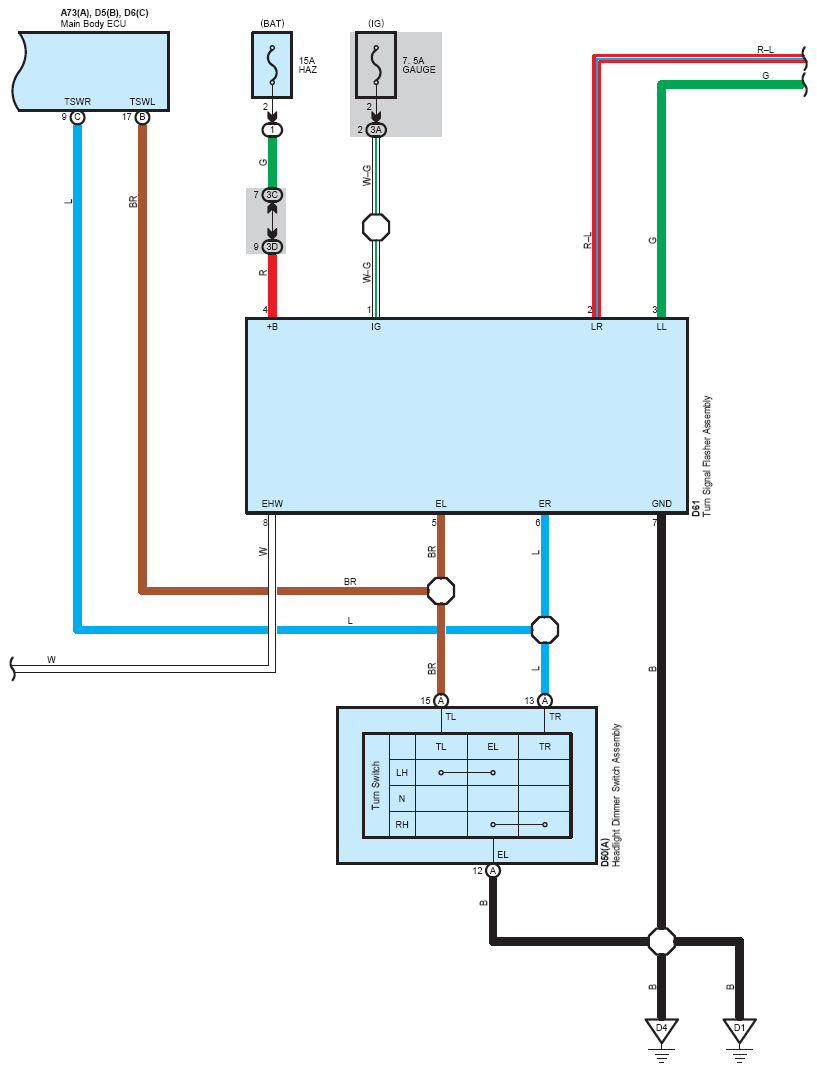

Fig 3: Turn Signal And Hazard Warning Light (3 Of 5)
G12192134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

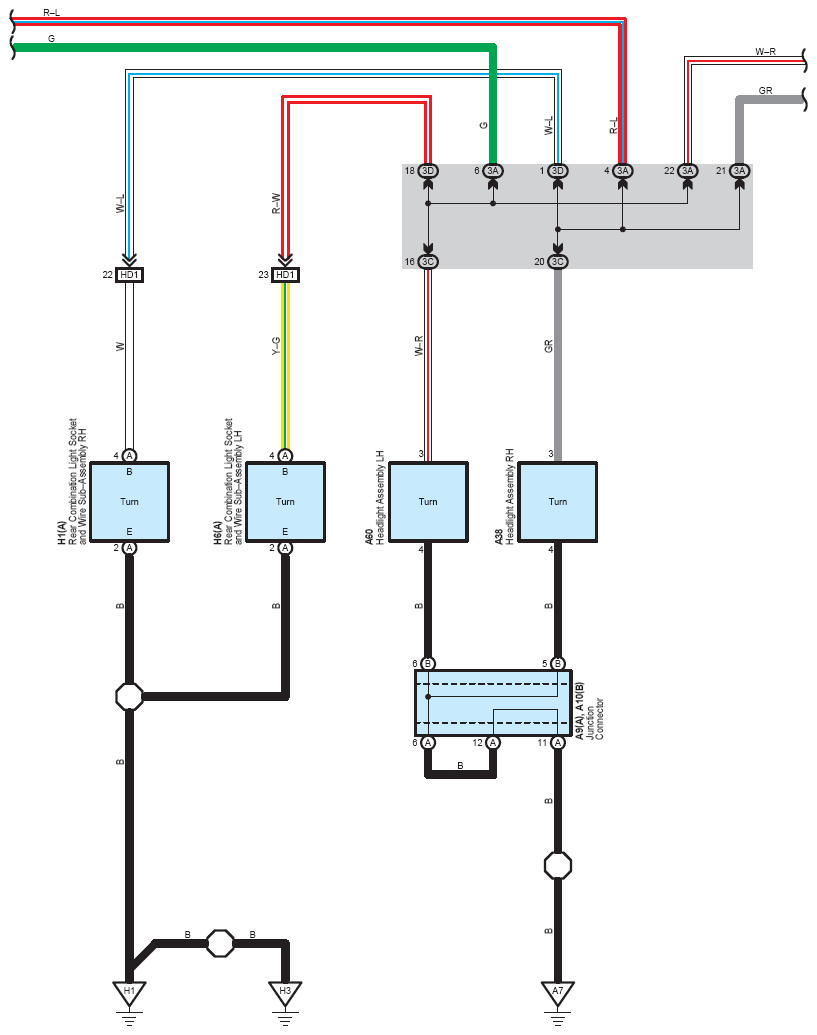

Fig 4: Turn Signal And Hazard Warning Light (4 Of 5)
G12192135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Turn Signal And Hazard Warning Light (5 Of 5)
G12192136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
