Components [03/2017 - ]

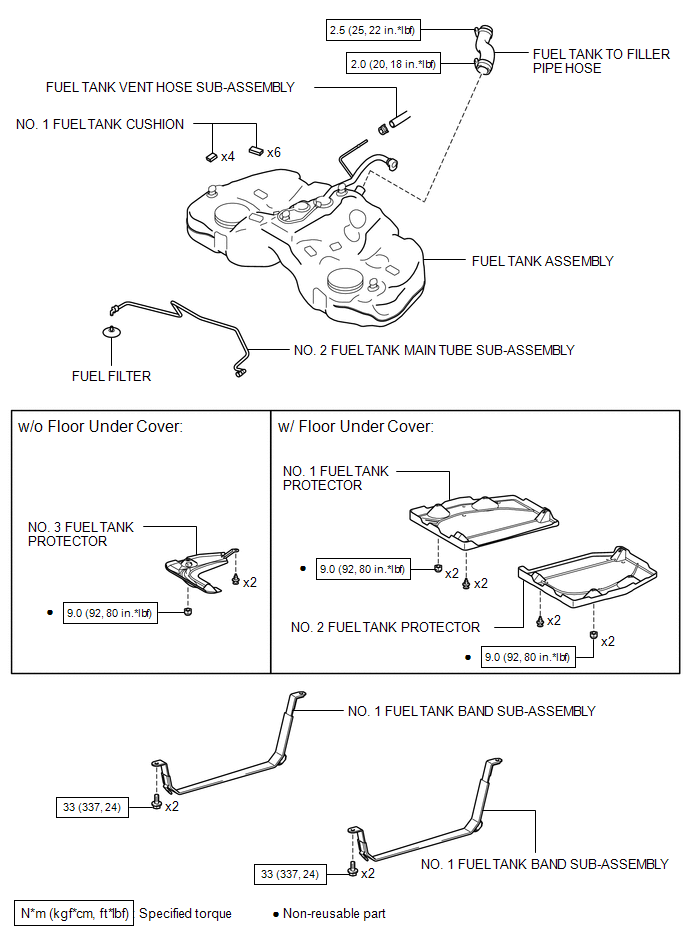

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
