Removal [06/2016 - ]: Procedure

Refer to PROCEDURE - Step 1

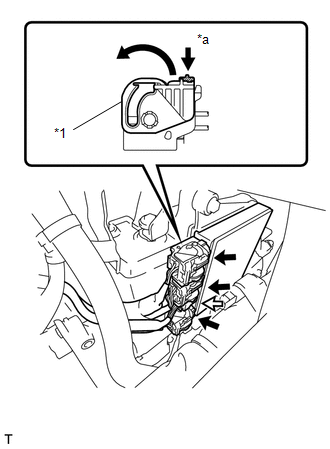

1. Move the lock levers in the direction indicated by the arrow to release the 3 connector locks. Disconnect the 4 connectors from the injector driver.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Lock Lever
   *a	Release
   	Lock with Connector
   	Normal Connector

2. Remove the 3 bolts and injector driver.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to drop or strike the injector driver.
