Accelerator Pedal
›
Components [06/2016 - ]
Components [06/2016 - ]

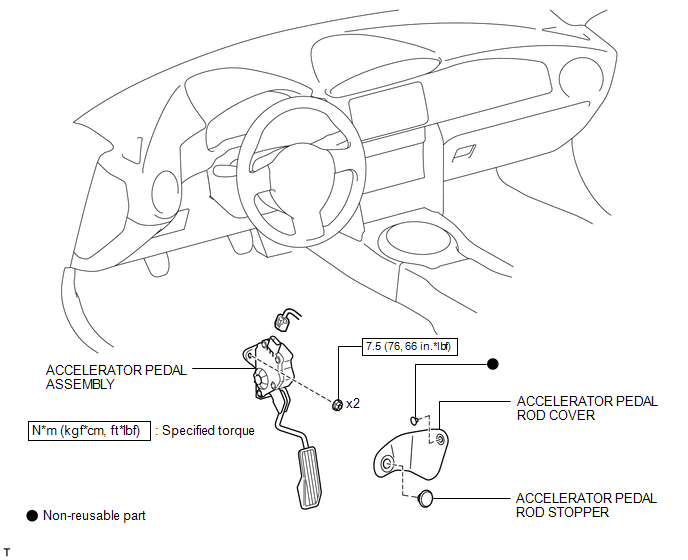

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
