Removal [06/2016 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [06/2016 - ] )

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

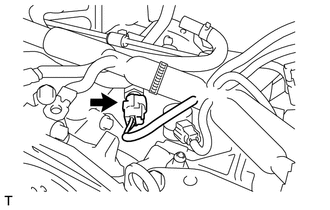

    1. Disconnect the engine coolant temperature sensor connector.
      GTY388258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

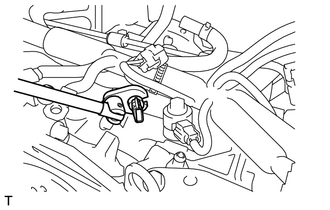

    2. Using a 19 mm union nut wrench, remove the engine coolant temperature sensor.
      GTY388259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
