Removal [06/2016 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [06/2016 - ] )

  2. REMOVE KNOCK SENSOR

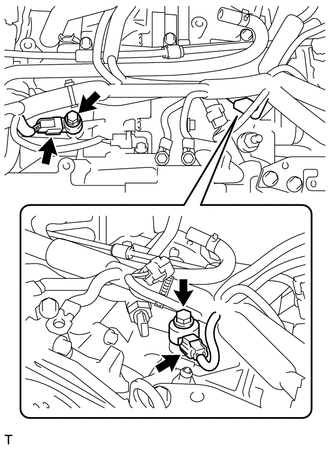

    1. Disconnect the 2 knock sensor connectors.
      GTY388257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and the 2 knock sensor.
