Engine Control System - Circuit Tests
›
SFI System
›
ECM Power Source Circuit [03/2017 - ]
›
Wiring Diagram

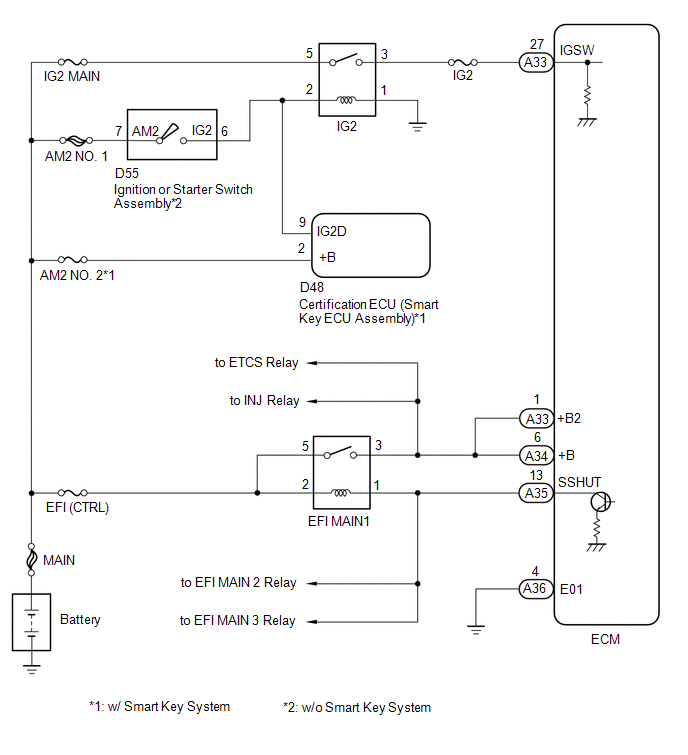

ECM Power Source Circuit [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
