Engine Control System - Circuit Tests
›
SFI System
›
ECM Power Source Circuit [06/2016 - 03/2017]
›
Wiring Diagram

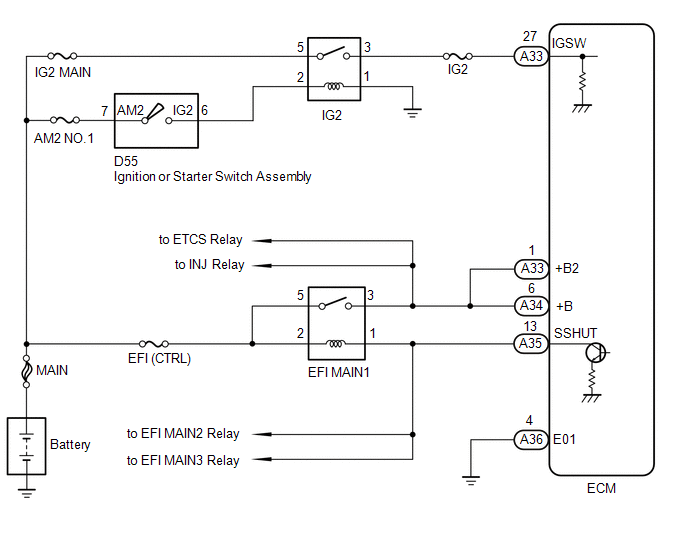

ECM Power Source Circuit [06/2016 - 03/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
