Engine Control System - Circuit Tests
›
SFI System
›
Fuel Injector Circuit [06/2016 - ]
›
Wiring Diagram

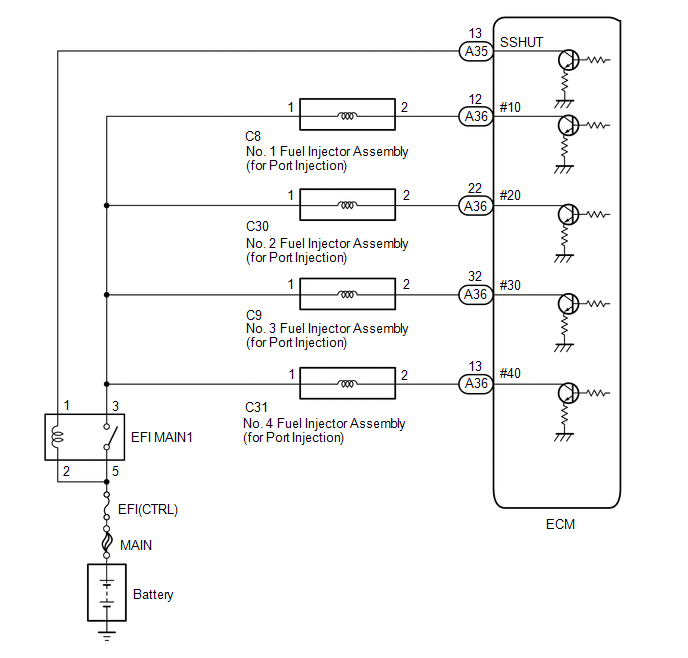

Fuel Injector Circuit [06/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
