Toyota
›
2017
›
86 Base, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - Circuit Tests
›
SFI System
›
Fuel Pump Control Circuit [03/2017 - ]
›
Wiring Diagram

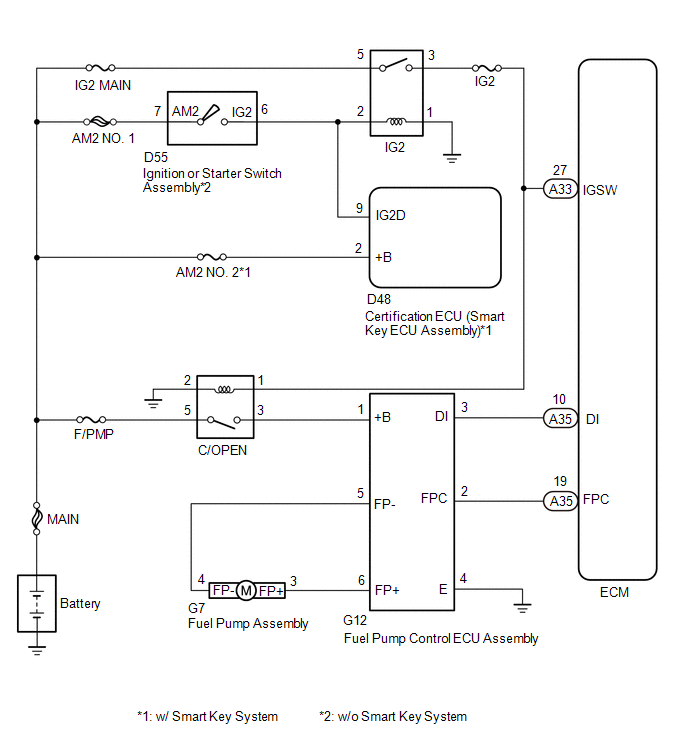

Fuel Pump Control Circuit [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
