Removal [06/2016 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE MASS AIR FLOW METER

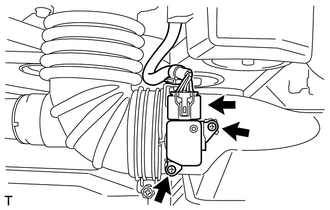

    1. Disconnect the mass air flow meter connector.
      GTY389013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and the mass air flow meter.
