Components [06/2016 - 03/2017]

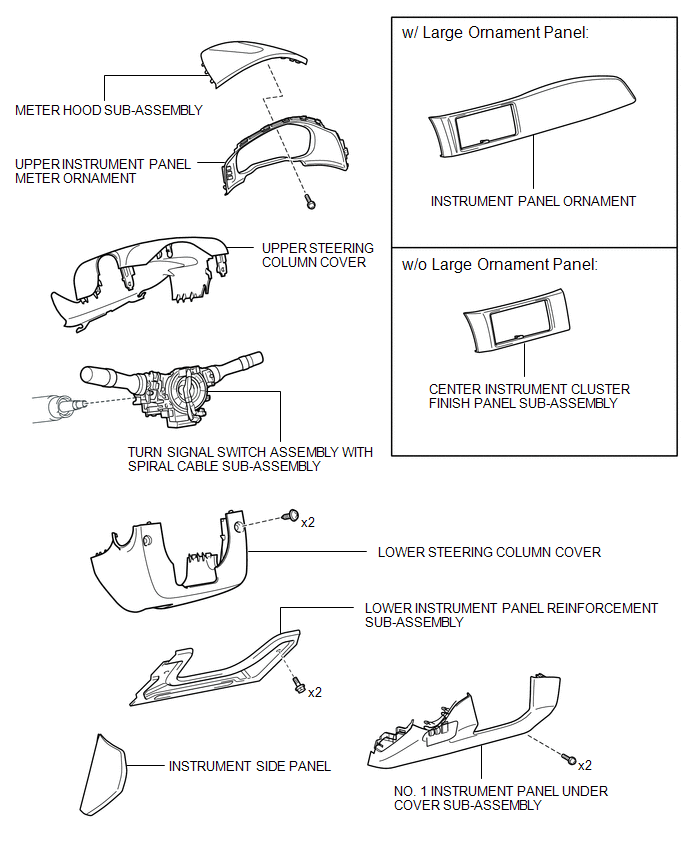

Fig 1: Steering Column Assembly Replacement Components (1 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

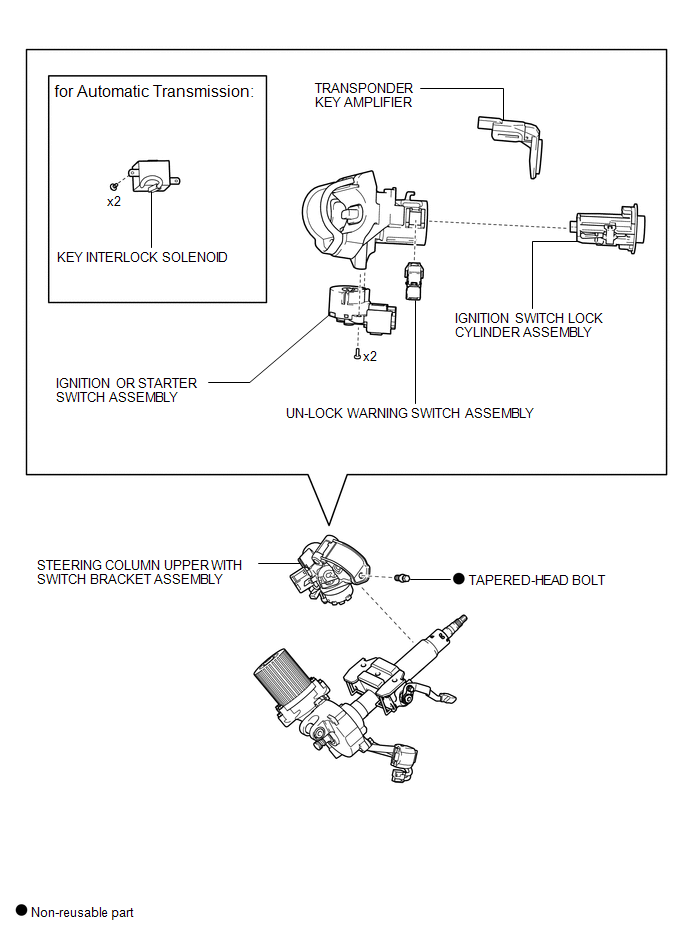

Fig 2: Steering Column Assembly Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Steering Column Assembly Replacement Components (3 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

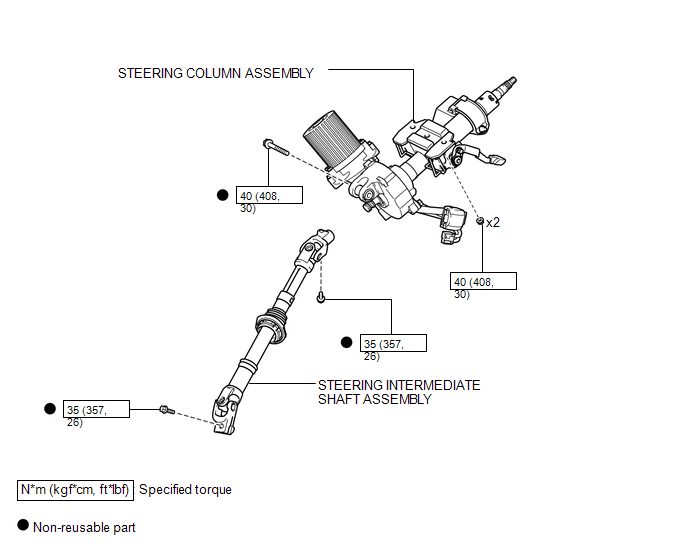

Fig 4: Steering Column Assembly Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
