System Diagrams

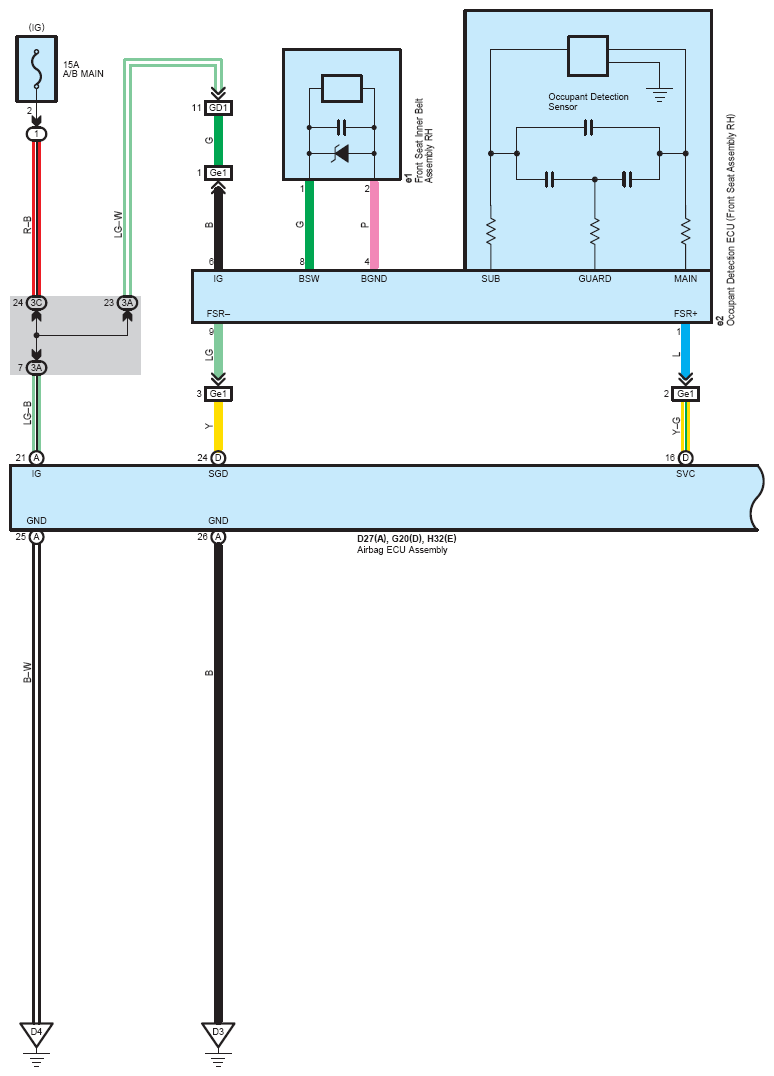

Fig 1: SRS (1 Of 5)

G12192089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

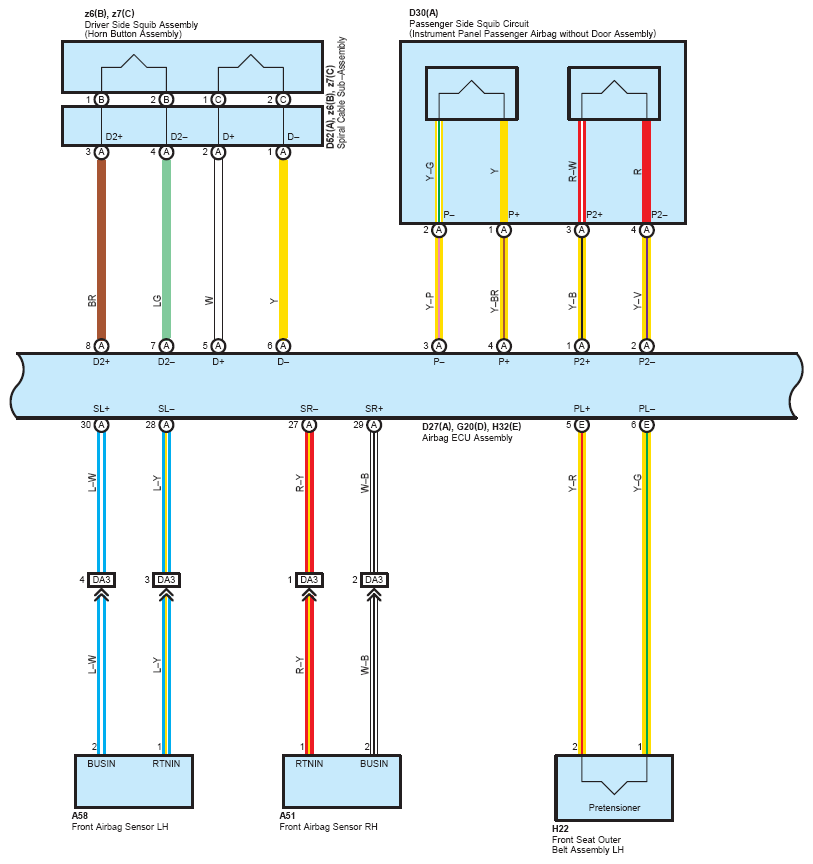

Fig 2: SRS (2 Of 5)

G12192090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

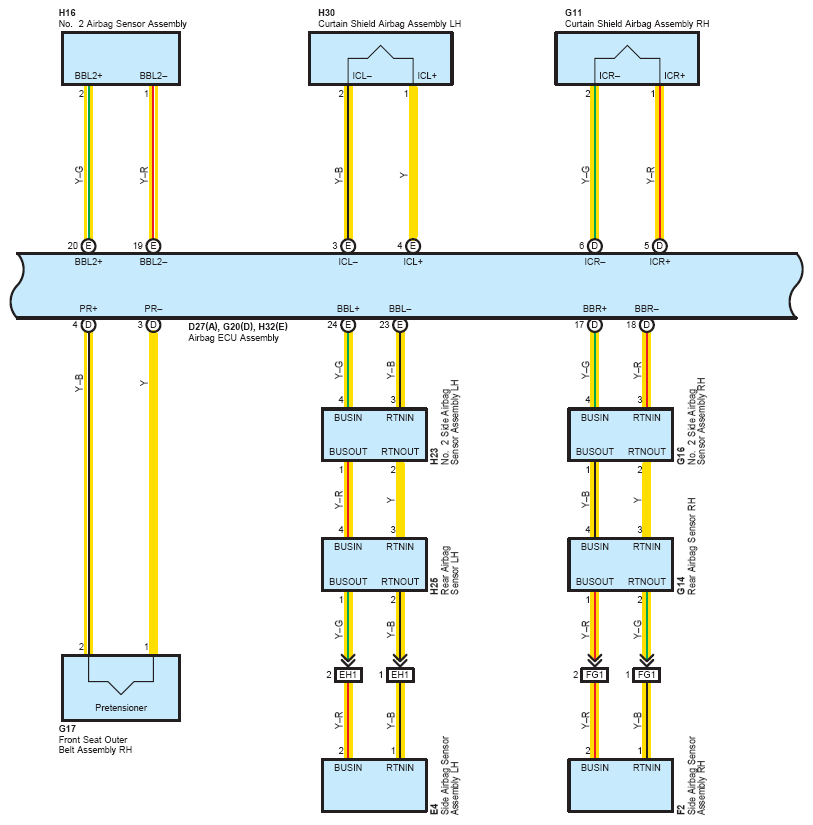

Fig 3: SRS (3 Of 5)

G12192091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

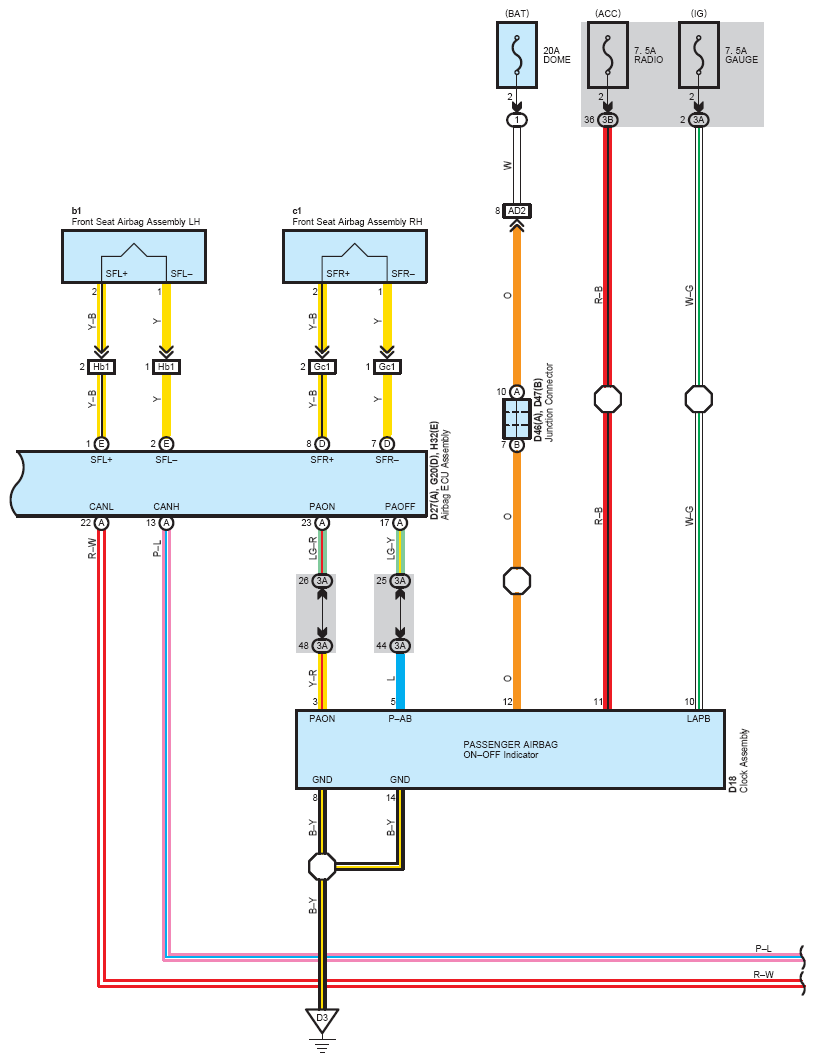

Fig 4: SRS (4 Of 5)

G12192092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

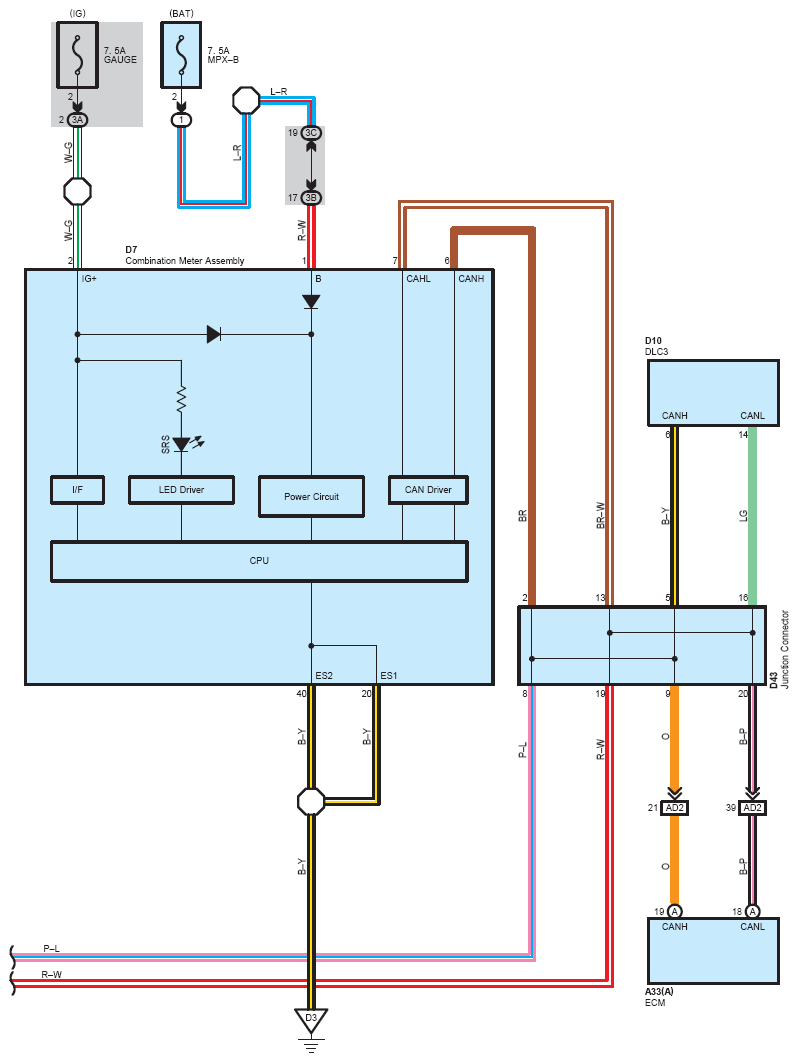

Fig 5: SRS (5 Of 5)

G12192093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
