OEM System Circuits: Ignition: Connectors

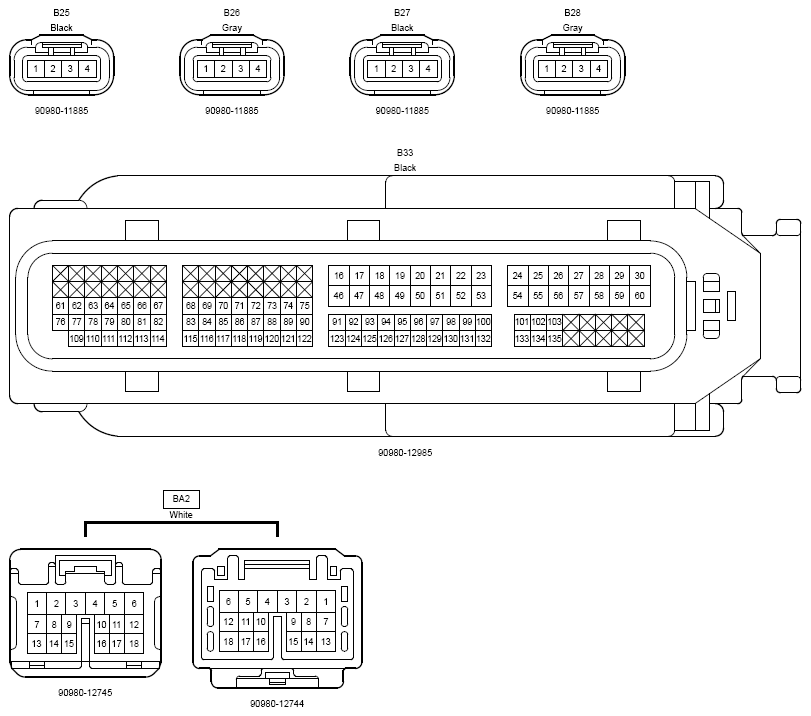

Fig 1: Connectors
G12199599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
